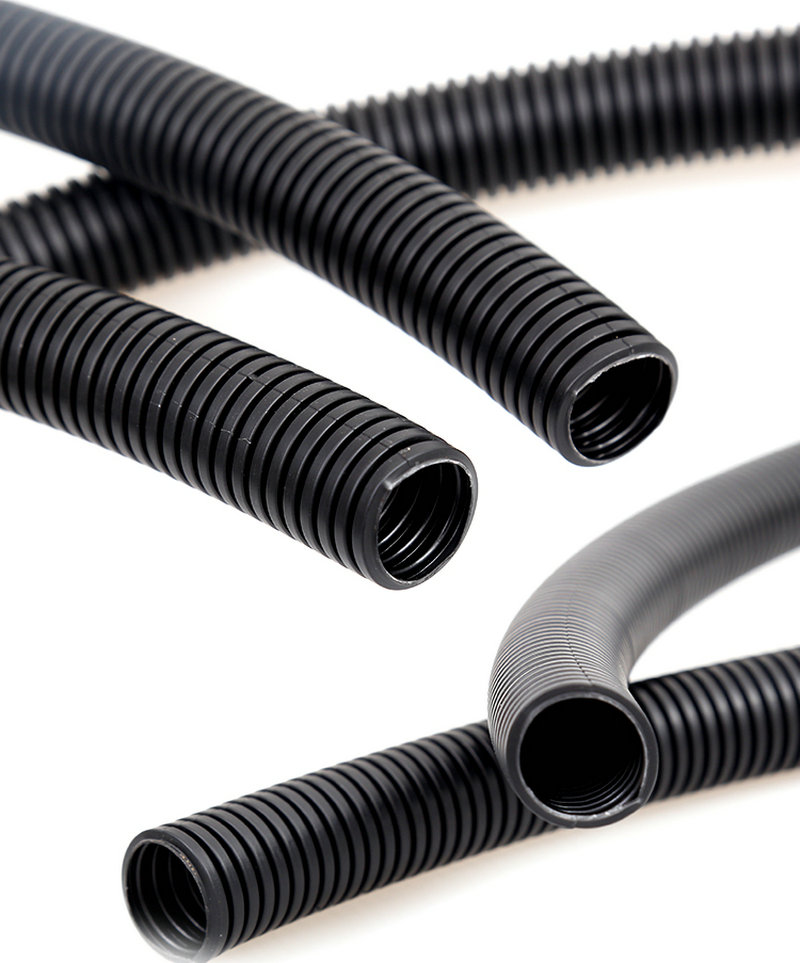

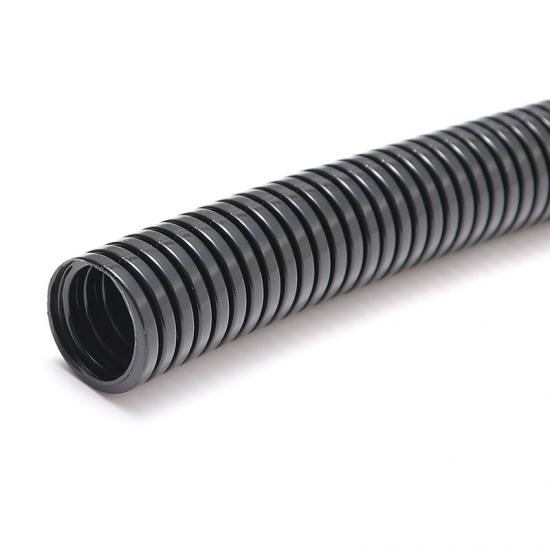

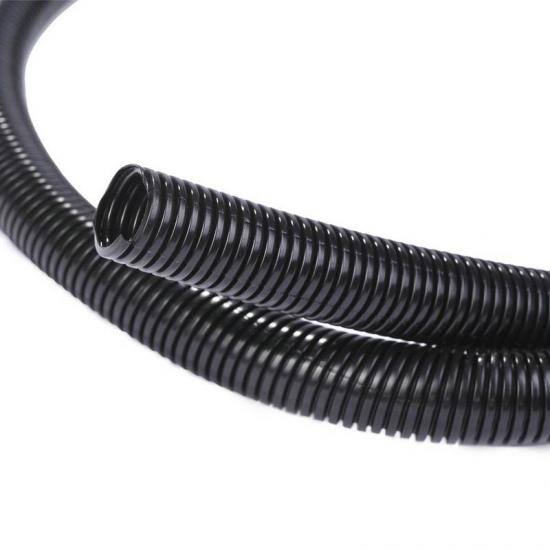

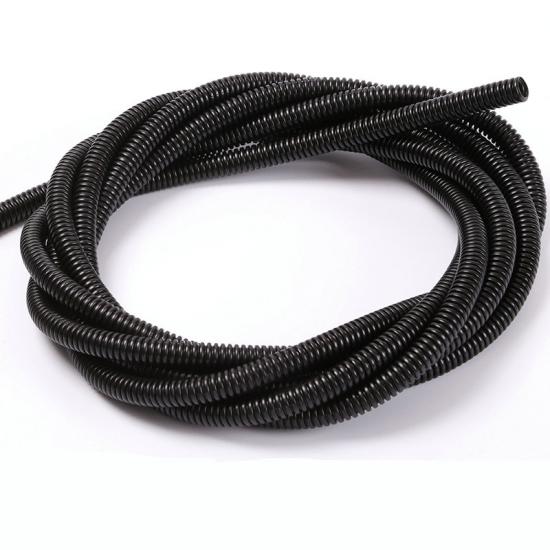

Flexible Polyethylene Non Split Corrugated Wire Harness Loom Tubing
Polyethylene corrugated tubing offers an attractive and economical way to organize unruly wires while providing a durable shield against environmental wear.
PE corrugated tubing is suitable for use in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.
Wire loom tubing ideal for creating wire harnesses as well as protecting, hiding, and managing cables in a wide array of applications
What's Special about Corrugated Loom Tubing?
- Cost-Effective Protection: Provides a budget-friendly alternative for cable management, offering dependable coverage against bumps, scrapes, and light surface cuts.
- Lightweight & Flexible: The premium PE construction ensures the tubing is exceptionally easy to handle and route through complex paths without adding unnecessary weight.
- Reliable Impact Resistance: Designed to maintain its integrity across various conditions, protecting internal components from accidental impacts and light foot traffic.
- Dependable Thermal Performance: Formulated to function consistently within standard temperature ranges, making it suitable for a wide variety of indoor and sheltered outdoor environments.
- Chemical & Moisture Resistance: Naturally resistant to moisture and many common household or industrial chemicals, preventing degradation in humid settings.
- Precision Manufacturing: Produced with strict tolerance controls to ensure a consistent fit and seamless integration with standard hardware and fittings.
- Eco-Friendly & Safe: Fully RoHS and REACH compliant, and halogen-free, ensuring safety for use in sensitive environments.
Physical Properties
| Physical Properties | Details |
| Material | Polyethylene |
| Style | Non Split |
| Working Temperature | -40℃~+80℃ |
| Melt Point | 135℃(+);10℃ |
| Heat aging resistance resistance | No embrittlement and chalking after test at 150℃ for 240h per QC/T29106 |
| Flammability | UL94 V2 |
| Rohs Compliant | Yes |
| Standard Color | Black |
Specification
| Part No | I.D (mm) | O.D (mm) | Wall Thickness(T) (mm) | Packing Length (m/spool) |
| WL-PE-N-4.5*7.0-BK | 4.5±0.5 | 7.0±0.5 | 0.25±0.1 | 500 |
| WL-PE-N-5.5*7.5-BK | 5.5±0.5 | 7.5±0.5 | 0.25±0.1 | 500 |
| WL-PE-N-6.5*9.2-BK | 6.5±0.5 | 9.2±0.5 | 0.25±0.1 | 500 |
| WLPE-N-7.5*10.5-BK | 7.5±0.5 | 10.5±0.5 | 0.25±0.1 | 400 |
| WL-PE-N-8.5*11.5-BK | 8.5±0.5 | 11.5±0.5 | 0.25±0.1 | 400 |
| WL-PE-N-10.0*13.0-BK | 10.0±0.5 | 13.0±0.5 | 0.25±0.1 | 300 |
| WL-PE-N-12.0*15.8-BK | 12.0±0.5 | 15.8±0.5 | 0.30±0.1 | 200 |
| WL-PE-N-13.0*17.4-BK | 13.0±0.5 | 17.4±0.5 | 0.30±0.1 | 200 |
| WL-PE-N-14.5*18.5-BK | 14.5±0.5 | 18.5±0.5 | 0.30±0.1 | 200 |
| WL-PE-N-16.0*20.0-BK | 16.0±0.5 | 20.0±0.5 | 0.30±0.1 | 150 |
| WL-PE-N-17.0*21.2-BK | 17.0±0.5 | 21.2±0.5 | 0.30±0.1 | 150 |
| WL-PE-N-19.0*23.5-BK | 19.0±0.5 | 23.5±0.5 | 0.30±0.1 | 100 |
| WL-PE-N-20.5*25.0-BK | 20.5±0.5 | 25.0±0.5 | 0.35±0.1 | 100 |
| WL-PE-N-21.0*25.8-BK | 21.0±0.5 | 25.8±0.5 | 0.35±0.1 | 100 |
| WL-PE-N-23.0*28.0-BK | 23.0±0.5 | 28.0±0.5 | 0.35±0.1 | 100 |
| WL-PE-N-25.0*31.5-BK | 25.0±0.5 | 31.5±0.5 | 0.35±0.1 | 50 |
| WL-PE-N-29.0*34.5-BK | 29.0±0.5 | 34.5±0.5 | 0.40±0.1 | 50 |
| WL-PE-N-32.0*38.0-BK | 32.0±0.5 | 38.0±0.5 | 0.40±0.1 | 50 |
| WL-PE-N-36.0*42.5-BK | 36.0±0.5 | 42.5±0.5 | 0.40±0.1 | 40 |
| WL-PE-N-42.0*48.0-BK | 42.0±0.5 | 48.0±0.5 | 0.45±0.1 | 30 |
| WL-PE-N-48.0*54.5-BK | 48.0±0.5 | 54.5±0.5 | 0.45±0.1 | 30 |
Application
Wire loom is used to protect electrical wiring in industry,automotive,home & office,keep cables or wires neat and in orders.
- Office & Home Management: Perfect for bundling computer cables, home theater systems, and organizing desktop wire clutter for a professional look.
- Light Industrial Use: Ideal for control panels and stationary machinery where extreme heat or aggressive chemicals are not present.
- Commercial Appliances: Used for protecting internal wiring in vending machines, kitchen equipment, and HVAC units.
- Entertainment & Event Setup: Provides a tidy and protected solution for temporary power and data lines at exhibitions, concerts, or studios.
- Automotive Interiors: Suitable for cabin-side wiring, dashboard electronics, or trunk lighting where components are shielded from direct engine heat.
