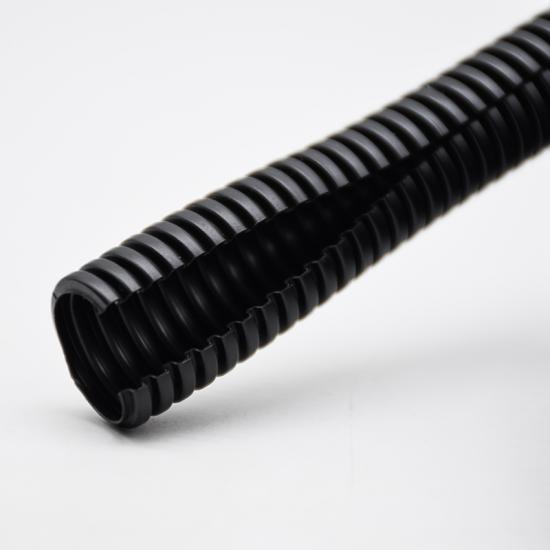

Flame Retardant Nylon Split Wire Loom Tubing

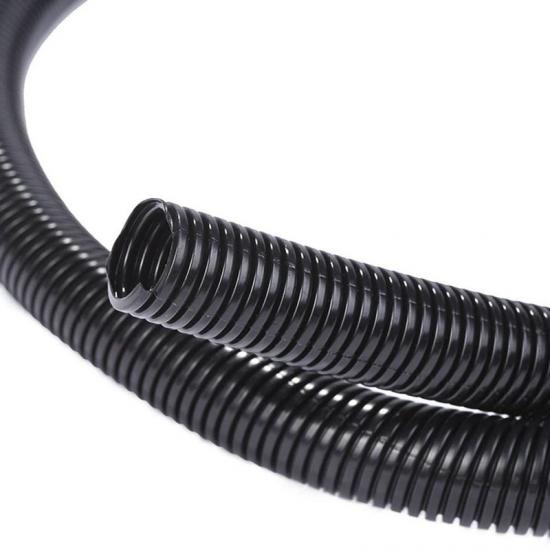

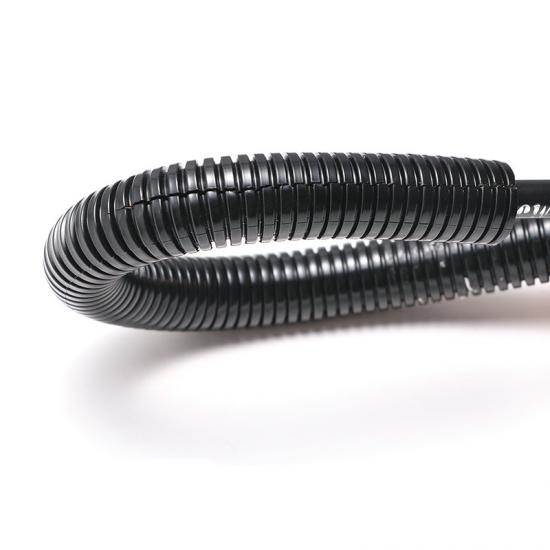

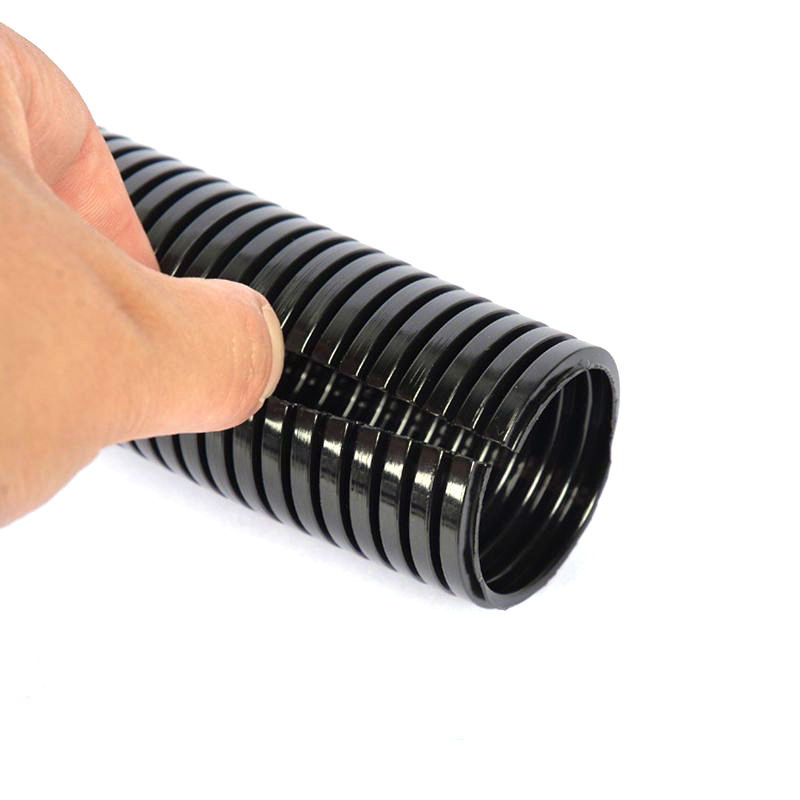

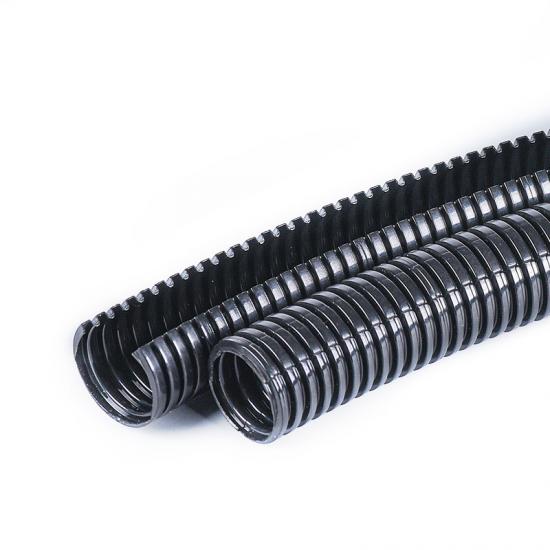

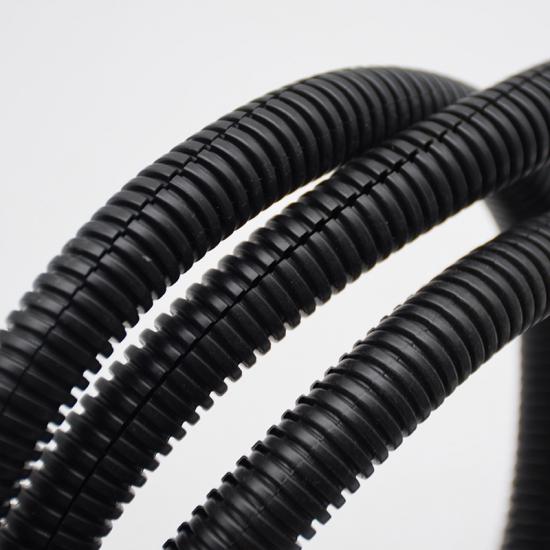

E-FLEX® Nylon Wire Loom is an automotive-grade, split convoluted tubing engineered for high-temperature environments. Featuring a convenient longitudinal slit, this tubing allows for effortless installation and removal over existing wire harnesses and hoses without the need for disconnection. Made from impact-modified Polyamide 6 (PA6), it provides a robust, lightweight, and flexible shield that excels in the extreme conditions of vehicle engine bays and industrial machinery.
Split wire loom widely used to product cable and wire harness in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.
What's Special about Split Loom Tubing?

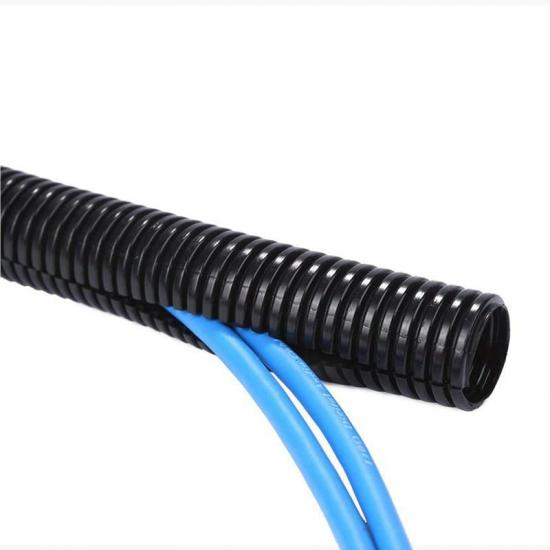

- Convenient Split Design: The integrated slit allows for rapid retrofitting over pre-installed cables and hoses, significantly reducing labor time and simplifying maintenance.
- Superior Thermal Stability: Designed to operate reliably in extreme heat, maintaining its structural integrity without embrittlement or chalking in high-temperature zones.
- Enhanced Impact Resistance: Specially modified to withstand high-energy impacts and vibrations, ensuring reliable protection even in freezing conditions or rugged environments.
- Flame Retardancy & Safety: Features self-extinguishing properties compliant with global automotive fire safety standards, minimizing risks in electrical systems.
- Chemical & UV Resistance: Highly resistant to automotive fuels, oils, and harsh chemicals, while providing long-lasting protection against UV-induced degradation.
- Precision Manufacturing: Produced with high dimensional accuracy to ensure a consistent fit and reliable performance across all specifications.
- Eco-Friendly: Fully compliant with international environmental standards, being both halogen-free and sustainable.
Physical Properties
Physical Properties
Details
Material
PA6(Polyamide6)
Style
Split
Working Temperature
-40℃~+125℃
Melt Point
240℃(+)-10℃
Low temperature resistance
A hammer of 300g free falls to impact the sample from 100mm. No crack and breakage after test at -40℃ for 4hr per GBT29106
Heat aging resistance
No embrittlement and chalking after test at 125℃ for 240h per QC/T29106
Flammability
Self-extinguishing per FMV SS302,UL94 V2
Flexible
Excellent
Abrasion Resistance
Excellent
Chemical Resistance
Excellent
Rohs Compliant
Yes
Reach Compliant
Yes
UV Resistance
Yes
Halogen Free
Yes
Standard Color
Black
Specification
Part No
I.D (mm)
O.D (mm)
Wall Thickness(T) (mm)
Packing Length (m/spool)
WL-PA-S-4.8*7.0-BK
4.8±0.3
7.0±0.3
0.20±0.05
200
WL-PA-S-5.5*8.5-BK
5.5±0.3
8.5±0.3
0.25±0.05
200
WL-PA-S-7.0*10.0-BK
7.0±0.3
10.0±0.3
0.27±0.05
200
WL-PA-S-8.5*11.0-BK
8.5±0.3
11.0±0.3
0.30±0.05
200
WL-PA-S-10.0*13.0-BK
10.0±0.3
13.0±0.3
0.30±0.06
100
WL-PA-S-12.0*15.8-BK
12.0±0.4
15.8±0.4
0.32±0.05
100
WL-PA-S-14.5*18.5-BK
14.5±0.4
18.5±0.4
0.32±0.05
100
WL-PA-S-17.0*21.2-BK
17.0±0.4
21.2±0.4
0.32±0.05
100
WL-PA-S-21.0*25.0-BK
21.0±0.4
25.0±0.4
0.35±0.05
100
WL-PA-S-23.0*28.5-BK
23.0±0.4
28.5±0.4
0.35±0.05
50
WL-PA-S-29.0*34.5-BK
29.0±0.4
34.5±0.4
0.40±0.05
50
WL-PA-S-36.0*42.5-BK
36.0±0.4
42.5±0.4
0.45±0.05
25
WL-PA-S-48.0*54.5-BK
48.0±0.4
54.5±0.4
0.50±0.05
25
Application
Split flexible conduit offers long-lasting protection and a professional look to your wires and cables. Widely used in vehicles, home offices, small equipment, and industries related to manufacturing, hydraulics and railway.
- Automotive Aftermarket & Repair: Ideal for protecting or repairing existing engine harnesses where disconnecting cables is impractical.
- Custom Vehicle Builds: Perfect for organized and protected wire routing in performance cars, EVs, and specialty vehicles.
- Industrial Maintenance: Used in factories to bundle and protect hydraulic hoses or electrical lines on active machinery.
- Marine & Outdoor Power: Provides a durable, easy-to-install barrier for wiring exposed to sunlight and corrosive environments.
- Home & Office Management: A high-end solution for organizing heavy-duty cable bundles in server rooms or workshops.
