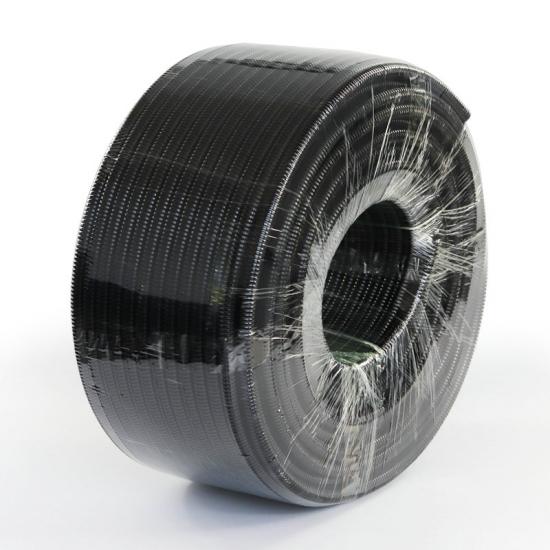

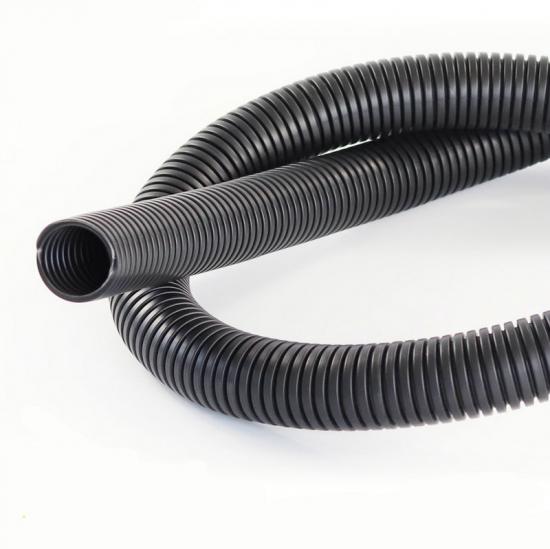

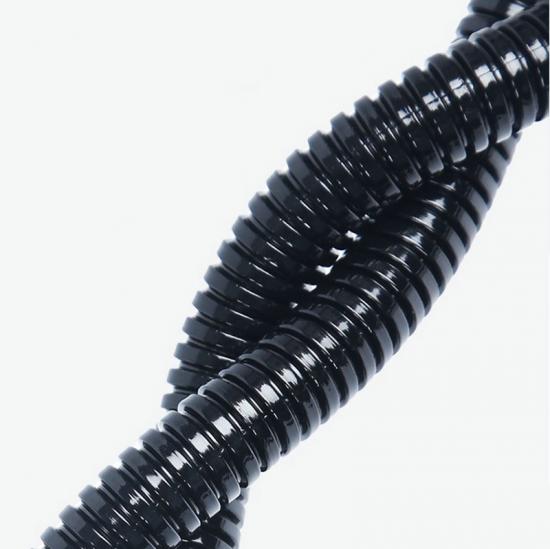

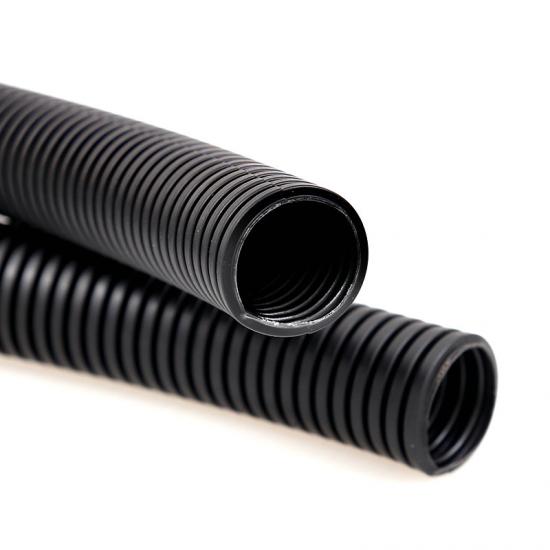

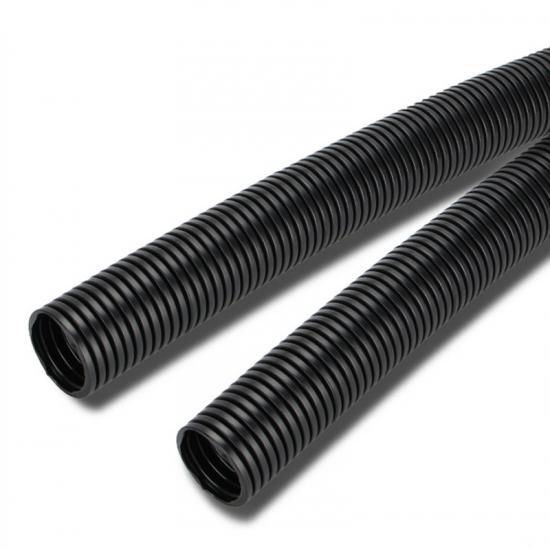

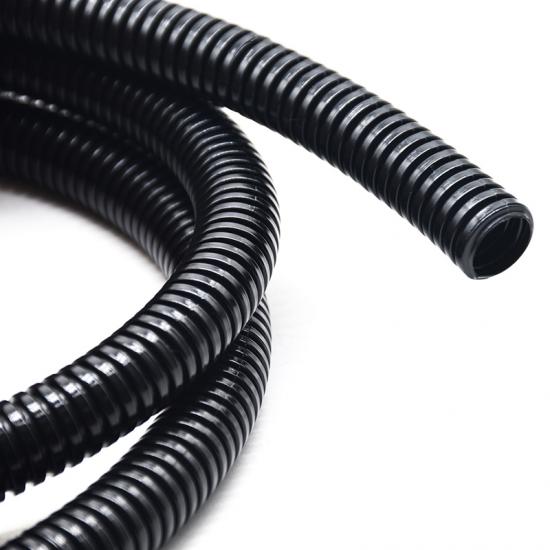

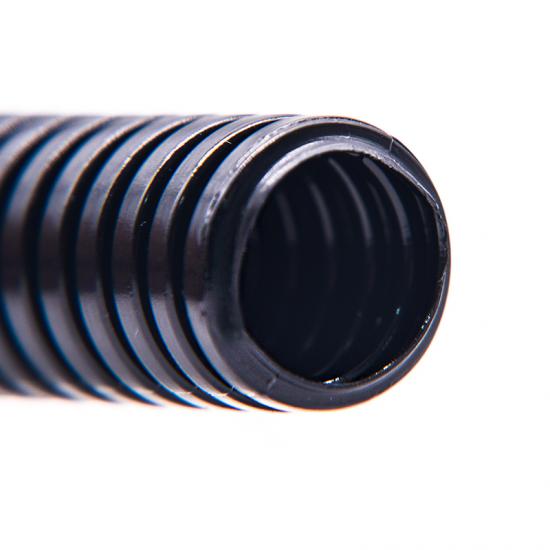

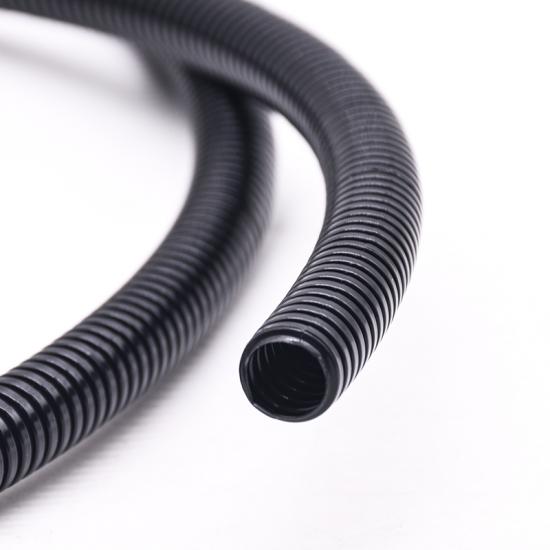

Flexible Nylon Corrugated Wire Loom Tubing
E-FLEX® Nylon Flexible Conduit is lightweight,very flexible and provides abrasion protection, can withstand heavy loads,resistant to gasoline, oil and other chemicals allows this cable conduit to work in extreme environments found around engine bays, manufacturing machinery and hydraulic systems.
Nylon flexible conduit pipe widely used to product cable and wire harness in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.
What's Special about Nylon Wire Loom?
- Superior Thermal Stability: Operates reliably across a broad temperature range. It demonstrates exceptional heat aging resistance without embrittlement or chalking, ensuring long-term durability in high-heat zones.
- Enhanced Impact Resistance: Specially modified to withstand high-energy impacts, ensuring the loom remains intact and protective even in extreme cold or high-vibration settings.
- Flame Retardancy & Safety: Features advanced self-extinguishing properties that meet rigorous automotive safety standards, significantly reducing fire risks during electrical faults.
- Chemical & UV Resistance: Excellent resistance to common automotive fluids, oils, and UV exposure, making it ideal for both engine-bay and under-chassis applications.
- Precision Engineering: Manufactured with tight tolerance controls to ensure seamless compatibility and a secure fit with standard connectors and mounting hardware.
- Environmental Compliance: Fully compliant with international environmental and safety regulations, being both halogen-free and eco-friendly.
Physical Properties
Physical Properties
Details
Material
PA6(Polyamide6)
Style
Non Split
Working Temperature
-40℃~+125℃
Melt Point
240℃+(-)10℃
Heat aging resistance
No embrittlement and chalking after test at 150℃ for 240h per QC/T29106
Flammability
UL94 V2
Rohs Compliant
Yes
Standard Color
Black
Specification
Part No
I.D (mm)
O.D (mm)
Wall Thickness(T) (mm)
Packing Length (m/spool)
WL-PA-N-4.5*7.0-BK
4.5±0.5
7.0±0.5
0.25±0.1
500
WL-PA-N-5.5*7.5-BK
5.5±0.5
7.5±0.5
0.25±0.1
500
WL-PA-N-6.5*9.2-BK
6.5±0.5
9.2±0.5
0.25±0.1
500
WL-PA-N-7.5*10.5-BK
7.5±0.5
10.5±0.5
0.25±0.1
400
WL-PA-N-8.5*11.5-BK
8.5±0.5
11.5±0.5
0.25±0.1
400
WL-PA-N-10.0*13.0-BK
10.0±0.5
13.0±0.5
0.25±0.1
300
WL-PA-N-12.0*15.8-BK
12.0±0.5
15.8±0.5
0.30±0.1
200
WL-PA-N-13.0*17.4-BK
13.0±0.5
17.4±0.5
0.30±0.1
200
WL-PA-N-14.5*18.5-BK
14.5±0.5
18.5±0.5
0.30±0.1
200
WL-PA-N-16.0*20.0-BK
16.0±0.5
20.0±0.5
0.30±0.1
150
WL-PA-N-17.0*21.2-BK
17.0±0.5
21.2±0.5
0.30±0.1
150
WL-PA-N-19.0*23.5-BK
19.0±0.5
23.5±0.5
0.30±0.1
100
WL-PA-N-20.5*25.0-BK
20.5±0.5
25.0±0.5
0.35±0.1
100
WL-PA-N-21.0*25.8-BK
21.0±0.5
25.8±0.5
0.35±0.1
100
WL-PA-N-23.0*28.0-BK
23.0±0.5
28.0±0.5
0.35±0.1
100
WL-PA-N-25.0*31.5-BK
25.0±0.5
31.5±0.5
0.35±0.1
50
WL-PA-N-29.0*34.5-BK
29.0±0.5
34.5±0.5
0.40±0.1
50
WL-PA-N-32.0*38.0-BK
32.0±0.5
38.0±0.5
0.40±0.1
50
WL-PA-N-36.0*42.5-BK
36.0±0.5
42.5±0.5
0.40±0.1
40
WL-PA-N-42.0*48.0-BK
42.0±0.5
48.0±0.5
0.45±0.1
30
WL-PA-N-48.0*54.5-BK
48.0±0.5
54.5±0.5
0.45±0.1
30
Application
Polyamide flexible conduit offers long-lasting protection and a professional look to your wires and cables. Widely used in vehicles, home offices, small equipment, and industries related to manufacturing, hydraulics and railway.
- Automotive Industry: Engine compartment harnesses, sensor wiring, and fluid delivery line protection for passenger and commercial vehicles.
- Electric Vehicles (EV): External high-voltage cable routing requiring superior impact and thermal protection.
- Heavy Machinery: Construction, agricultural, and mining equipment where vibration and abrasion resistance are critical.
- Industrial Automation: Cable management in robotic cells and CNC machinery exposed to cutting oils and coolants.
- Outdoor Power Facilities: Ideal for solar and wind energy systems due to its UV resistance and halogen-free safety profile.
