Nylon Hose Sleeve

1.0mm T Fireproof Nylon Hydraulic Hose Burst Protective Sleeve


Nylon hose sleeve is made of sturdy nylon multifilament,thick and strong strands with a tight woven construction give a high degree of burst resistance while still maintaining decent flexibility. Nylon sleeve is highly resistant to abrasion and tears, cuts, heat, and UV/Ozone deterioration,widely used to protect hydraulic hoses and prevent injuries due to leaks emitting high- pressure liquid jets.



  • Item no.:

    HPS-NY-S
  • Min order:

    500m
  • Material:

    Nylon multifilament
  • Working Temperature:

    -40℃ to 125℃
  • Melt Point:

    220+(-)10℃
  • Flammability:

    FMVSS 302,MSHA
  • Standard Color:

    Black
  • Certification:

    ROHS,MSHA
  • Cutting Tool:

    Scissor
  • Size:

    20mm~176mm flat width
  • Product Details

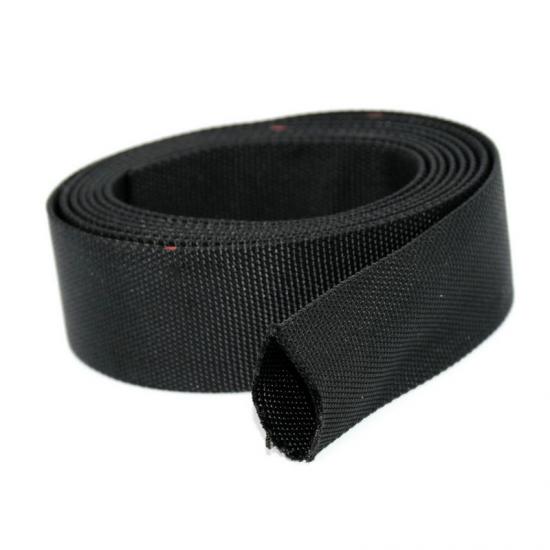

1.0mm T Fireproof Nylon Hydraulic Hose Burst Protective Sleeve

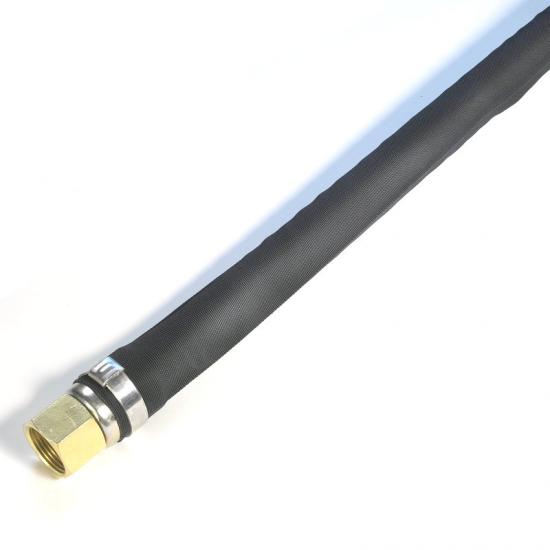

A Nylon Hydraulic Hose Burst Protective Sleeve is a flexible, high-strength sleeve designed to contain hydraulic fluid in the event of a hose rupture. Made from durable nylon fibers, it wraps around hydraulic hoses to:

Prevent high-pressure fluid spray (minimizing injury risks).

Reduce equipment damage from sudden leaks.

Extend hose lifespan by shielding against abrasion and external impacts.

Commonly used in construction, mining, agriculture, and industrial machinery, these sleeves meet safety standards like ISO 3457 and SAE J343.



What's special about hydraulic hose sleeve ?


1. Burst Containment


Safety Priority: Contains pressurized fluid leaks, preventing hazardous sprays.
Pressure Resistance: Withstands pressures up to 10,000 PSI (varies by design).

2. Durable Nylon Construction


Abrasion-Resistant: Protects hoses from wear caused by friction or debris.
Chemical Resistance: Resists oils, fuels, and hydraulic fluids.
Temperature Tolerance: Performs in -40°C to +125°C  environments.

3. Lightweight & Flexible


Easy to install over existing hoses without restricting movement.
Maintains flexibility even in tight spaces or dynamic applications.



Physical Properties


Material Nylon multifilament
Working Temperature -40~ +125
Melt Point 220+(-)10
MSHA Compliance MSHA IC293/01
Blasting Resistance Conform to ISO3457
Abrasion Resistance Conform to ISO 6945
Flammability FMVSS 302
Anti-leakage Conform to SAE J343
UV Resistant Conform to BS EN13758-1
Standard Color Black
Cutting Tool Hot Knife,Scissor

Specification


Part No
I.D
(mm)
Flat Width
(mm)
Thickness
(mm)
Packing Length
(m/spool)
HPS-NY-S-017-BK-T10 17  29  1.0  50
HPS-NY-S-020-BK-T10 20  34  1.0  50
HPS-NY-S-023-BK-T10 23  39  1.0  50
HPS-NY-S-025-BK-T10 25  42  1.0   50
HPS-NY-S-027-BK-T10 27  45  1.0   50
HPS-NY-S-031-BK-T10 31  51  1.0  50
HPS-NY-S-033-BK-T10 33  54  1.0  50
HPS-NY-S-036-BK-T10 36  59  1.0   50
HPS-NY-S-040-BK-T10 40  65  1.0   50
HPS-NY-S-044-BK-T10 44  72  1.0   50
HPS-NY-S-047-BK-T10 47  76  1.0   50
HPS-NY-S-050-BK-T10 50  81  1.0 50
HPS-NY-S-053-BK-T10 53  86  1.0  50
HPS-NY-S-055-BK-T10 55  89  1.0   50
HPS-NY-S-060-BK-T10 60  97  1.0   50
HPS-NY-S-063-BK-T10 63  102  1.0  50
HPS-NY-S-066-BK-T10 66  106  1.0  50
HPS-NY-S-073-BK-T10 73  117  1.0  50
HPS-NY-S-078-BK-T10 78  125  1.0  50
HPS-NY-S-085-BK-T10 85  136  1.0  50
HPS-NY-S-093-BK-T10 93  149  1.0  50
HPS-NY-S-099-BK-T10 99  156  1.0  50
HPS-NY-S-106-BK-T10 106  169  1.0  50
HPS-NY-S-112-BK-T10 112  178  1.0  50
HPS-NY-S-125-BK-T10 125  199  1.0  50
