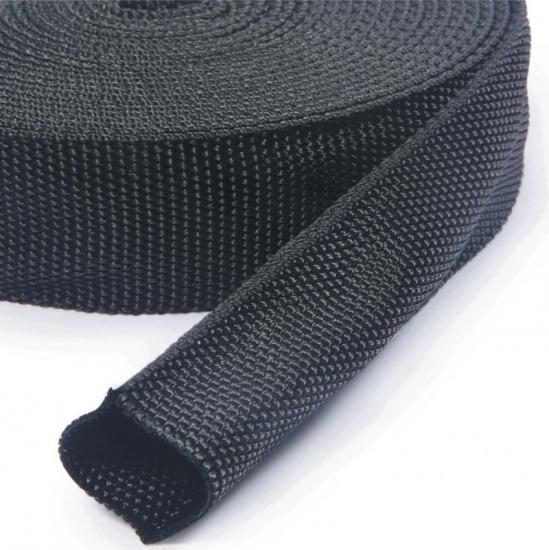

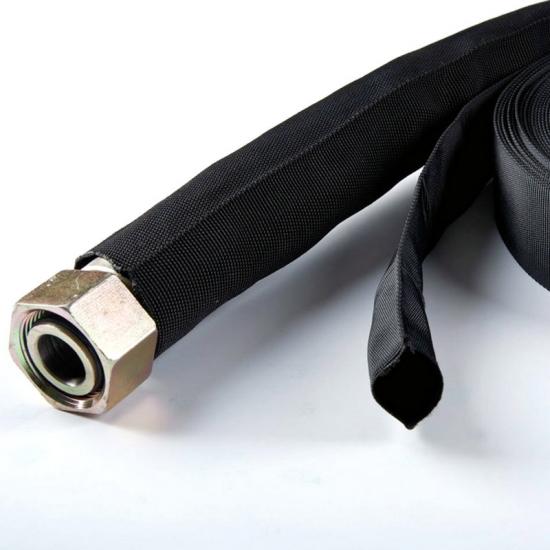

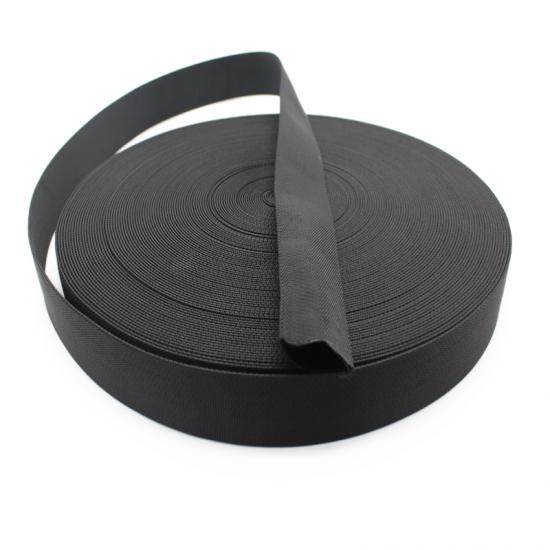

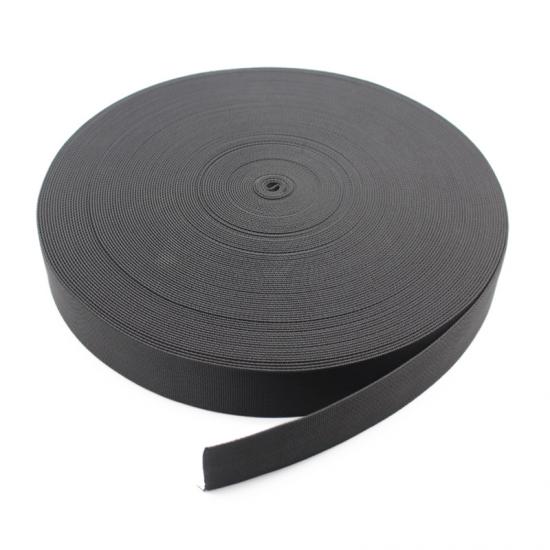

0.8mm Explosion Proof Polyester Hydraulic Hose Protection Sleeve
A polyester hydraulic hose protection sleeve is a braided or woven sleeve made from high-tenacity polyester fibers, designed to shield hydraulic hoses from:
Abrasion (e.g., rubbing against machinery or rough surfaces).
External impacts (e.g., flying debris or accidental strikes).
UV radiation, oils, and mild chemicals.
Hose protective sleeve designed to protect hydraulic hoses and provide limited burst and containment protection to your most valuable asset, reduce hose damage caused by abrasion.
What's special about Hose Protector Sleeve ?
1. Superior Abrasion Resistance
Tightly Woven Polyester: Withstands friction from constant movement (e.g., excavator arms, conveyor systems).
Longer Hose Lifespan: Reduces surface wear by up to 70% compared to unprotected hoses.
2. Lightweight & Flexible
Easy Installation: Slides over existing hoses without tools.
Zero Mobility Restrictions: Maintains hose flexibility in dynamic applications.
3. Environmental Protection
UV-Resistant: Prevents sun degradation in outdoor equipment.
Oil & Moisture Repellent: Resists hydraulic fluids, grease, and water.
Physical Properties
Material
Polyester
Working Temperature
-40℃~ +150℃
Melt Point
250+(-)10℃
MSHA Compliance
MSHA IC293/01
Blasting Resistance
Conform to ISO3457
Abrasion Resistance
Conform to ISO 6945
Flammability
FMVSS 302
Anti-leakage
Conform to SAE J343
UV Resistant
Conform to BS EN13758-1
Standard Color
Black
Cutting Tool
Hot Knife,Scissor
Specification
| Part No | I.D (mm) | Flat Width (mm) | Thickness (mm) | Packing Length (meters) |
| HPS-PES-S-017-BK-T8 | 17 | 29 | 0.8±0.1 | 50 |
| HPS-PES-S-020-BK-T8 | 20 | 34 | 0.8±0.1 | 50 |
| HPS-PES-S-023-BK-T8 | 23 | 39 | 0.8±0.1 | 50 |
| HPS-PES-S-025-BK-T8 | 25 | 42 | 0.8±0.1 | 50 |
| HPS-PES-S-027-BK-T8 | 27 | 45 | 0.8±0.1 | 50 |
| HPS-PES-S-031-BK-T8 | 31 | 51 | 0.8±0.1 | 50 |
| HPS-PES-S-033-BK-T8 | 33 | 54 | 0.8±0.1 | 50 |
| HPS-PES-S-036-BK-T8 | 36 | 59 | 0.8±0.1 | 50 |
| HPS-PES-S-040-BK-T8 | 40 | 65 | 0.8±0.1 | 50 |
| HPS-PES-S-044-BK-T8 | 44 | 72 | 0.8±0.1 | 50 |
| HPS-PES-S-047-BK-T8 | 47 | 76 | 0.8±0.1 | 50 |
| HPS-PES-S-050-BK-T8 | 50 | 81 | 0.8±0.1 | 50 |
| HPS-PES-S-053-BK-T8 | 53 | 86 | 0.8±0.1 | 50 |
| HPS-PES-S-055-BK-T8 | 55 | 89 | 0.8±0.1 | 50 |
| HPS-PES-S-060-BK-T8 | 60 | 97 | 0.8±0.1 | 50 |
| HPS-PES-S-063-BK-T8 | 63 | 102 | 0.8±0.1 | 50 |
| HPS-PES-S-066-BK-T8 | 66 | 106 | 0.8±0.1 | 50 |
| HPS-PES-S-073-BK-T8 | 73 | 117 | 0.8±0.1 | 50 |
| HPS-PES-S-078-BK-T8 | 78 | 125 | 0.8±0.1 | 50 |
| HPS-PES-S-085-BK-T8 | 85 | 136 | 0.8±0.1 | 50 |
| HPS-PES-S-093-BK-T8 | 93 | 149 | 0.8±0.1 | 50 |
| HPS-PES-S-099-BK-T8 | 99 | 156 | 0.8±0.1 | 50 |
| HPS-PES-S-106-BK-T8 | 106 | 169 | 0.8±0.1 | 50 |
| HPS-PES-S-112-BK-T8 | 112 | 178 | 0.8±0.1 | 50 |
| HPS-PES-S-125-BK-T8 | 125 | 190 | 0.8±0.1 | 50 |
Application
Construction & Heavy Equipment: Excavators, cranes, loaders.
Agriculture: Tractors, harvesters, irrigation systems.
Manufacturing: Hydraulic presses, robotic arms, assembly lines.
Material Handling: Forklifts, conveyor belts, logging equipment.
