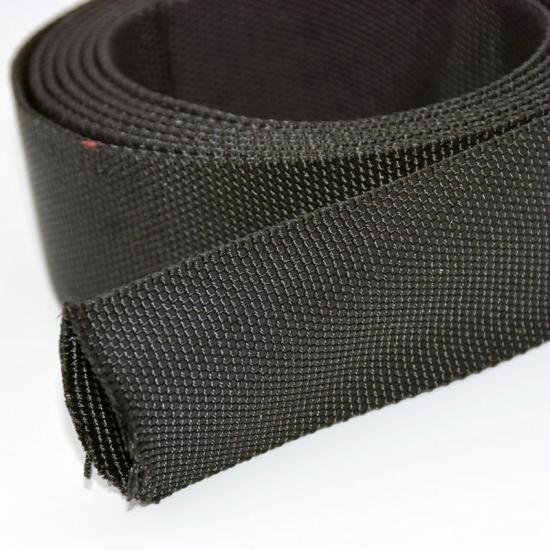

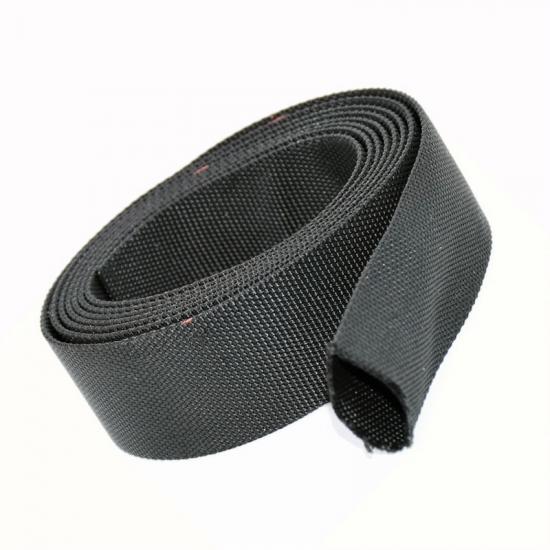

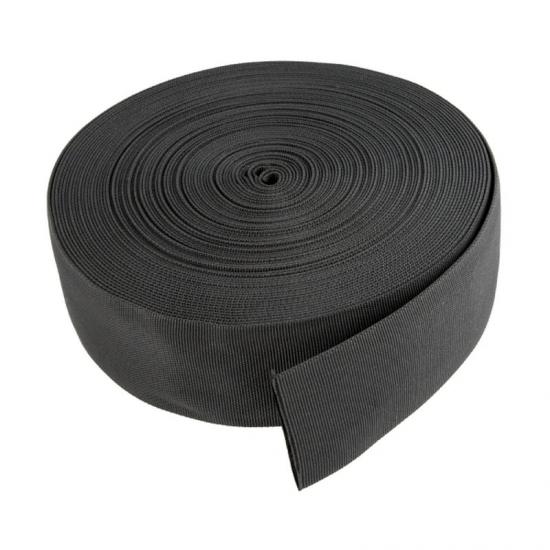

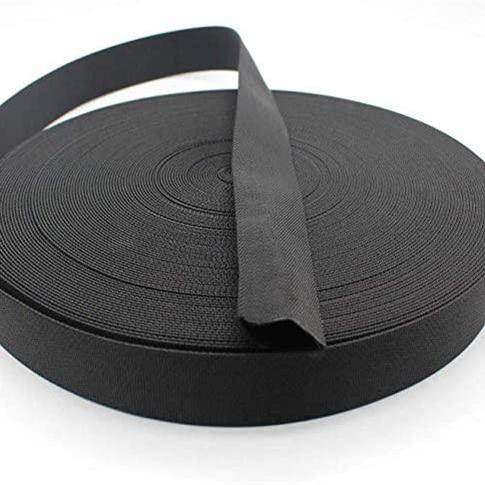

0.8mm T Nylon Hydraulic Hose Protection Sleeve
Nylon hydraulic hose sleeve made of nylon multifilament,the tight woven construction sleeve are self-renewing, abrasion-resistant that meets ISO 6945 abrasion standards and also has MSHA IC 171/1 flame resistance approval.
Hose protector sleeve designed to protect hydraulic hoses and provide limited burst and containment protection to your most valuable asset, reduce hose damage caused by abrasion.
What's special about Nylon Protective Sleeve ?
1.Explosion proof,anti-corrosion
3.Extremely flexible and durable
4.Superior abrasion resistance
5.MSHA flame resistance
Physical Properties
Material
Nylon multifilament
Working Temperature
-40℃~ +125℃
Melt Point
220+(-)10℃
MSHA Compliance
MSHA IC293/01
Blasting Resistance
Conform to ISO3457
Abrasion Resistance
Conform to ISO 6945
Flammability
FMVSS 302
Anti-leakage
Conform to SAE J343
UV Resistant
Conform to BS EN13758-1
Standard Color
Black
Cutting Tool
Hot Knife,Scissor
Specification
| Part No |
I.D
(mm)
|
Flat Width
(mm)
|
Thickness
(mm)
|
Packing Length
(m/spool)
|
| HPS-NY-S-017-BK-T8 | 17 | 29 | 0.8 | 50 |
| HPS-NY-S-020-BK-T8 | 20 | 34 | 0.8 | 50 |
| HPS-NY-S-023-BK-T8 | 23 | 39 | 0.8 | 50 |
| HPS-NY-S-025-BK-T8 | 25 | 42 | 0.8 | 50 |
| HPS-NY-S-027-BK-T8 | 27 | 45 | 0.8 | 50 |
| HPS-NY-S-031-BK-T8 | 31 | 51 | 0.8 | 50 |
| HPS-NY-S-033-BK-T8 | 33 | 54 | 0.8 | 50 |
| HPS-NY-S-036-BK-T8 | 36 | 59 | 0.8 | 50 |
| HPS-NY-S-040-BK-T8 | 40 | 65 | 0.8 | 50 |
| HPS-NY-S-044-BK-T8 | 44 | 72 | 0.8 | 50 |
| HPS-NY-S-047-BK-T8 | 47 | 76 | 0.8 | 50 |
| HPS-NY-S-050-BK-T8 | 50 | 81 | 0.8 | 50 |
| HPS-NY-S-053-BK-T8 | 53 | 86 | 0.8 | 50 |
| HPS-NY-S-055-BK-T8 | 55 | 89 | 0.8 | 50 |
| HPS-NY-S-060-BK-T8 | 60 | 97 | 0.8 | 50 |
| HPS-NY-S-063-BK-T8 | 63 | 102 | 0.8 | 50 |
| HPS-NY-S-066-BK-T8 | 66 | 106 | 0.8 | 50 |
| HPS-NY-S-073-BK-T8 | 73 | 117 | 0.8 | 50 |
| HPS-NY-S-078-BK-T8 | 78 | 125 | 0.8 | 50 |
| HPS-NY-S-085-BK-T8 | 85 | 136 | 0.8 | 50 |
| HPS-NY-S-093-BK-T8 | 93 | 149 | 0.8 | 50 |
| HPS-NY-S-099-BK-T8 | 99 | 156 | 0.8 | 50 |
| HPS-NY-S-106-BK-T8 | 106 | 169 | 0.8 | 50 |
| HPS-NY-S-112-BK-T8 | 112 | 178 | 0.8 | 50 |
| HPS-NY-S-125-BK-T8 | 125 | 199 | 0.8 | 50 |

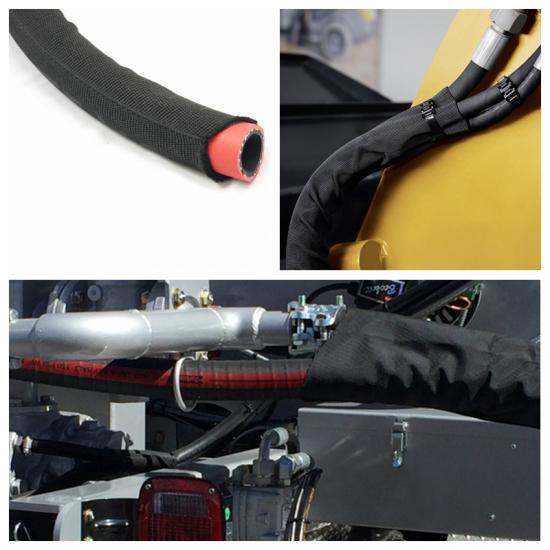

Application
Nylon hose sleeve ideal for use as a protective covering on hydraulic and industrial hose,pipe,
Protects hose from abrasion and degradation
Offers limited protection from the effects of hose bursting and pinhole occurrences
Allows bundling of hose, cable, rope, chain, wire, etc.
