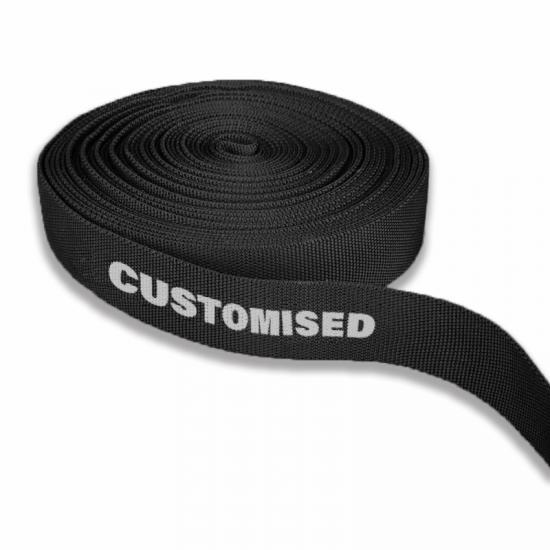

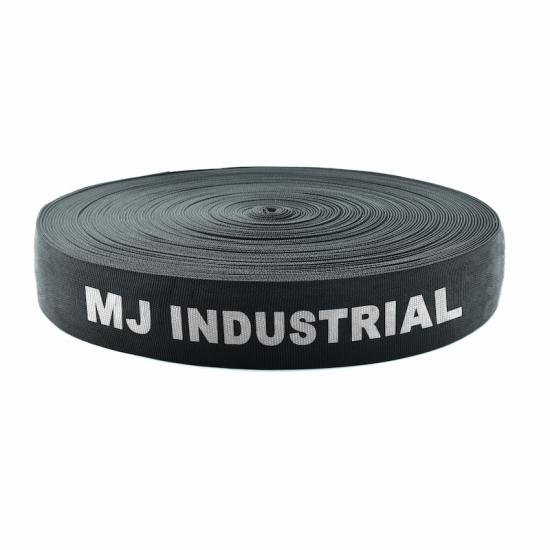

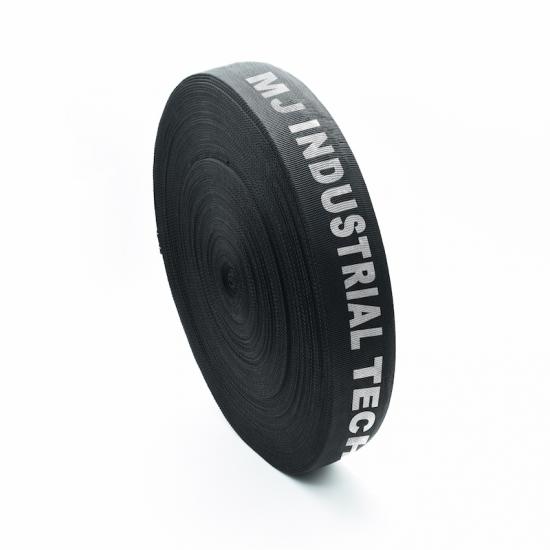

Printable Logo 1.0mm High Pressure Hose Protective Sleeve
E-FLEX® Hydraulic Hose Burst Sleeve is designed to improve safety by protecting workers and equipment from hazards caused by hose failure. It helps contain high-pressure fluid bursts, reduce hose wear, and provide reliable abrasion protection.
Made from durable materials such as nylon, polyester, E-FLEX® Hose Burst Sleeve offer excellent resistance to abrasion, UV, and harsh environments. In case of hose failure, they effectively contain fluid and minimize dangerous spray.
What's Special about Printable Logo High Pressure Hose Protective Sleeve?
- High-tenacity polyester for excellent abrasion resistance
- Enhances safety with anti-leakage protection
- UV and weather resistant for outdoor durability
- Wide temperature range (-40°C to +150°C)
- Compliant with FMVSS 302, MSHA, and ISO standards
- Ideal for hydraulic hoses, cables, and industrial applications
Physical Properties
| Item | Specification |
| Material | Polyester |
| Working Temperature | -40℃ ~ +150℃ |
| Melt Point | 250+(-)10℃ |
| MSHA Compliance | MSHA IC293/01 |
| Blasting Resistance | Conform to ISO3457 |
| Abrasion Resistance | Conform to ISO 6945 |
| Flammability | FMVSS 302 |
| Anti-leakage | Conform to SAE J343 |
| UV Resistant | Conform to BS EN13758-1 |
| Standard Color | Black |
| Cutting Tool | Hot Knife, Scissor |
Specification
| Part No | I.D (mm) | Flat Width (mm) | Thickness (mm) | Packing Length (m/spool) |
| HPS-PES-S-017-BK-T10-PRT | 17 | 30 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-020-BK-T10-PRT | 20 | 35 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-023-BK-T10-PRT | 23 | 39 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-025-BK-T10-PRT | 25 | 42 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-027-BK-T10-PRT | 27 | 46 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-031-BK-T10-PRT | 31 | 52 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-033-BK-T10-PRT | 33 | 55 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-036-BK-T10-PRT | 36 | 60 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-040-BK-T10-PRT | 40 | 66 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-044-BK-T10-PRT | 44 | 72 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-047-BK-T10-PRT | 47 | 77 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-050-BK-T10-PRT | 50 | 82 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-053-BK-T10-PRT | 53 | 86 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-056-BK-T10-PRT | 56 | 91 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-060-BK-T10-PRT | 60 | 97 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-066-BK-T10-PRT | 66 | 107 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-073-BK-T10-PRT | 73 | 118 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-078-BK-T10-PRT | 78 | 126 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-085-BK-T10-PRT | 85 | 137 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-093-BK-T10-PRT | 93 | 149 | 1.0 ± 0.1 | 50 |
| HPS-PES-S-112-BK-T10-PRT | 112 | 179 | 1.0 ± 0.1 | 50 |
Application
Printable logo high pressure hose protective sleeve is one type of the hose sleeve. The burst protection sleeve highly resistant to abrasion and tears.It is used to protect hydraulic hoses and prevent injuries due to leaks emitting high-pressure liquid jets. Burst protection sleeving is typically used with earth moving machinery and where the is high mechanical vibration.
