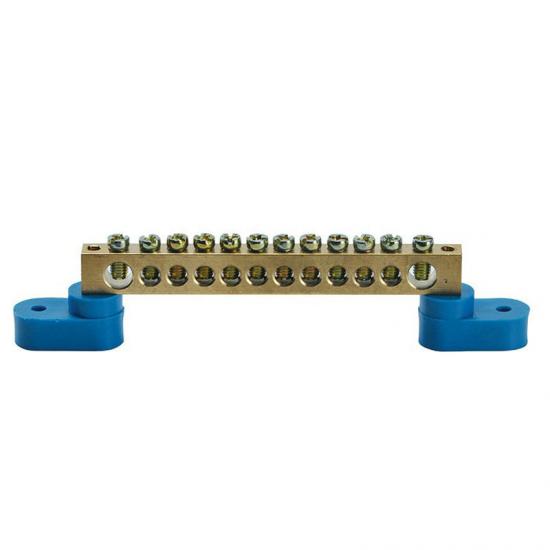

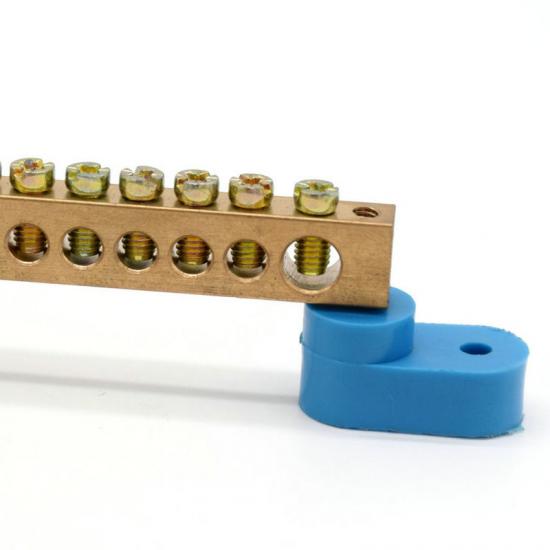

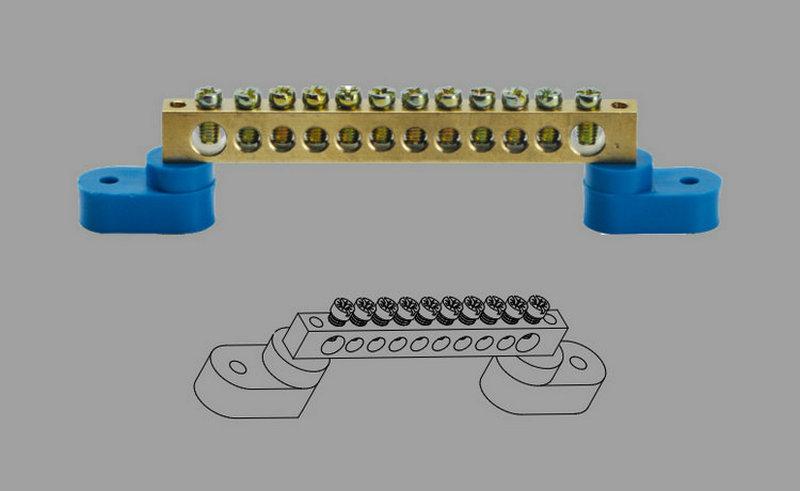

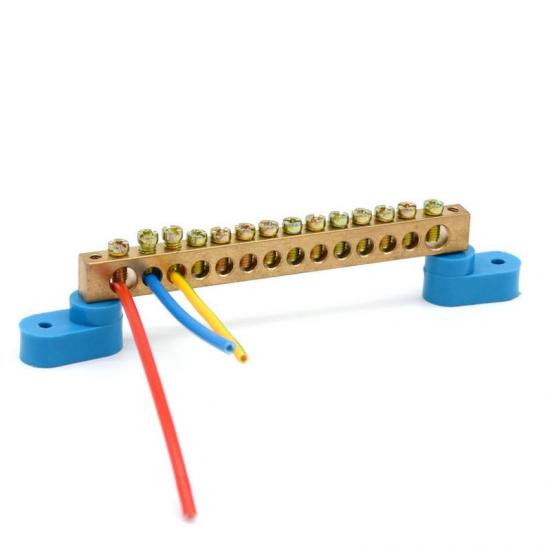

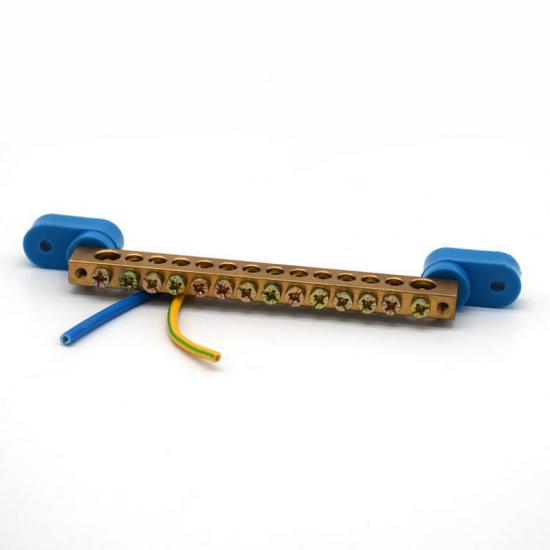

Brass Earth Terminal Connector Block
Earth connector block are of high quality brass material, these ground bars are durable and sturdy, high strength, high hardness, good wear-resistance and chemical corrosion-resistance.
Earth wire terminal block easy to wire, not easily being oxidized, and has strong capacity,widely used in power distribution cabinets, distribution boxes,mechanical equipment factories,electrical equipment factories,etc.
Data sheet
| Brass bar material | Copper |
| Holder material | PA66 |
| Conductor material | Brass |
| Screws material | Steel,zince plated |
| Working temperature |
-40℃ to 110℃ |
| Brass Size(W*H) | 6mm*9mm,8mm*12mm |
| Standard color | Blue,green,grey |

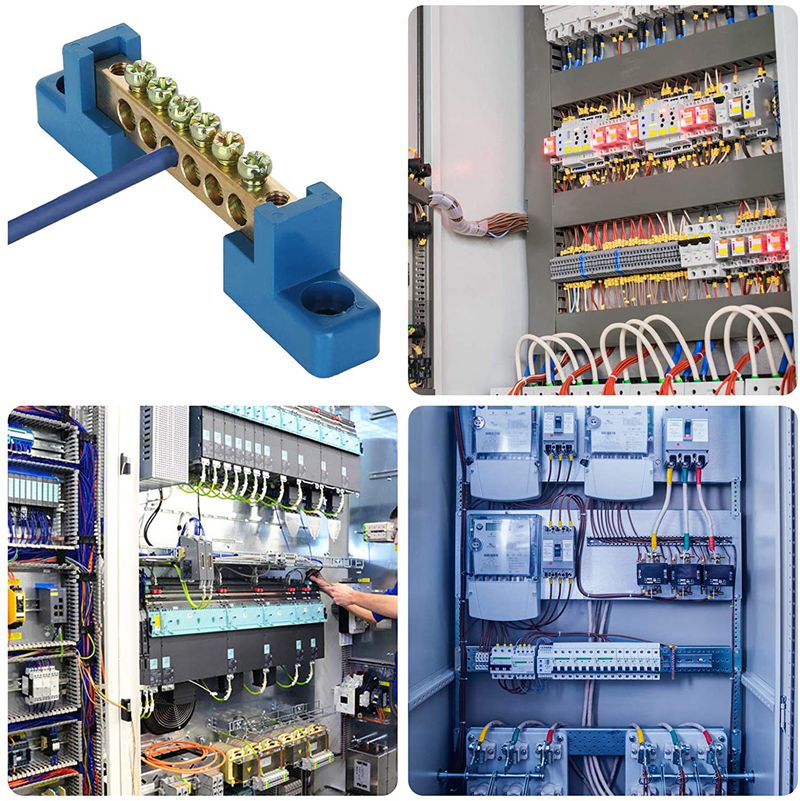

Application
Copper terminal block are widely used in automotive, automobile, electrical, electronics, telecommunication, marine and many other Industrial Sector.

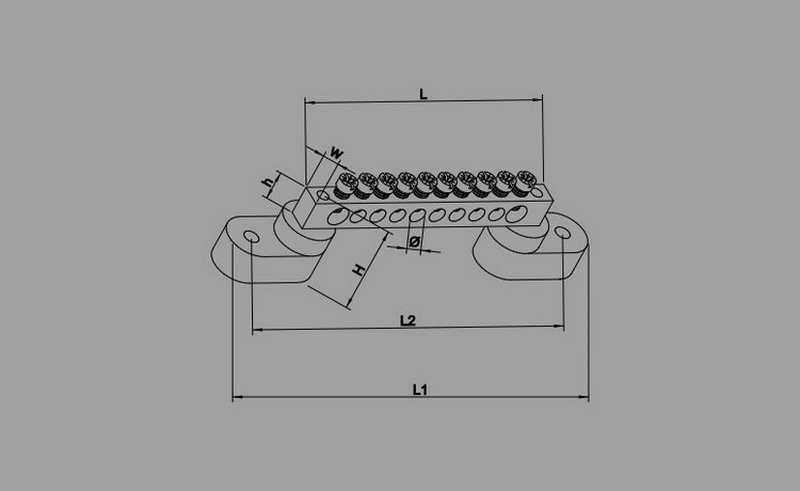

| Model | Brass w*h | Holes | L | L1 | L2 | H |
Φ |
Screw Size |
Packing |
| mm | mm | mm | mm | mm | mm | Pcs/ctn | |||
| MJ-SP028-01 | 6*9 | 4-2 | 37.2 | 73.5 | 61.4 | 24.3 | 4.5 | M4.0 | 1000 |
| MJ-SP028-02 | 6*9 | 6-2 | 49.6 | 86.0 | 74.0 | 24.3 | 4.5 | M4.0 | 1000 |
| MJ-SP028-03 | 6*9 | 8-2 | 62.0 | 98.0 | 86.5 | 24.3 | 4.5 | M4.0 | 500 |
|
MJ-SP028-04 |
6*9 |
10-2 | 74.4 | 110.5 | 99.0 | 24.3 | 4.5 |
M4.0 |
500 |
|
MJ-SP028-05 |
6*9 |
12-2 | 86.8 | 123.0 | 111.5 | 24.3 | 4.5 |
M4.0 |
500 |
|
MJ-SP028-06 |
6*9 |
14-2 | 105.5 | 143.5 | 130.5 |
24.3 |
4.5 |
M4.0 |
500 |
|
MJ-SP028-07 |
6*9 |
20-2 | 139.0 | 176.5 | 163.4 |
24.3 |
4.5 |
M4.0 |
200 |
|
MJ-SP028-08 |
6*9 |
24-2 | 164.7 | 201.5 | 188.0 |
24.3 |
4.5 |
M4.0 |
200 |
|
MJ-SP028-09 |
8*12 | 4-2 | 45.0 | 81.9 | 68.6 | 27.0 | 5.3 | M5.0 |
500 |
|
MJ-SP028-10 |
8*12 |
6-2 | 59.4 | 103.7 | 90.4 |
27.0 |
5.3 |
M5.0 |
500 |
|
MJ-SP028-11 |
8*12 |
8-2 | 73.8 | 110.7 | 97.4 |
27.0 |
5.3 |
M5.0 |
500 |
|
MJ-SP028-12 |
8*12 |
10-2 | 88.4 | 125.0 | 111.7 |
27.0 |
5.3 |
M5.3 |
500 |
|
MJ-SP028-13 |
8*12 |
12-2 | 102.3 | 139.5 | 126.0 |
27.0 |
5.3 |
M5.3 |
500 |
|
MJ-SP028-14 |
8*12 |
14-2 | 117.0 | 153.6 | 140.2 |
27.0 |
5.3 |
M5.3 |
500 |
|
MJ-SP028-18 |
8*12 |
16-2 | 131.4 | 168.3 | 155.0 |
27.0 |
5.3 |
M5.3 |
300 |
|
MJ-SP028-19 |
8*12 |
18-2 | 145.8 | 182.7 | 169.4 |
27.0 |
5.3 |
M5.3 |
300 |
|
MJ-SP028-20 |
8*12 |
20-2 | 160.2 | 197.1 | 183.8 |
27.0 |
5.3 |
M5.3 |
200 |
|
MJ-SP028-21 |
8*12 |
22-2 | 174.6 | 211.5 |
198.2 |
27.0 |
5.3 |
M5.3 |
200 |
|
MJ-SP028-22 |
8*12 |
24-2 | 189.0 | 225.9 | 212.6 |
27.0 |
5.3 |
M5.3 | 200 |
