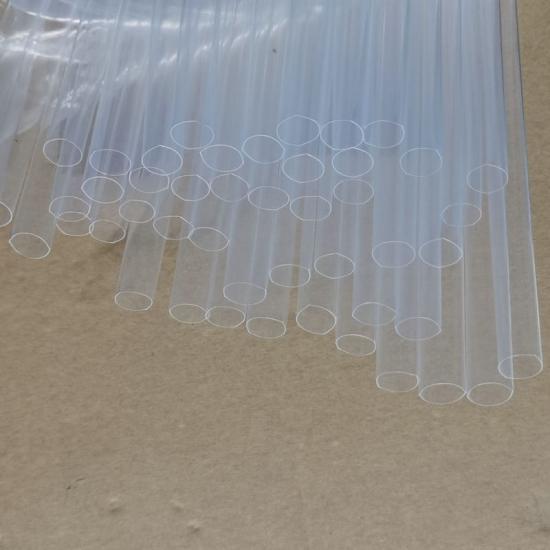

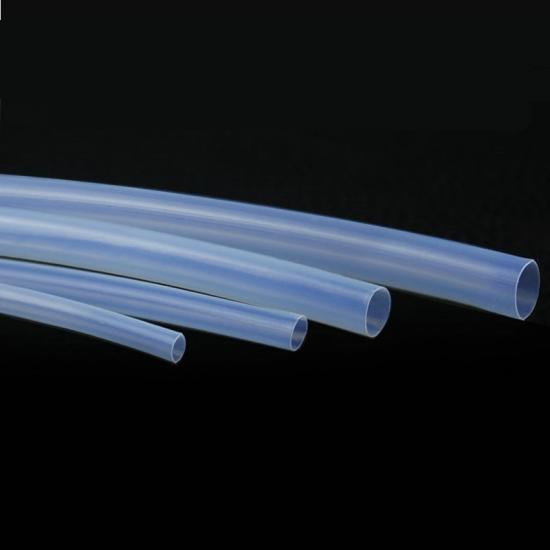

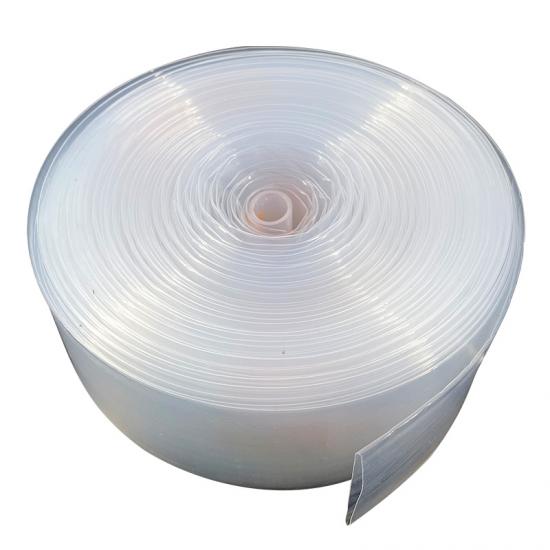

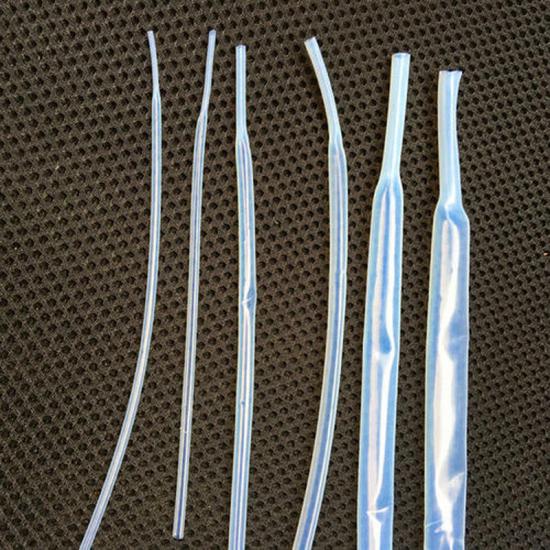

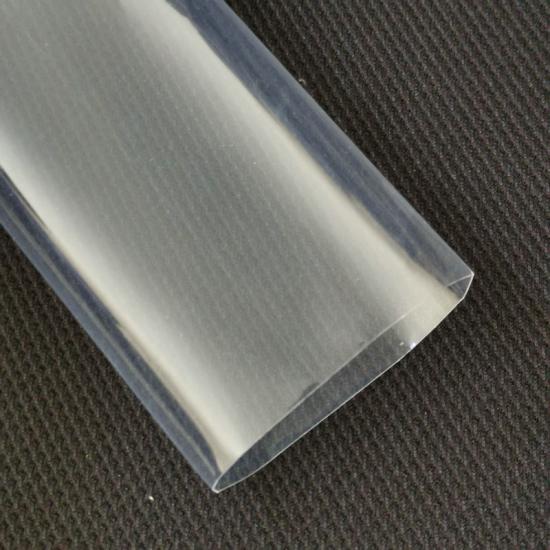

1.7X PTFE Heat Shrink Tubing
E-FLEX® PTFE Heat Shrink Tube combines of most advantages of common heat shrinkable tube and outstanding chemical properties of fluoropolymer. This kind of heat shrink tubing consist of 100% PTFE material, meanwhile it is the best of the entire fluoropolymer heat shrink tubing family, provide high temperature and chemical resistance with a low friction rating and a very low level of moisture absorption. when the tube totally shrunk, it need high temperature.
What's Special of Our 1.7X Teflon Heat Shrink Tubing?
- Superior Chemical Immunity: Virtually unaffected by almost all industrial chemicals, solvents, acids, and fuels.
- Excellent Dielectric Properties: Provides reliable electrical insulation with a 600V working voltage rating and high dielectric strength.
- Low Friction & Non-Stick: Features an exceptionally low coefficient of friction, facilitating the smooth movement of fluids or mechanical parts.
- Mechanical Durability: High tensile strength (≥ 24.5MPa) and superior abrasion resistance ensure long-term protection against mechanical stretch and wear.
- Environmental Stability: Rated UL-224 VW-1 for flame retardancy and tested for 2000 hours of weather resistance without cracking.
Physical properties
Physical Properties
Details
Material
PTFE
Shrink Ratio
1.7:1
Working Temperature
-55℃ ~ +260℃
Melt Point
327℃
Wroking Voltage
600V
Flammability
UL-224 VW-1
Tensile strength
≥ 24.5MPa
Specific Gravity
2.16g/cm³
Weather Resistance
No Cracking at Weather-O-Meter (2000h)
Solvent Resistance
Excellent
Chemical Resistance
Excellent
Standard Color
Clear
Cutting Tool
Scissor
Specification
| Part No | Size | Unshrink Size (mm) | After Shrunk Size(mm) |
Packing
Length
(m/spool)
|
||
| D | W.T | d | w.t | |||
| HST-PF1.7-0.5-CL | Φ0.5 | 0.70±0.2 | 0. 10±0.05 | ≦0.40 | 0. 15±0.05 | 200 |
| HST-PF1.7-1.0-CL | Φ1.0 | 1.00±0.2 | 0. 10±0.05 | ≦0.66 | 0. 15±0.05 | 200 |
| HST-PF1.7-1.5-CL | Φ1.5 | 1.50±0.2 | 0. 10±0.05 | ≦0.97 | 0. 15±0.05 | 200 |
| HST-PF1.7-2.0-CL | Φ2.0 | 2.00±0.2 | 0. 10±0.05 | ≦1.32 | 0. 15±0.05 | 200 |
| HST-PF1.7-2.5-CL | Φ2.5 | 2.50±0.2 | 0. 10±0.05 | ≦1.65 | 0. 15±0.05 | 200 |
| HST-PF1.7-3.0-CL | Φ3.0 | 3.00±0.2 | 0. 15±0.05 | ≦1.83 | 0.20±0.05 | 100 |
| HST-PF1.7-3.5-CL | Φ3.5 | 3.50±0.2 | 0. 15±0.05 | ≦2.05 | 0.20±0.05 | 100 |
| HST-PF1.7-3.8-CL | Φ3.8 | 3.80±0.2 | 0. 15±0.05 | ≦2.24 | 0.20±0.05 | 100 |
| HST-PF1.7-4.0-CL | Φ4.0 | 4.00±0.3 | 0. 15±0.05 | ≦2.31 | 0.20±0.05 | 100 |
| HST-PF1.7-4.5-CL | Φ4.5 | 4.50±0.3 | 0. 15±0.05 | ≦2.57 | 0.20±0.05 | 100 |
| HST-PF1.7-5.0-CL | Φ5.0 | 5.00±0.3 | 0. 15±0.05 | ≦3.10 | 0.20±0.05 | 100 |
| HST-PF1.7-6.0-CL | Φ6.0 | 6.00±0.3 | 0. 15±0.05 | ≦3.80 | 0.25±0.05 | 100 |
| HST-PF1.7-7.0-CL | Φ7.0 | 7.00±0.3 | 0. 18±0.05 | ≦4.20 | 0.25±0.05 | 100 |
| HST-PF1.7-8.0-CL | Φ8.0 | 8.00±0.3 | 0. 18±0.05 | ≦4.80 | 0.25±0.05 | 100 |
| HST-PF1.7-9.0-CL | Φ9.0 | 9.00±0.3 | 0. 18±0.05 | ≦5.30 | 0.25±0.05 | 100 |
| HST-PF1.7-10.0-CL | Φ10 | 10.00±0.3 | 0.20±0.05 | ≦6.20 | 0.25±0.05 | 100 |
| HST-PF1.7-11.0-CL | Φ11 | 11.00±0.3 | 0.20±0.05 | ≦6.30 | 0.25±0.05 | 100 |
| HST-PF1.7-12.0-CL | Φ12 | 12.00±0.3 | 0.20±0.05 | ≦6.95 | 0.25±0.05 | 100 |
| HST-PF1.7-13.0-CL | Φ13 | 13.00±0.3 | 0.20±0.05 | ≦7.00 | 0.25±0.05 | 100 |
| HST-PF1.7-14.0-CL | Φ14 | 14.00±0.3 | 0.20±0.05 | ≦8.70 | 0.25±0.05 | 100 |
| HST-PF1.7-15.0-CL | Φ15 | 15.00±0.3 | 0.20±0.05 | ≦8.80 | 0.25±0.05 | 100 |
| HST-PF1.7-16.0-CL | Φ16 | 16.00±0.3 | 0.20±0.05 | ≦8.90 | 0.25±0.05 | 100 |
Application
- Aerospace & Aviation: Protection of wiring harnesses and sensors in engine compartments and high-altitude systems where extreme thermal cycling occurs.
- Medical Technology: Used for covering surgical instruments, catheters, and laboratory probes due to its biocompatibility and resistance to sterilization processes.
- Chemical & Industrial Processing: Lining and protecting fluid handling systems, sampling tubes, and components exposed to corrosive pH levels.
- Oil & Gas Exploration: Downhole cable protection and sensor encapsulation in high-pressure, high-temperature (HPHT) environments.
- High-End Electronics: Insulation for high-temperature soldering points, thermocouple leads, and high-density connectors where space is premium and heat is intense.
