Heat treated fiberglass sleeve

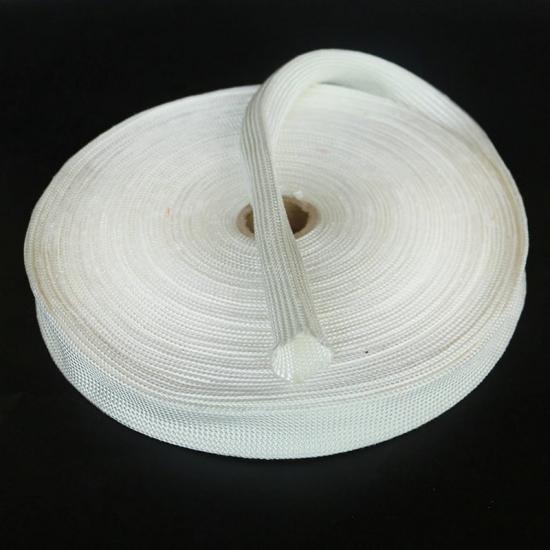

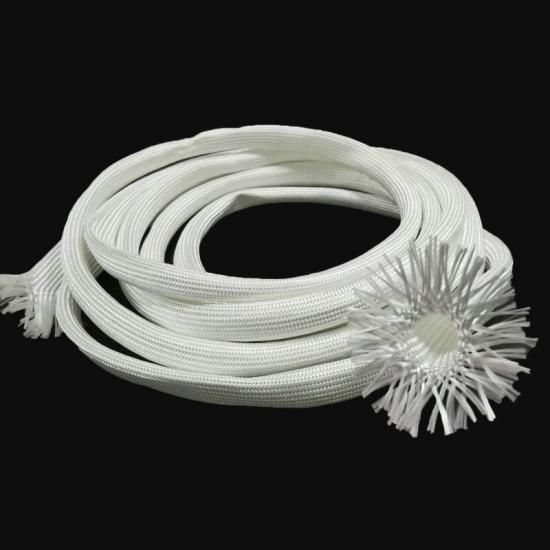

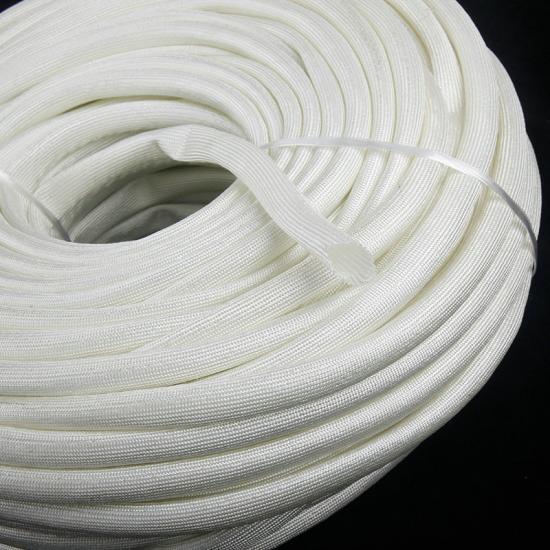

High Temperature Heat Treated Fiberglass Braided Sleeve

Heat treated fiberglass sleeving is made of alkali-free fiberglass yarn braided into pipes and then bonded with small amount of Silane binder after high temperature dewaxing and fixed grain impregnation.


The heat shield fiberglass tubing is mainly applied to insulate and heat equipment, such as motor, engine, plug wire, fuel lines, decorative light, etc.

  • Model No:

    GF-HT-N
  • Material:

    Alkali-Free Fiberglass Fiber
  • Working Temperature:

    -60℃~ +600℃
  • Flammability:

    VW-1
  • Standard Color:

    White
  • Cutting Tool:

    Scissor
  • Product Details


High Temperature Heat Treated Fiberglass Braided Sleeve


Heat treated fiberglass sleeving made of alkali-free fiberglass yarn braided into pipes and then bonded with small amount of Silane binder after high temperature dewaxing and fixed grain impregnation.


This heat sleeve fiberglass are for high temperature applications, also, it keeps wire neat and organized.


Its flexibility and expandability make it easy to over irregular shapes. It also provides abrasion and flame resistance.


The heat shield tubing is mainly applied to insulate and heat equipment, such as motor, engine, plug wire, fuel lines, decorative light, etc.




What's special about high temperature fiberglass sleeving?


1.Made of alkali-free fiberglass fiber

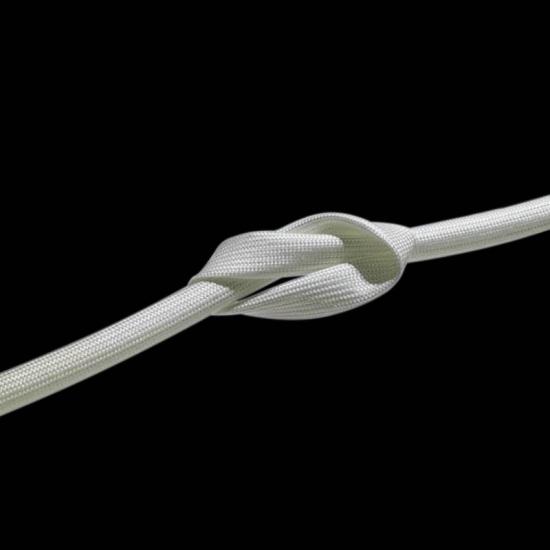

2.Light,soft and fliexble

3.Available in different sizes

4.High temperature resistance

5.Anti-aging protective

6.Heat insulation protection

7.Chemical resistance

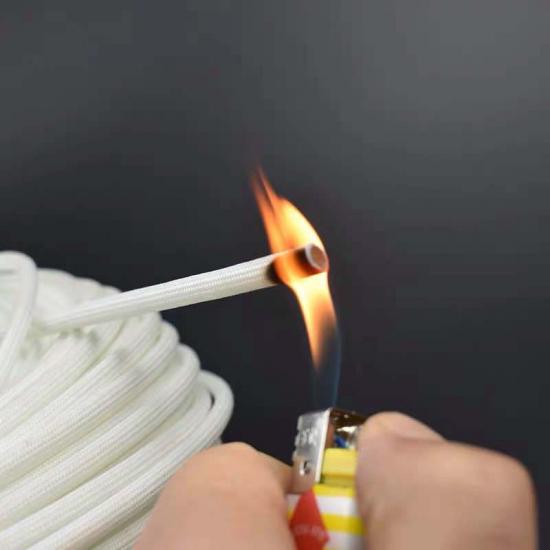

8.Self-extinguishing



Physical Properties


Braided Material Fiberglass Fiber
Working Temperature -60~ +600
Breakdown strength 600V
Flammability VW-1
Standard Color White
Cutting Tool Scissor




Specification



Part No
Size
ID
(mm)
Wall Thickness(T)
(mm)
Packing Length
(m/spool)
GF-HT-N-0.5-WH 0.5  0.20±0.08 400
GF-HT-N-1.0-WH 1.0  0.20±0.08 400
GF-HT-N-1.5-WH 1.5  0.20±0.08 400
GF-HT-N-2.0-WH 2.0  0.20±0.08 200
GF-HT-N-2.5-WH 2.5  0.25±0.08 200
GF-HT-N-3.0-WH 3.0  0.30±0.08 200
GF-HT-N-3.5-WH 3.5  0.35±0.08 200
GF-HT-N-4.0-WH 4.0  0.35±0.08 100
GF-HT-N-4.5-WH 4.5  0.35±0.08 100
GF-HT-N-5.0-WH 5.0  0.35±0.08 100
GF-HT-N-5.5-WH 5.5  0.35±0.08 100
GF-HT-N-6.0-WH 6.0  0.35±0.08 100
GF-HT-N-7.0-WH 7.0  0.35±0.08 100
GF-HT-N-8.0-WH 8.0  0.40±0.10 100
GF-HT-N-9.0-WH 9.0  0.40±0.10 100
GF-HT-N-10.0-WH 10.0  0.45±0.10 50
GF-HT-N-11.0-WH 11.0  0.45±0.10 50
GF-HT-N-12.0-WH 12.0  0.45±0.10 50
GF-HT-N-13.0-WH 13.0  0.50±0.10 50
GF-HT-N-15.0-WH 15.0  0.50±0.10 50
GF-HT-N-18.0-WH 18.0  0.50±0.10 50
GF-HT-N-20.0-WH 20.0  0.50±0.10 25
GF-HT-N-22.0-WH 22.0  0.50±0.10 25
GF-HT-N-25.0-WH 25.0  0.50±0.10 25

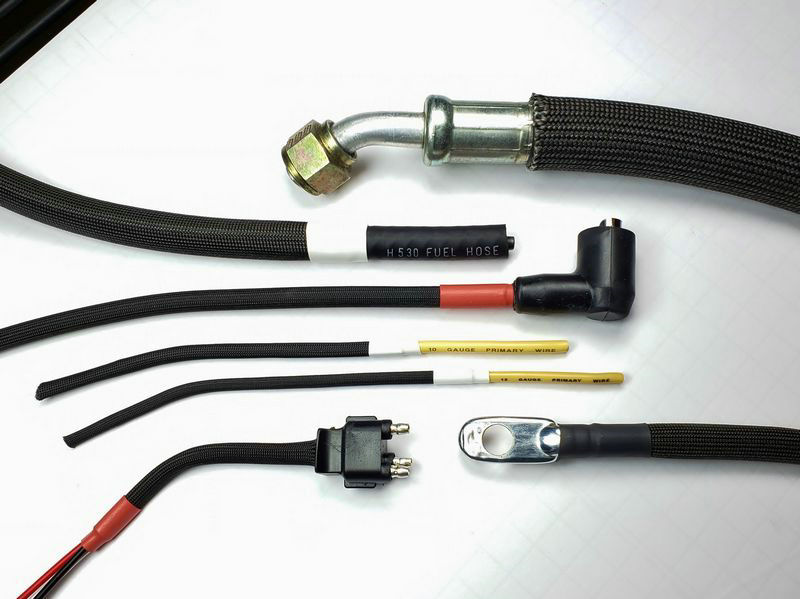

Application

High temp fiberglass sleeving smainly applied to insulate and heat equipment, such as motor, engine, plug wire, fuel lines, decorative light, etc.
