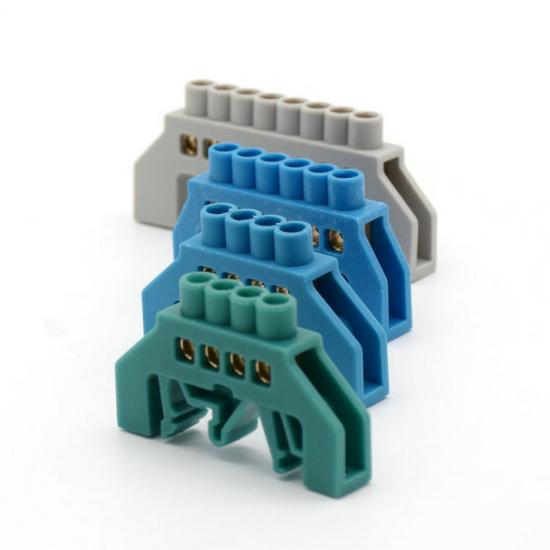

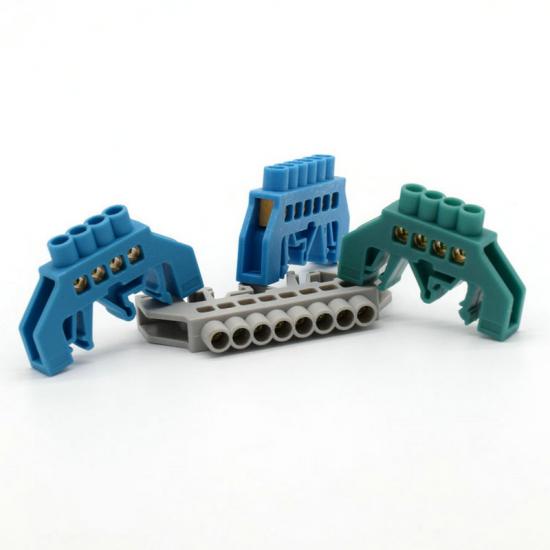

Flame Retardant Screw Din Rail Ground Erath Terminal Block Connector

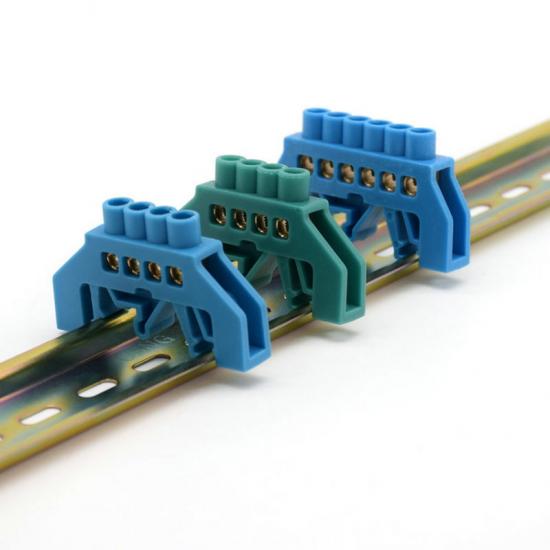

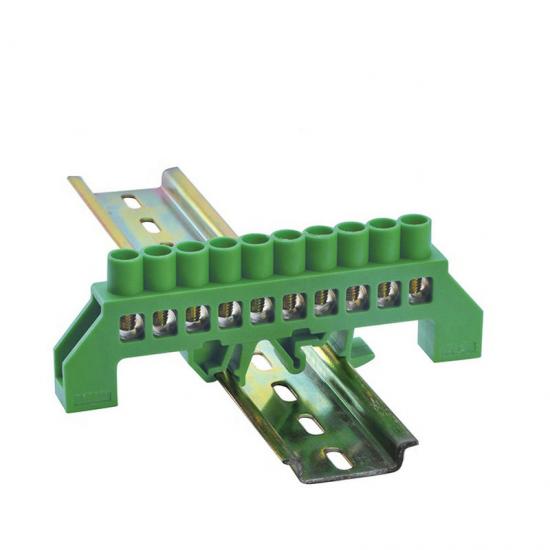

The grounding terminal blocks made from engineering flame retardants nylon PA66 with alloy brass screw metal,provide an easy-to-identify, convenient, neatly organized grounding bus that is mounted on the DIN rail.The protective terminal blocks has strong clamps to ensure tight fixation on DIN rails to achieve the PE function.
What's the special about our din rail terminal block connector
1.Flame retardant
2.Suitable for broad range of cross-section and types of wires.
3.Wires can be connected without any special preparation.
4.Easy for the extension and safe connection.
5.An excellent vibration proof protection against loosening.
6.High reliability and maintenance free.
7.Very low contact resistance.
8.Easy mounting and dismounting from the terminal rail.
Physical Properties
Holder Material
PA66
Conductor Material
Brass
Screw Material
Steel zinc plated
Conductor Size
1~5AWG
Brass W*H
6*9,8*12
Screw Size
M4.0~M5.0
Working Temperature
-40℃~150℃
Melt Point
256+(-)10℃
Flammability
UL94V2
Standard Color
Blue,Green,Light Grey
Din Rail Size
35mm
Specification
Brass Size
W*H(mm)
Packing
(pcs/ctn)
Part No
Holes
L
L1
L2
H
W
Φ
Screw Size
(mm)
MJ-SP033-01
6*9
4
57.5
49.0
34.0
34.5
10.5
5.0
M4.0
1000
MJ-SP033-02
6*9
6
57.5
49.0
46.7
34.5
10.5
5.0
M4.0
1000
MJ-SP033-03
6*9
8
78.5
69.5
60.0
34.5
10.5
5.0
M4.0
800
MJ-SP033-04
6*9
10
89.0
78.0
72.8
34.5
10.5
5.0
M4.0
600
MJ-SP033-05
6*9
12
102.0
91.5
85.7
34.5
10.5
5.0
M4.0
500
MJ-SP033-06
8*12
4
77.5
66.0
40.6
38.6
12.6
7.0
M5.0
500
MJ-SP033-07
8*12
6
77.5
66.0
57.3
38.6
12.6
7.0
M5.0
500
MJ-SP033-08
8*12
8
94.3
83.0
74.4
38.6
12.6
7.0
M5.0
500
MJ-SP033-09
8*12
10
111.0
100.0
91.0
38.6
12.6
7.0
M5.0
500
MJ-SP033-10
8*12
12
128.4
117.5
108.6
38.6
12.6
7.0
M5.0
500
MJ-SP033-11
8*12
14
145.8
134.0
135.6
38.6
12.6
7.0
M5.0
200
Application
Din Rail terminal blocks used for wires connecting of home appliances, electronic circuits, machines, etc
