distribution terminal block

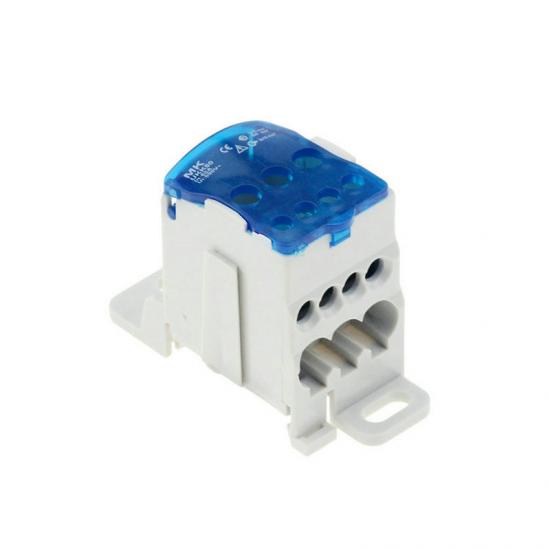

UKK-80A Din Rail Power Distribution Terminal Blocks

Distribution terminal block are consist of flame-retardant PA shell and high quality copper conductor, which are high temperature and corrosion resistance, good insulation performance and long-lasting durability,high conductivity, low temperature rise, full current.


Din Rail style are easy to install or remove.

  • Item no.:

    MJ-UKK-80A
  • Material:

    PA shell+Nickel plated copper conductor
  • Working Temperature:

    -40°C to 110°C
  • Flammability:

    UL94 V2
  • Standard Color:

    Blue,Green
  • Certification:

    CE/RoHS/CQC/ISO 9001
  • Size:

    UKK80A
  • Product Details

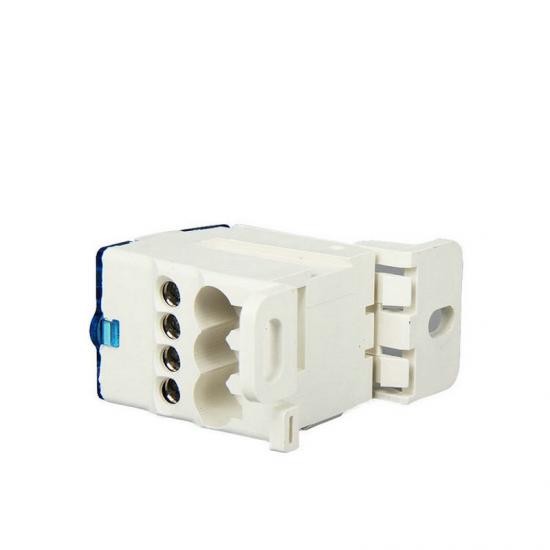

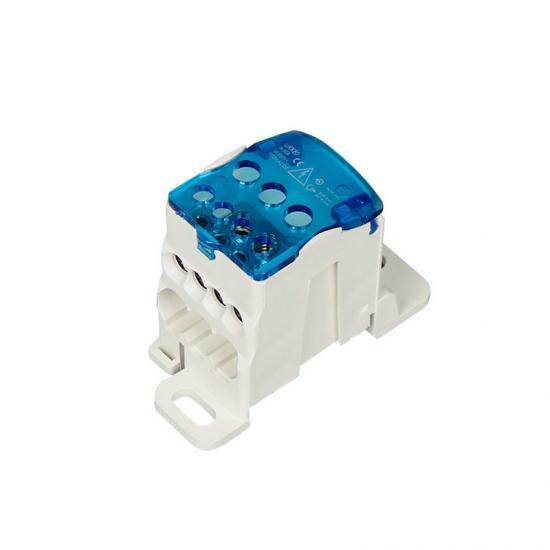

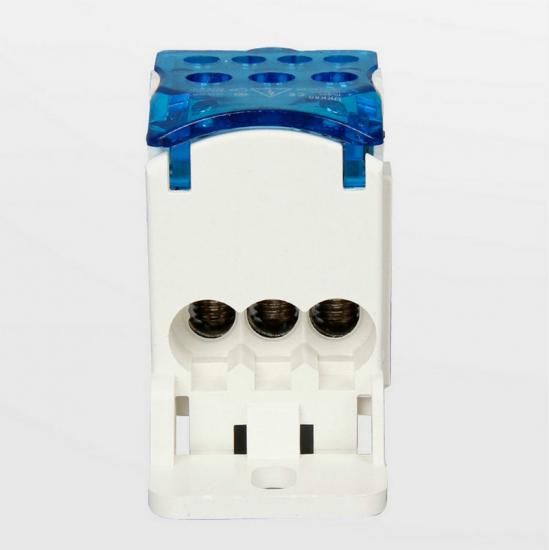

UKK-80A Din Rail Power Distribution Terminal Blocks


Din rail distribution block made of PA66 and nickel plated copper,it is high temperature resistant and corrosion resistant,good insulation performance and durability for using.

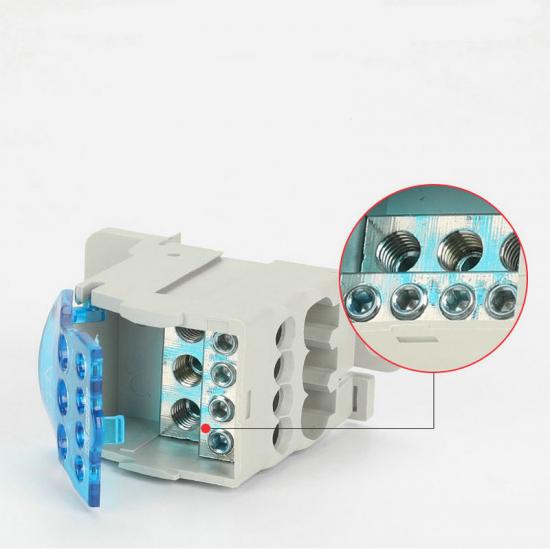

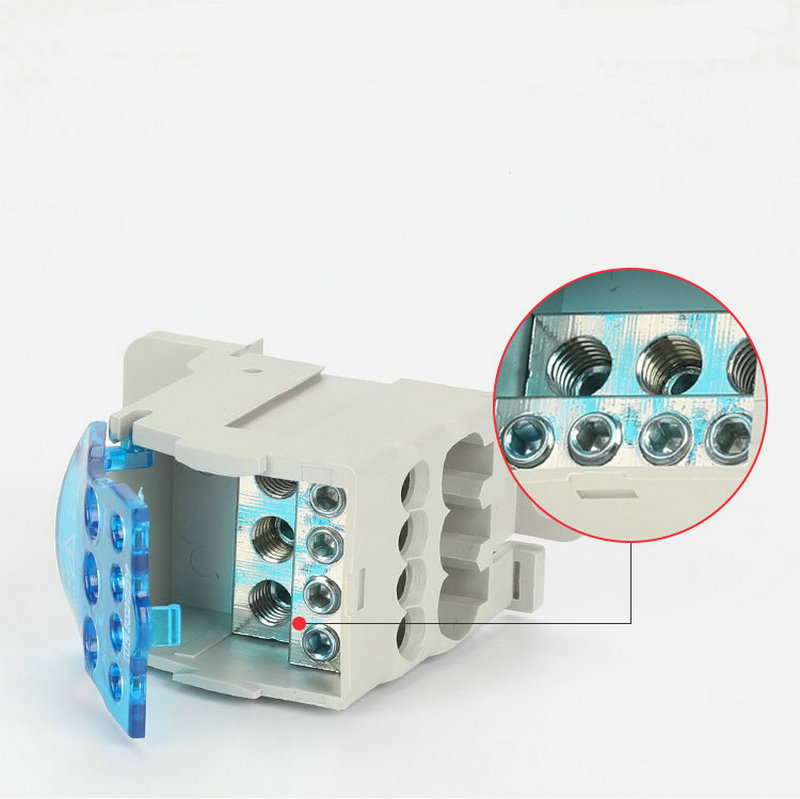

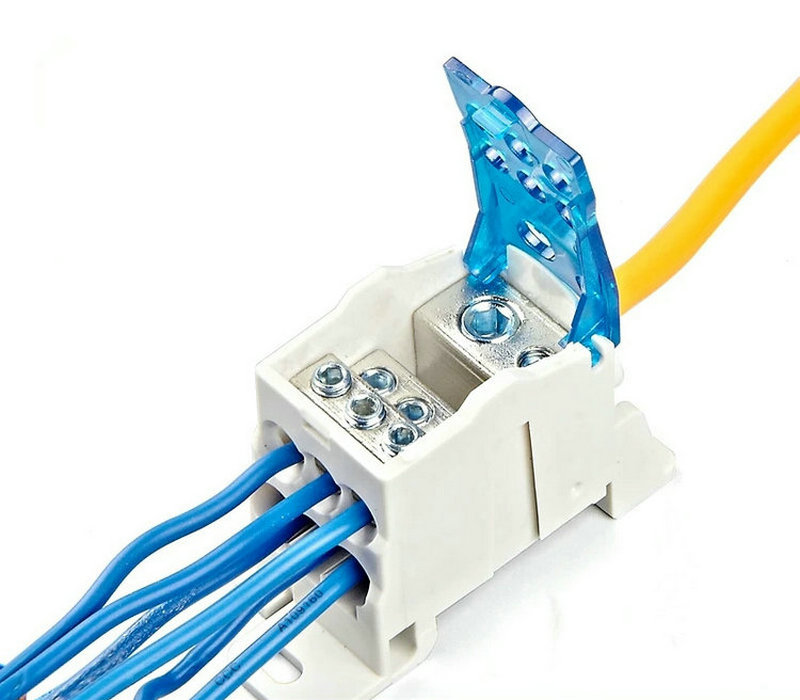

The transparent cover can see if the cable is connected reliably, and din style design can install on the rail easily.


power distribution terminal block


Data sheet


Model UKK-80A
Rated voltage/current
690V/80A
Outer material
PA66
Conductor material
Copper(nickel plated)
Screw material Steel,zinc plated
Working temperature
-40°C to 110°C
Flammability
UL94 V2
Standard
IEC 60947-7-1
Mounting type DIN rail NS 35

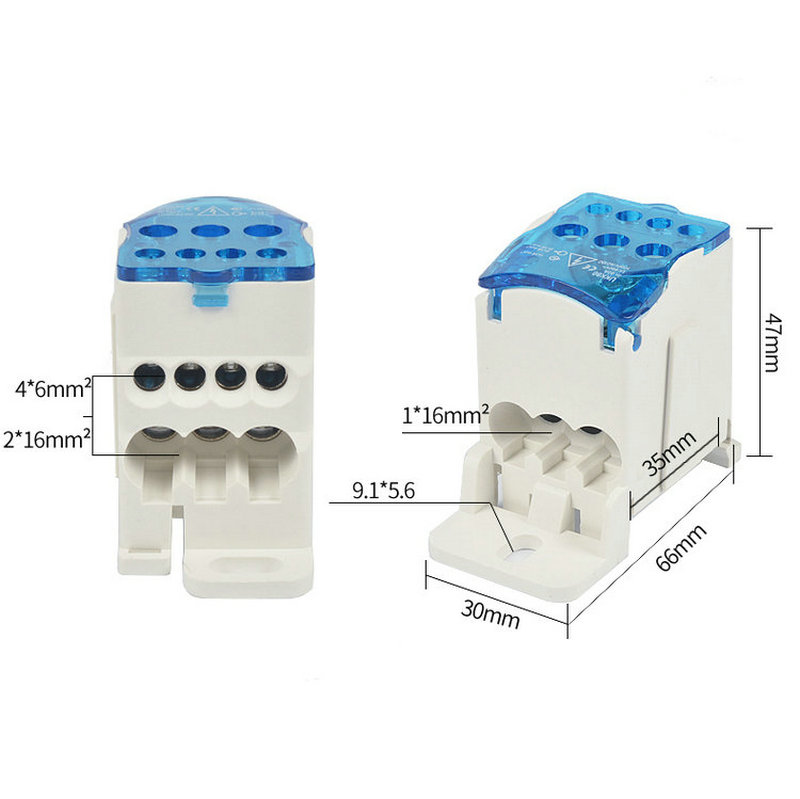

Dimensions
66*30*47mm(L*W*H)
Entry Specification
1X16mm2
Output Specification
4X6 mm2/2X16mm2
Standard Color
Blue,Green,Grey
Certification
CE/RoHS/CQC/ISO 9001

distribution terminal block

Specification


Application

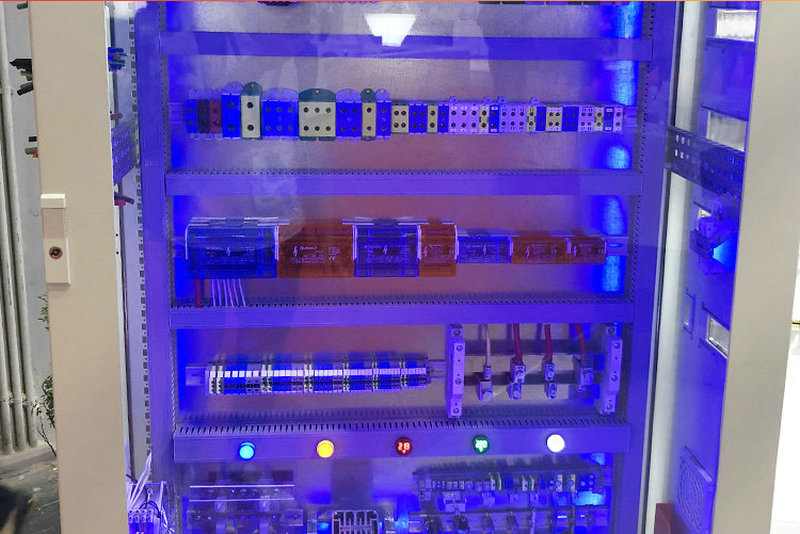

Din rail power distribution block generally used in power distribution cabinets, distribution boxes, and various high voltage cabinets

din rail distribution block

Related products
Din Rail Terminal Block

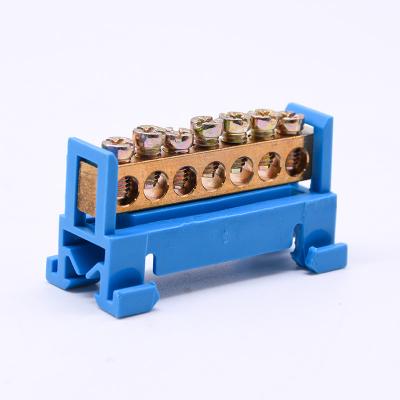

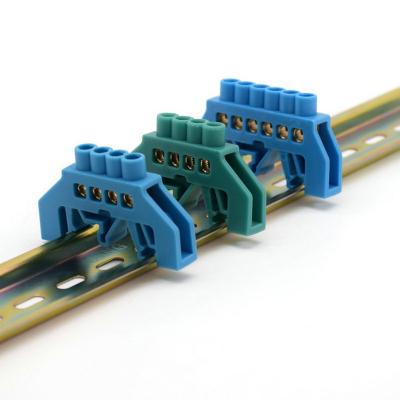

Flame Retardant Screw Din Rail Ground Erath Terminal Block Connector
