Enhanced High Temperature Resistant Fiberglass

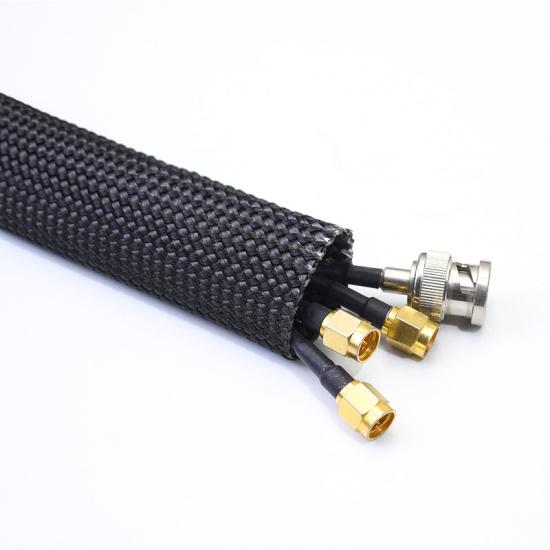

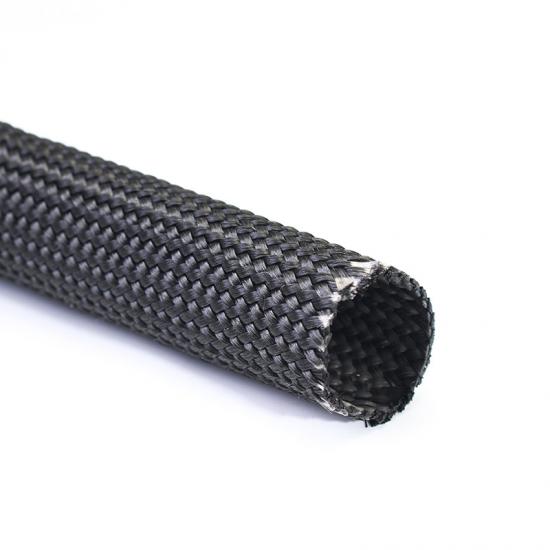

E-FLEX® Enhanced High-Temperature Resistant Fiberglass is engineered for extreme thermal shielding, the E-FLEX® GF-HT-EH series is a specialized glass fiber solution designed to withstand continuous exposure to temperatures up to 650°C (1200°F). Featuring a robust braided construction treated with a high-temperature resistant resin, this sleeving provides an elite thermal barrier that far exceeds the limits of standard fiberglass. Its reinforced structure is specifically built to maintain structural integrity under intense mechanical stress, including extreme vibration, scraping, and high-pressure conditions.
Features
- Extreme 650°C Thermal Stability: Sustains peak performance at 650°C (1200°F) with a high melting point of 1120°C, ideal for extreme engine and furnace proximity.
- Structural Integrity under Stress: High-density braid treated with specialized resin to resist vibration-induced fraying and mechanical deformation.

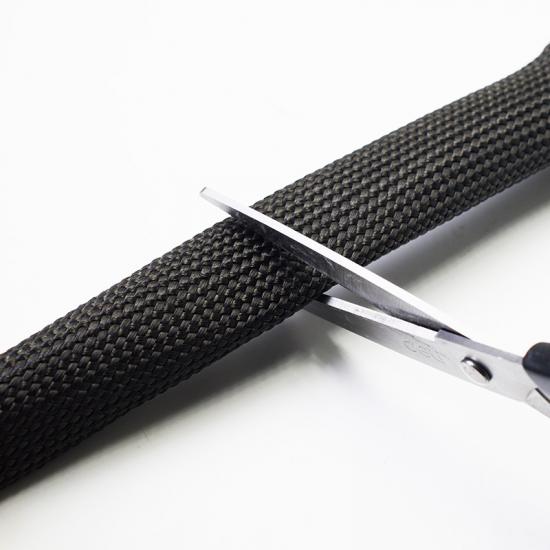

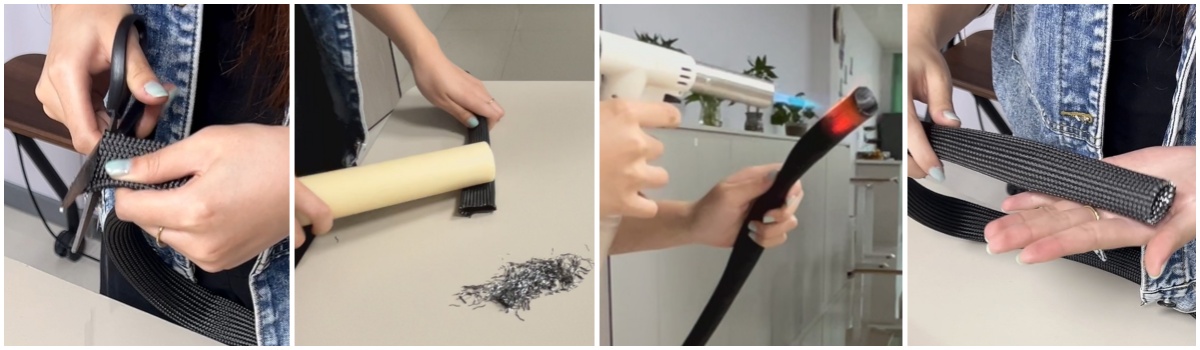

- Rapid Installation Efficiency: Engineered to cut cleanly with ordinary scissors, reducing assembly time without compromising protection.
- Certified Safety & Compliance: Meets UL VW-1 flame resistance standards; fully RoHS and REACH compliant for global industrial applications.
- Advanced High-Heat Resin Coating: Enhanced with a proprietary coating that significantly improves abrasion resistance and handling compared to raw fiberglass.
Physical Properties
| Braided Material | Glass Fiber | |||||||||
| Coating Material | High Temperature Resistant Resin | |||||||||
| Function | Thermal Protection | |||||||||
| Working Temperature | -70℃~ +650℃ | |||||||||
| Melt Point | 1120℃ | |||||||||
| Flammability | VW-1 | |||||||||
| Abrasion Resistance | High | |||||||||
| Color | Black | |||||||||
| Cutting Tool | Scissor | |||||||||
Specification
Part No
GF-HT-O-006-BK-EH
6.0
+0.50/-0.0
0.78±0.10
10
50
GF-HT-O-010-BK-EH
10.0
+0.70/-0.0
1.08±0.10
16
50
GF-HT-O-012-BK-EH
12.5
+0.70/-0.0
1.15±0.15
19
50
GF-HT-O-016-BK-EH
16.0
+0.80/-0.0
1.15±0.15
22
50
GF-HT-O-019-BK-EH
19.0
+0.80/-0.0
1.15±0.15
28
50
GF-HT-O-022-BK-EH
22.0
+1.00/-0.0
1.15±0.15
32
50
GF-HT-O-025-BK-EH
25.0
+1.00/-0.0
1.43±0.15
40
25
GF-HT-O-038-BK-EH
38.0
+1.00/-0.0
1.53±0.18
65
25
GF-HT-O-062-BK-EH
62.5
+1.50/-0.0
1.78±0.20
103
25
Applications
Aerospace: Thermal protection systems (TPS) for re-entry vehicles.
Industrial: Furnace linings, kiln insulation, molten metal filtration.
Fire Protection: Fire blankets, protective clothing.
Energy: Insulation for gas turbines, nuclear reactors.
