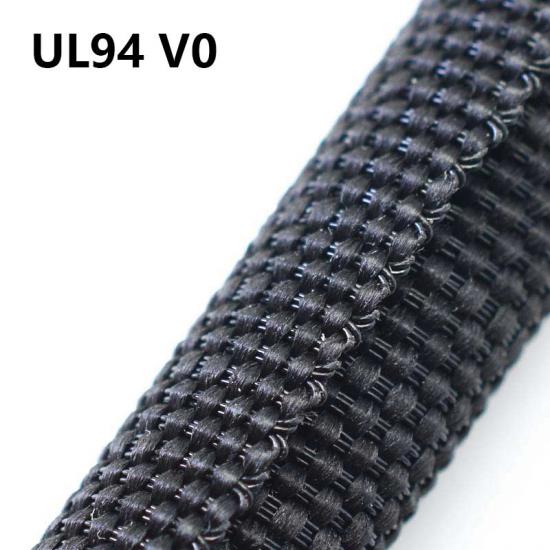

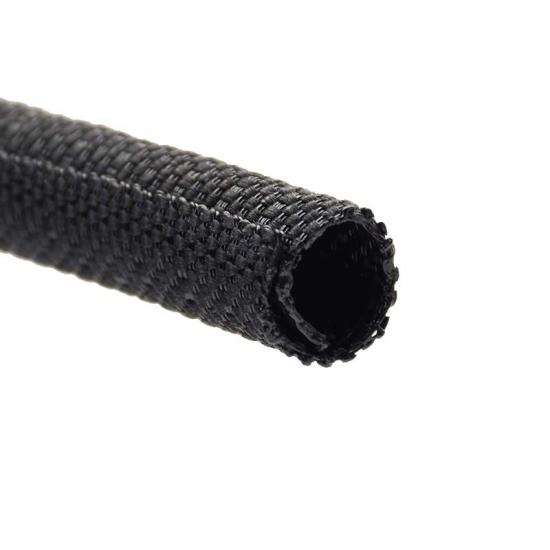

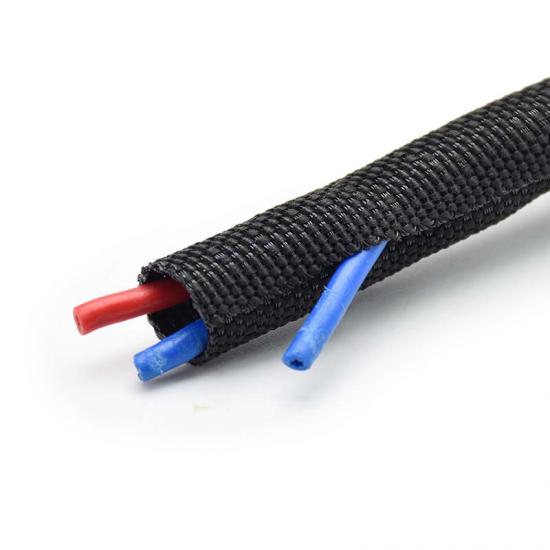

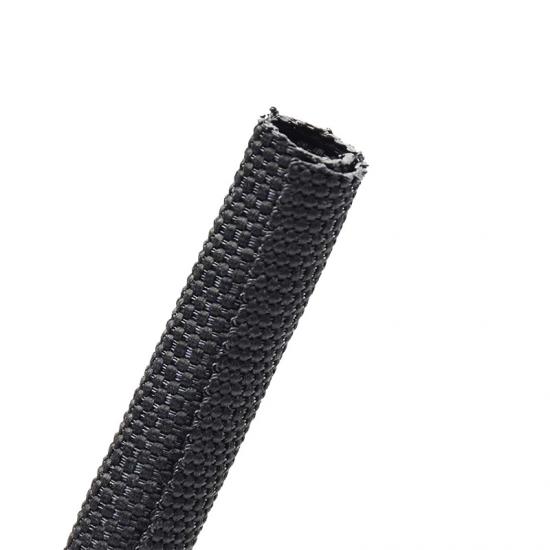

UL94 V0 Double-Weft Flame Retardant Wrap Around Sleeving
E-FLEX® STW V0 Flame Retardant Split Braided Wrap provides reliable cable protection in safety-critical environments where conventional sleeving solutions fail to deliver consistent fire performance.Both the raw materials and the finished sleeve achieve UL94 V0 flame-retardant performance.
Many conventional cable split sleeves struggle to consistently meet UL94 V0 standards at the finished product level, which limits their use in high-risk and safety-critical applications. This wrappable sleeving overcomes those limitations by delivering certified fire resistance at both material and product levels.
What's Apecial about UL94 V0 Wrap Around Sleeving?
- UL94 V0 flame-retardant rating (raw material & finished product)
- Woven wrap around design for quick and tool-free installation
- Excellent abrasion and wear resistance
- Stable performance in high-temperature environments
- Flexible yet durable structure for complex wiring harness routing
- Ideal wrappable sleeving solution for safety-critical and high-standard industries
Physical Properties
| Physical Properties | Details |
| Material | Polyester(PET) |
| Working Temperature | -40°C ~ +150°C |
| Flammability | According to UL94, material conforms to V0 |
| Standard Color | Black and White |
| Certification | Rohs |
| Cutting Tool | Hot Knife |
Specification
Part No
Bundle Dia Range(mm)
Min
Max
STW-PET-003-BK-DW
3
2
4
100
STW-PET-005-BK-DW
5
4
6
100
STW-PET-008-BK-DW
8
6
9
100
STW-PET-010-BK-DW
10
8
11
100
STW-PET-013-BK-DW
13
12
14
100
STW-PET-016-BK-DW
16
15
17
100
STW-PET-019-BK-DW
19
18
20
50
STW-PET-025-BK-DW
25
23
26
25
STW-PET-029-BK-DW
29
27
31
25
STW-PET-032-BK-DW
32
30
34
25
STW-PET-038-BK-DW
38
37
40
25
STW-PET-050-BK-DW
50
48
52
25
Application
Products are widely used for wear-resistant protection and arangement of wire hamesses in automobiles and mechanical equipment.
- New Energy Vehicles (EV / Hybrid)
- Automotive Wiring Harness Systems
- Industrial Automation Equipment
- Rail Transit & Transportation Systems
- Power Distribution and Control Cabinets
- High-end Electrical & Electronic Assemblies

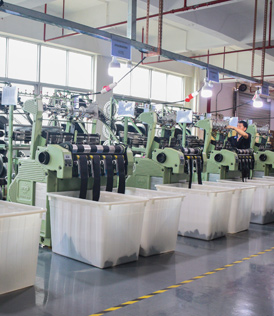

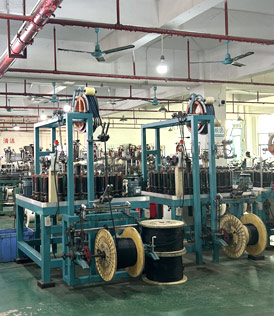

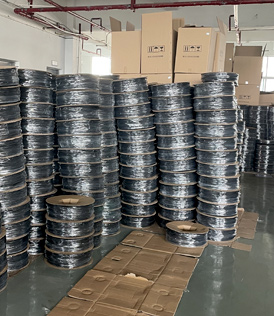

Factory Strength – Braided Sleeve Expertise
|
 |
|
 |
 |
|
 |
|
FAQ
1. Do you provide free samples?
• Special cases may be approved by management
• Black standard samples: 1–2 meters free, freight collected
• Colored / ODM samples: extra cost depending on supplier
................................................................................................................................................................................................................................................
2. What is your minimum order quantity (MOQ)?
• Black standard products: MOQ = one roll (first 3 orders allowed)
• Standard colors: usually 2000 meters (depends on yarn inventory)
................................................................................................................................................................................................................................................
3.What is your typical lead time?
Regular lead time: around 10 days
Urgent orders: about 5 days
................................................................................................................................................................................................................................................
4. Do your products have UL certification?
Yes. Our PET braided sleeving, self-closing braided wrap, textile wrap, self-closing conduit, and full-elastic wrap are UL-certified.
................................................................................................................................................................................................................................................
5. Do you have ISO and other quality system certifications?
Yes. We are certified with:
• ISO 9001
• ISO 14001
• ISO 13485 (medical)
• IATF 16949 (automotive)
................................................................................................................................................................................................................................................
6. Can you customize packaging?
Yes, based on required quantity and product type.
