Warp Knit Self-Wrapping Cable Sleeve
E-FELX® Warp Knit Self-closing Braided Sleeve is comparable to Relats PLAS7 ( PLAS7 is a registered trademark of Relats and is referenced for comparison purposes only. ) in performance. our latest design, it made of special modified pet multifilament and monofilament.The special braid construction permits to be superior elastic flexibility with unbeatable coverage over any harness assembly.
This split braided wire loom are extremely light weight,high abrasion resistance,flame retardant,UV resistance,noise reduction,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Certifications
Physical Properties
| Physical Properties | Details |
| Material | PET |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±10)°C |
| Low Temperature Resistance | No crack and degradation after test at -40℃ for 4h |
| Heat Aging Resistant | No signs of crack and degradation after test at 150℃ for 240h per GMW14327 |
| Flammability | UL94 V2, FMVSS302, VW - 1 |
| Abrasion Resistance | Refers to ISO 6722 - 1, conforms to GMW14327, ≥ grade4 (≥ 4000 times) |
| Liquid Resistance | Refers to GMW 14327 |
| Overlap | 50% |
| Standard Color | Black |
| Certification | Rohs, Reach, UL, Halogen Free |
| Cutting Tool | Hot Knife |
What's Special about Split Braided Wire Loom?

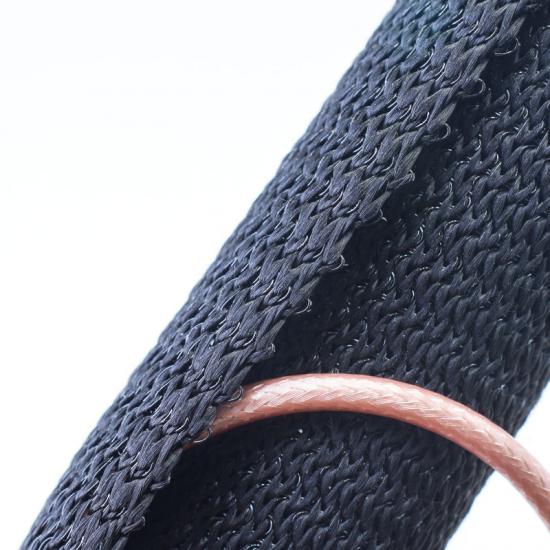

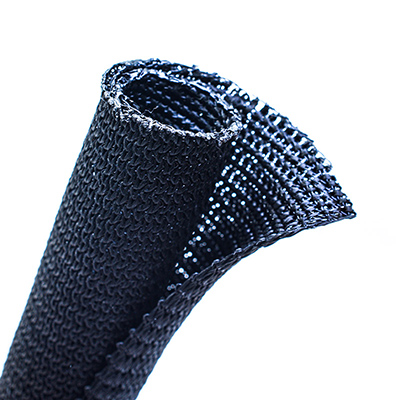

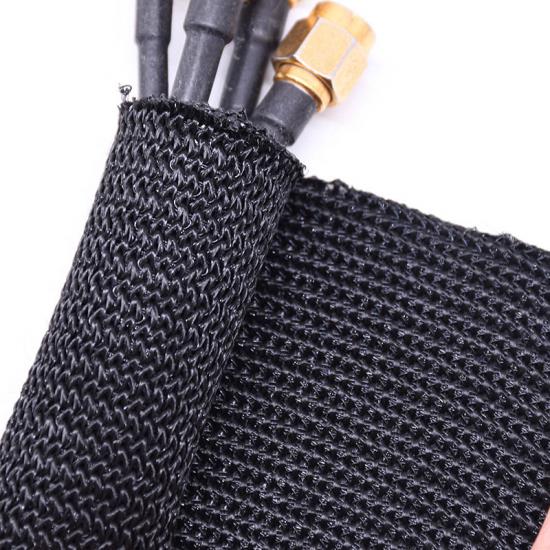

- Self-Wrapping Convenience：Designed with a unique wrap-around quality, this sleeve allows for effortless installation and removal even after wire harness assembly. Its inherent "memory" ensures the wrap remains securely closed around the cables.

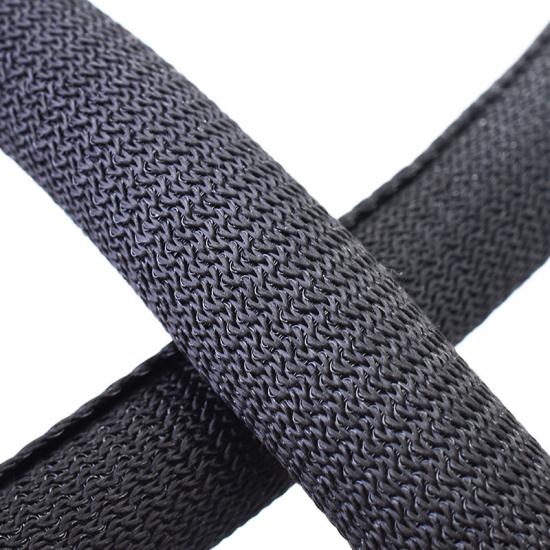

- Exceptional Coverage & Aesthetics：The specialized, lightweight woven structure provides a dense and opaque barrier. This ensures that internal cables remain completely hidden and protected, giving any wire assembly a clean, finished look.
- Superior Thermal Endurance：Engineered to perform in demanding environments, the material maintains its integrity under extreme heat and cold. It is highly resistant to heat aging, ensuring long-term reliability without cracking or degradation.
- Industrial-Grade Abrasion Resistance：Built to withstand harsh mechanical friction, the wrap provides excellent protection against surface wear. Its soft texture also offers natural noise dampening, making it ideal for vibration-prone environments.

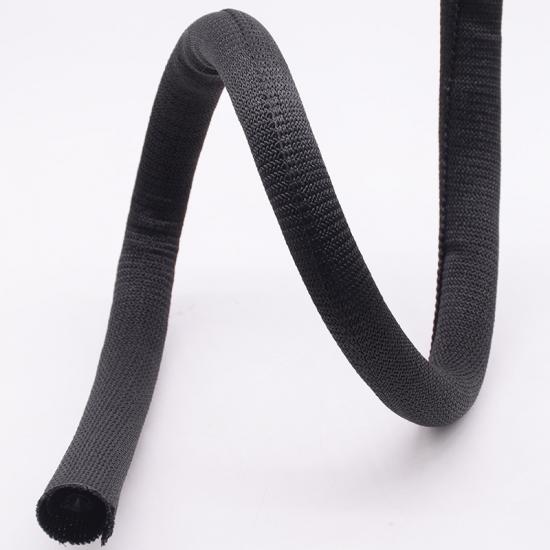

- High Flexibility & Easy Retrofitting：The split-wrap design is incredibly flexible, allowing it to navigate tight bends without gapping. It is the perfect choice for upgrading or maintaining existing cable systems without the need to disconnect any terminals.
- Environmentally Friendly & Safe：The material is flame-retardant and fully compliant with international safety and environmental standards, being Halogen-Free and resistant to common industrial fluids and chemicals.
Specification
Part No
STW-PET-005-BK-W
5±2
7±2
35±4
1.0±0.25
4~6
100
STW-PET-008-BK-W
8±2
10±2
40±4
1.0±0.25
6~9
100
STW-PET-010-BK-W
10±2
12±2
49±4
1.0±0.25
8~ 11
100
STW-PET-013-BK-W
13±2
15±2
65±5
1.0±0.25
12~15
50
STW-PET-016-BK-W
16±2
18±2
77±5
1.0±0.25
15~18
50
STW-PET-019-BK-W
19±2
21±2
91±5
1.0±0.25
18~22
25
STW-PET-025-BK-W
25±2
27±2
120±7
1.0±0.25
23~26
25
STW-PET-029-BK-W
29±2
31±2
139±7
1.0±0.25
28~30
25
STW-PET-032-BK-W
32±2
34±2
153±5
1.0±0.25
29~34
25
STW-PET-038-BK-W
38±2
40±2
181±10
1.0±0.25
35~40
25
STW-PET-050-BK-W
45±5
53±5
238±12
1.0±0.25
46~52
25
Application

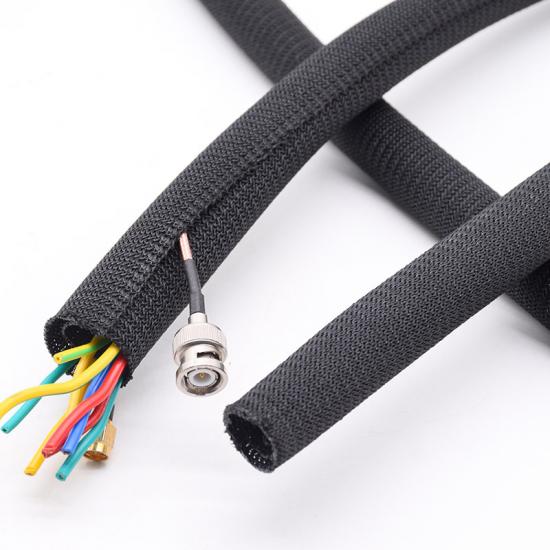

Self-Wrapping Cable Sleeve widely used on wire harnesses, tubes and hoses providing a tough and durable protection in telecom, railways, automotive sector and equipment.
- Automotive & railway wiring harness protection
- Industrial control panel, machinery, and robotics cables
- Marine, telecom, and renewable energy installations
- Home audiovisual wiring and organized cable runs
- Maintenance-friendly retrofit installations
