Flexible Control & Management With Easy On, Easy Off Access.

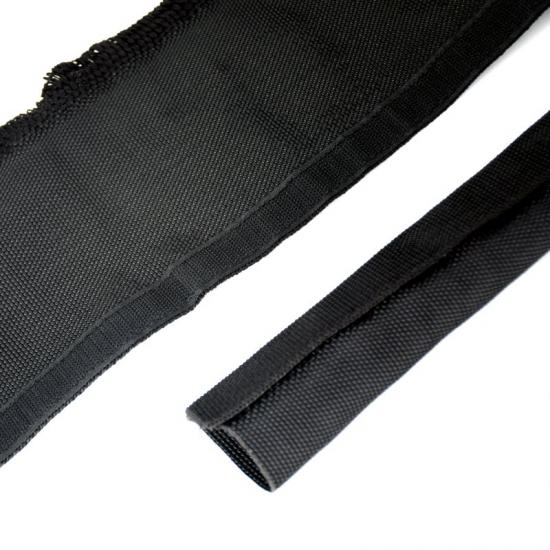

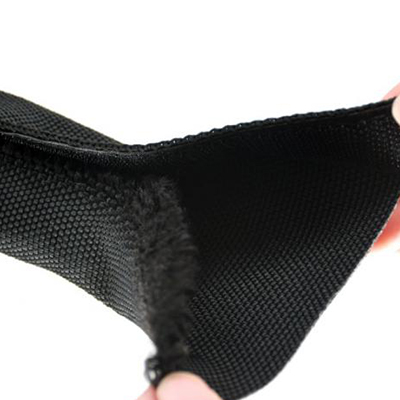

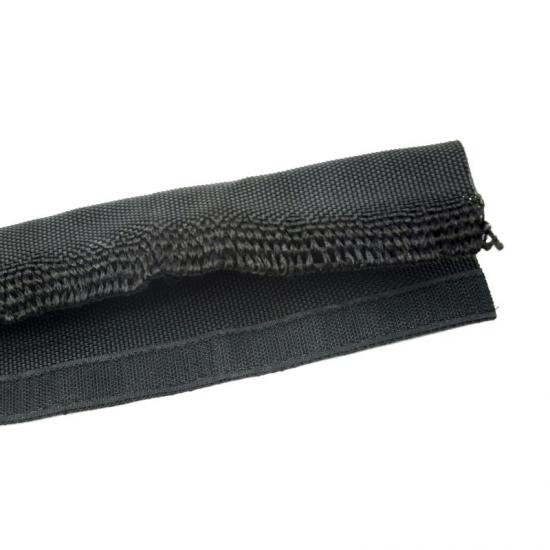

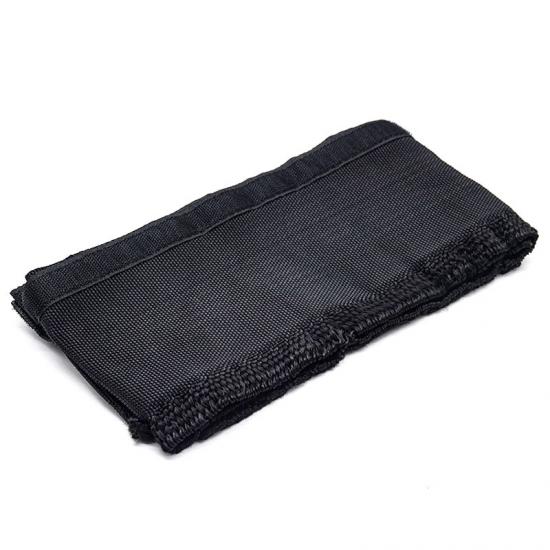

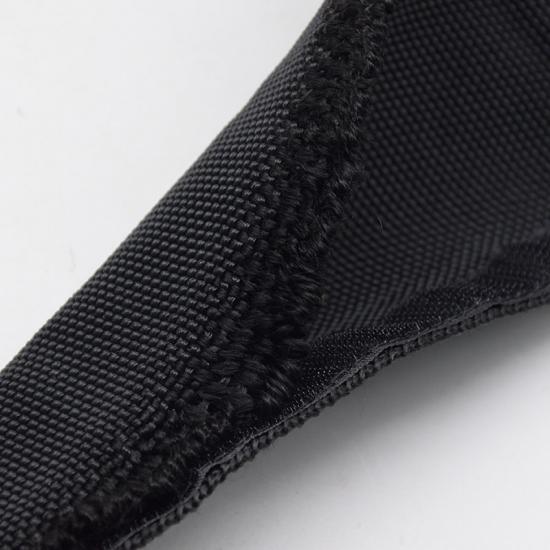

Dura hydraulic hose wrap is a new type of sleeve, made of nylon monofilament and Teflon multifilament braided and stitched with Velcro. The product has the characteristics of good wear resistance, noise reduction, flexibility, Velcro opening structure, easy installation, and beautiful appearance after molding.
What's special about Dura hydraulic braided loom sleeve?
Prevents damage from UV, gasoline, engine chemicals, and salt.
Resists cuts, abrasion, and penetration.
Flexible and economical general purpose protection.
Physical properties
Material: Nylon
Working temperature: -40℃ to 125℃
Melt point: 220 ± 10℃
Flammability: UL
Standard color: Black
Certification: ROHS
Cutting tool: Scissors or Hot cutting
Application

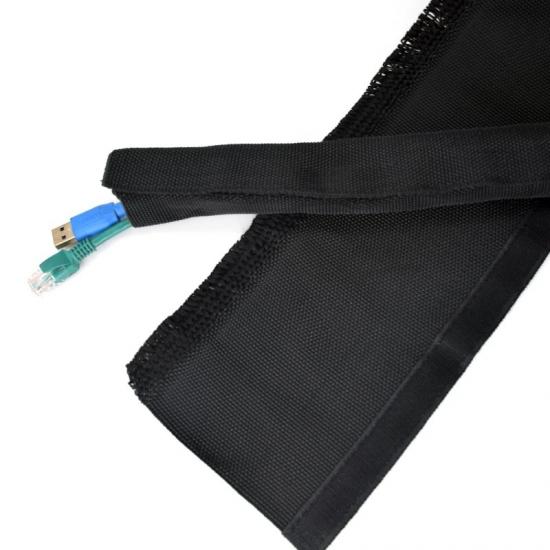

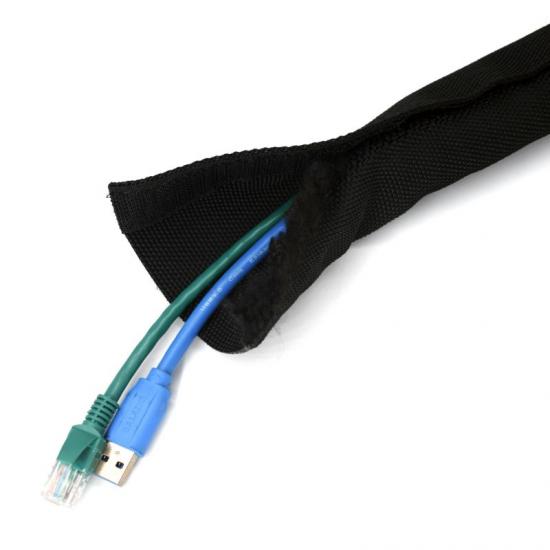

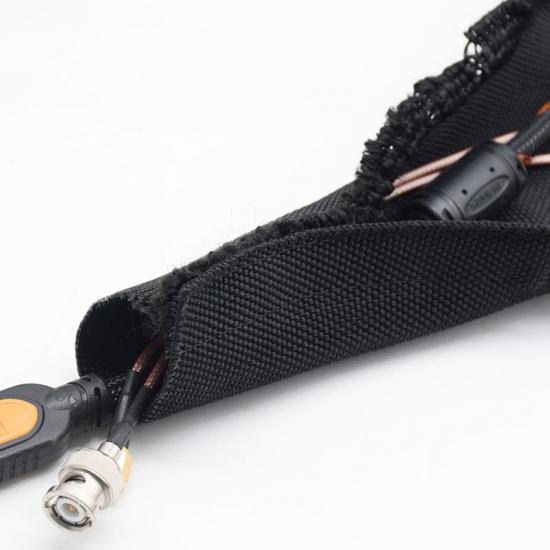

The Dura hydraulic split braided wire sleeve is used for wire harness wrapping or wire harness branch point connection.
DATA SHEET
PART NO
NOMINAL SIZE ID(MM)
WIDTH
THICKNESS (MM)
VELCRO WIDTH
Kilo
(g/m) ± 15%
PACKING (M/L)
MJ-SHWS010
10
56 ± 2
1.3 ± 0.1
16 ± 1
43
Customized
LengthMJ-SHWS013
13
68 ± 2
51
MJ-SHWS016
16
80 ± 2
60
MJ-SHWS019
19
91 ± 2
69
MJ-SHWS025
25
115 ± 2
20 ± 1
72
MJ-SHWS032
32
130 ± 2
84
MJ-SHWS040
40
147 ± 2
96
MJ-SHWS045
45
169 ± 2
114
MJ-SHWS051
51
187 ± 2
128
