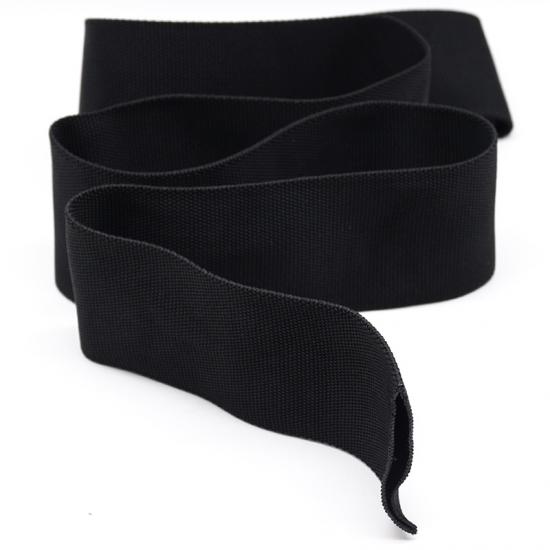

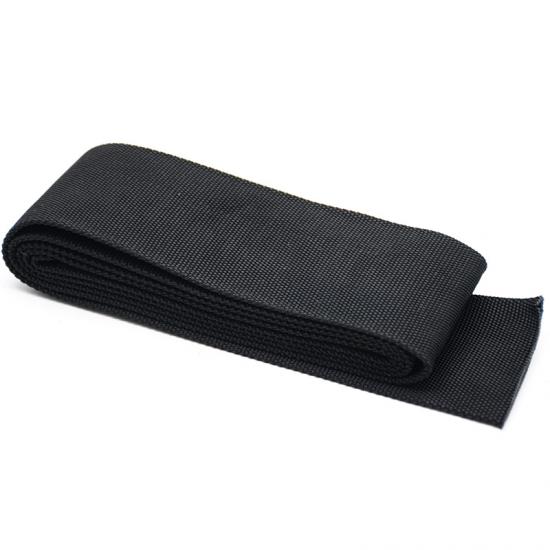

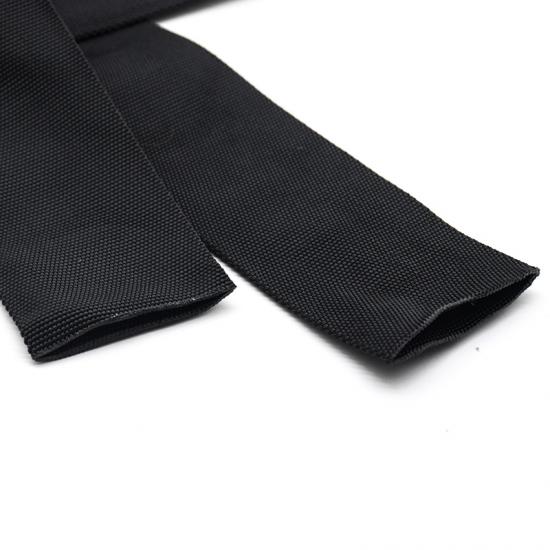

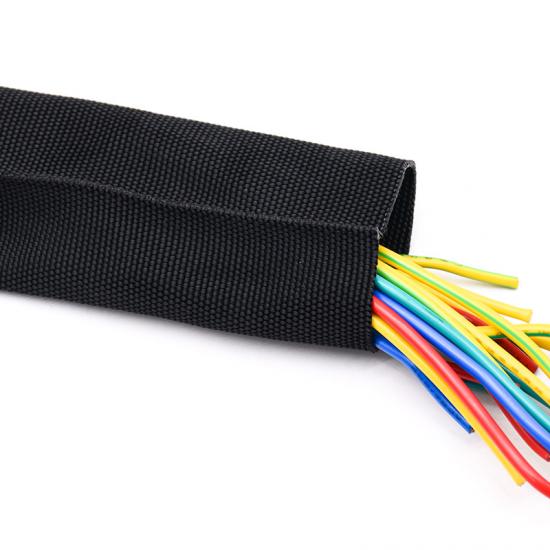

1.2mm T Customizable Multi-size Hydraulic Nylon Sleeve
Customizable hydraulic sleeves add a layer of defense to your hoses without hampering their ability to bend and flex.In dirty, dust-filled environments, air hose protector sleeves can substantially reduce hose damage caused by abrasion.
The nylon hydraulic hose burst protective sleeve is a simple yet vital component for safety-critical hydraulic systems. By containing leaks and shielding hoses, it reduces downtime, protects workers, and ensures compliance with industry regulations.
What's special about nylon protective sleeve?
1.Provides limits burst and containment protection
2.Protects against physical abrasion, damage and deterioration
3.Extremely durable and flexible Nylon
4.Customizable fit your specific application
Physical Properties
Material
Nylon multifilament
Working Temperature
-40℃~ +125℃
Melt Point
220+(-)10℃
MSHA Compliance
MSHA IC293/01
Blasting Resistance
Conform to ISO3457
Abrasion Resistance
Conform to ISO 6945
Flammability
FMVSS 302
Anti-leakage
Conform to SAE J343
UV Resistant
Conform to BS EN13758-1
Standard Color
Black
Cutting Tool
Hot Knife,Scissor
Specification
| Part No |
I.D
(mm)
|
Flat Width
(mm)
|
Wall Thickness
(mm)
|
Packing Length
(m/spool)
|
| HPS-NY-S-017-BK-T12 | 17 | 29 | 1.2±0.1 | 50 |
| HPS-NY-S-020-BK-T12 | 20 | 34 | 1.2±0.1 | 50 |
| HPS-NY-S-023-BK-T12 | 23 | 39 | 1.2±0.1 | 50 |
| HPS-NY-S-025-BK-T12 | 25 | 42 | 1.2±0.1 | 50 |
| HPS-NY-S-027-BK-T12 | 27 | 45 | 1.2±0.1 | 50 |
| HPS-NY-S-031-BK-T12 | 31 | 51 | 1.2±0.1 | 50 |
| HPS-NY-S-033-BK-T12 | 33 | 54 | 1.2±0.1 | 50 |
| HPS-NY-S-036-BK-T12 | 36 | 59 | 1.2±0.1 | 50 |
| HPS-NY-S-040-BK-T12 | 40 | 65 | 1.2±0.1 | 50 |
| HPS-NY-S-044-BK-T12 | 44 | 72 | 1.2±0.1 | 50 |
| HPS-NY-S-047-BK-T12 | 47 | 76 | 1.2±0.1 | 50 |
| HPS-NY-S-050-BK-T12 | 50 | 81 | 1.2±0.1 | 50 |
| HPS-NY-S-053-BK-T12 | 53 | 86 | 1.2±0.1 | 50 |
| HPS-NY-S-055-BK-T12 | 55 | 89 | 1.2±0.1 | 50 |
| HPS-NY-S-060-BK-T12 | 60 | 97 | 1.2±0.1 | 50 |
| HPS-NY-S-063-BK-T12 | 63 | 102 | 1.2±0.1 | 50 |
| HPS-NY-S-066-BK-T12 | 66 | 106 | 1.2±0.1 | 50 |
| HPS-NY-S-073-BK-T12 | 73 | 117 | 1.2±0.1 | 50 |
| HPS-NY-S-078-BK-T12 | 78 | 125 | 1.2±0.1 | 50 |
| HPS-NY-S-085-BK-T12 | 85 | 136 | 1.2±0.1 | 50 |
| HPS-NY-S-093-BK-T12 | 93 | 149 | 1.2±0.1 | 50 |
| HPS-NY-S-099-BK-T12 | 99 | 156 | 1.2±0.1 | 50 |
| HPS-NY-S-106-BK-T12 | 106 | 169 | 1.2±0.1 | 50 |
| HPS-NY-S-112-BK-T12 | 112 | 178 | 1.2±0.1 | 50 |
| HPS-NY-S-125-BK-T12 | 125 | 199 | 1.2±0.1 | 50 |
Application
In high-pressure hydraulic systems, hose failures can lead to dangerous fluid leaks, equipment damage, and even operator injuries. To mitigate these risks, the nylon hydraulic hose burst protective sleeve provides a critical layer of safety.
Construction & Mining Equipment:Excavators, bulldozers, and cranes.
Agriculture Machinery:Tractors, harvesters, and irrigation systems.
Industrial Manufacturing:Presses, injection molding machines, and robotic arms.
Oil & Gas:Offshore rigs and hydraulic fracturing equipmen
