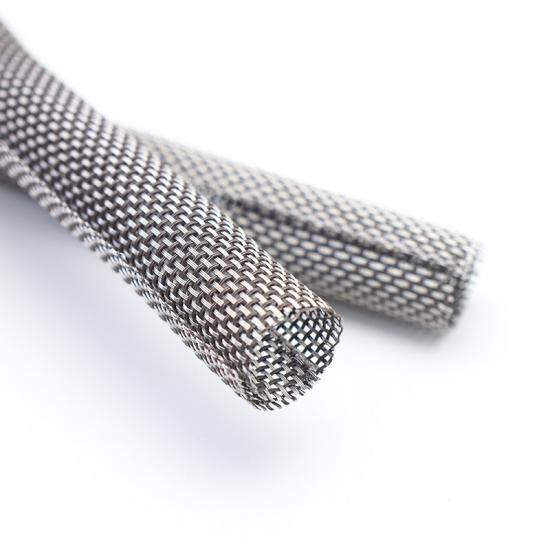

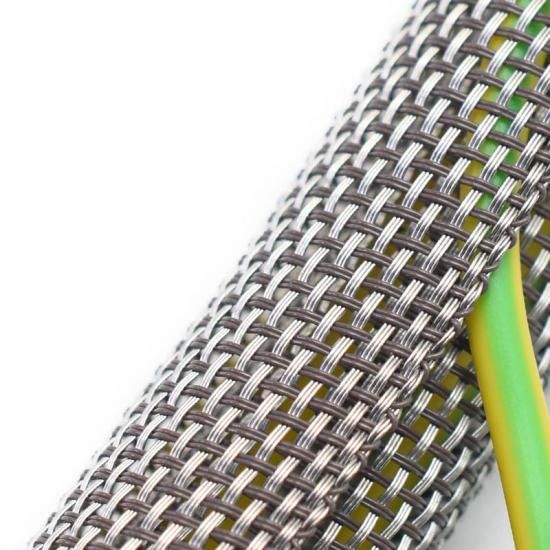

Anti-Chew PET & Stainless Steel Split Braided Cable Sleeve
The Rodent-Resistant PET Stainless Split Sleeving is specifically engineered to solve the three biggest headaches in modern cable management: destructive pest damage, high maintenance labor costs, and complex retrofitting.
First, it permanently eliminates the risk of wire failure caused by rats, mice, or pets chewing through critical lines. Second, it solves the problem of tedious, time-consuming installations—its smart split self-closing design allows you to wrap it directly around active wiring harnesses in seconds, with zero disassembly or tools required. Finally, it addresses harsh environment challenges by providing reliable flame retardancy, wear resistance, and wide-temperature durability. It is the ultimate, time-saving solution to keep your automotive, outdoor, and industrial cable systems fully protected and running uninterrupted.
Physical Properties
Material
Custom PET Monofilament + 304 Stainless Steel Wire
Working Temperature
-40°C to +125°C
Melting Point
240 ± 10°C
Flammability
UL94 V2
Self-Closing Overlap
≧35%
Compliance
RoHS, REACH Compliant
Cutting Tool
Regular Scissors (No hot knife required due to metal blend stability)
What's Special about Anti-Chew PET & Stainless Steel Braided Cable Sleeve
- Ultimate Pest Protection: Woven from tough PET monofilament mixed with stainless steel wires, providing heavy-duty resistance against rodent chewing and pet scratching.

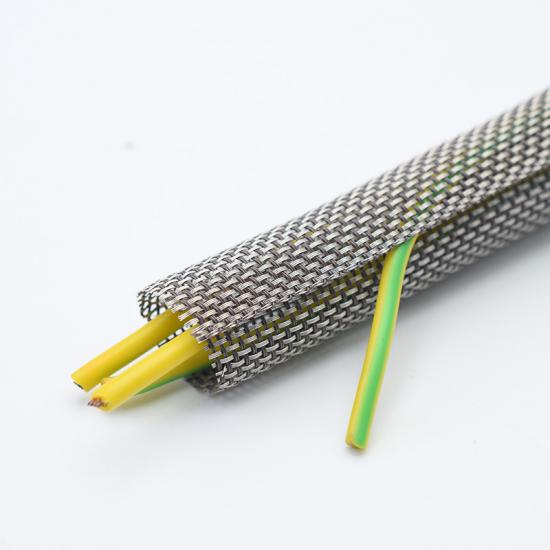

- Smart Self-Closing Design: Features a split overlap structure, allowing instant installation and easy maintenance on existing cable harnesses without removing connectors.
- Rugged Industrial Grade: Flame retardant with an exceptionally wide operating temperature range, ensuring long-lasting durability in harsh environments.
- Global Compliance: Fully RoHS and REACH compliant, making it safe, certified, and ready for global industrial, automotive, and outdoor markets.

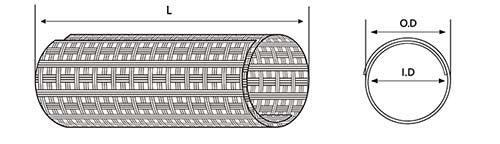

Specification
Part No
Bundle Dia Range(mm)
Min
Max
SBW-PET+SS-006-BR/SV-RR
6
29±3
4
8
200
SBW-PET+SS-008-BR/SV-RR
8
40±5
6
10
100
SBW-PET+SS-010-BR/SV-RR
10
50±5
8
12
100
SBW-PET+SS-013-BR/SV-RR
13
63±5
11
15
100
SBW-PET+SS-016-BR/SV-RR
16
77±5
14
18
100
SBW-PET+SS-019-BR/SV-RR
19
93±5
17
21
50
SBW-PET+SS-025-BR/SV-RR
25
122±5
23
27
25
SBW-PET+SS-038-BR/SV-RR
38
185±5
35
40
25
Enhanced Applications
- Automotive & EV Wiring: Protection inside engine bays against marten and rodent attacks.
- Industrial Automation: Heavy machinery cables exposed to constant friction, sharp debris, or pest risks.
- Outdoor Electrical Installations: Solar panels, outdoor lighting, and telecom infrastructure vulnerable to wildlife damage.
- Household Appliances & Office IT: Preventing pet (cats/dogs) chewing on power cords and server room cable management.
