2:1 Abrasion resistant woven fabric heat shrink tubing

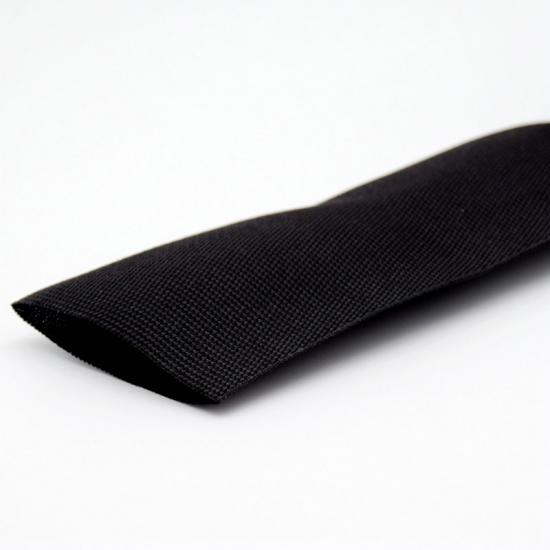

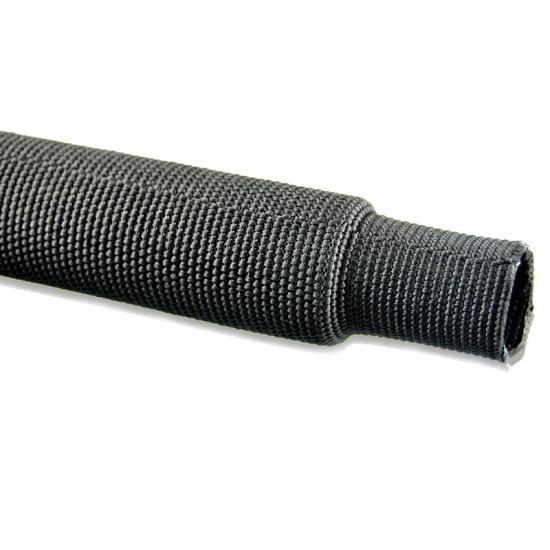

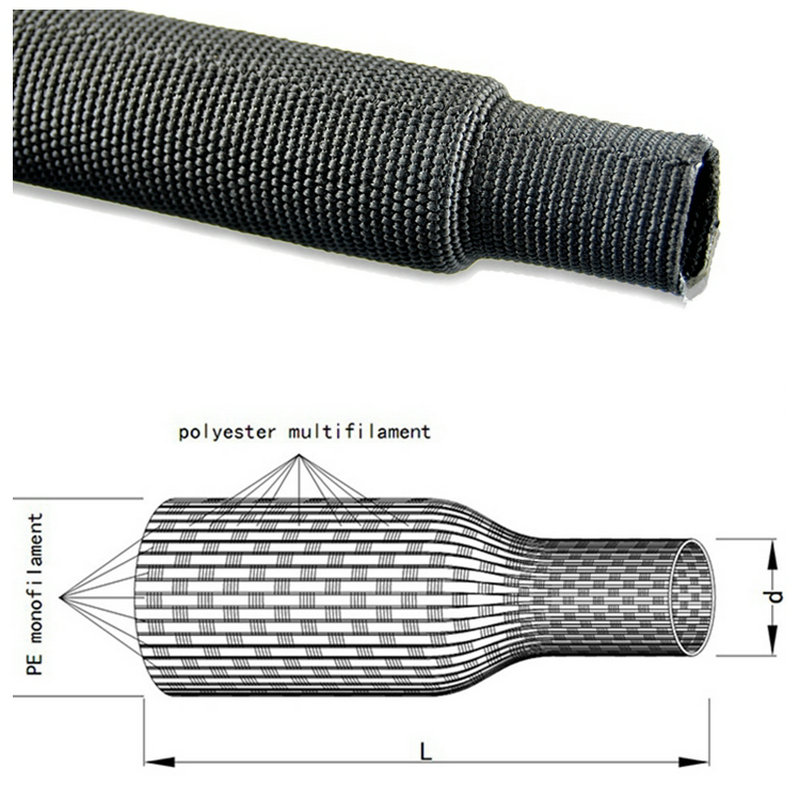

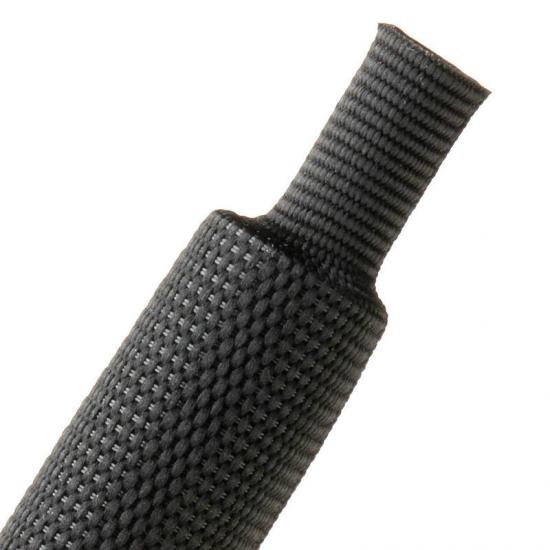

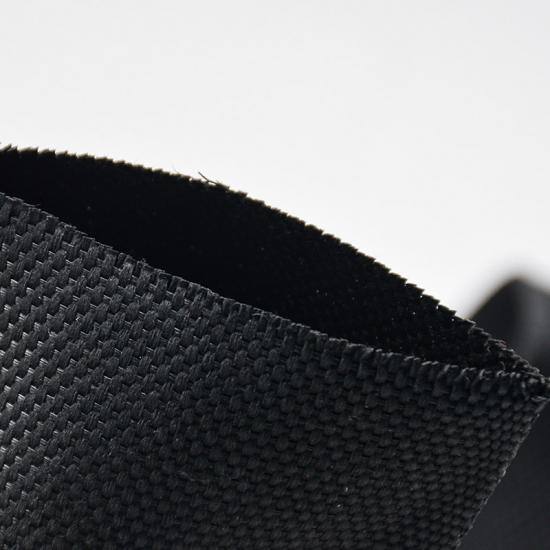

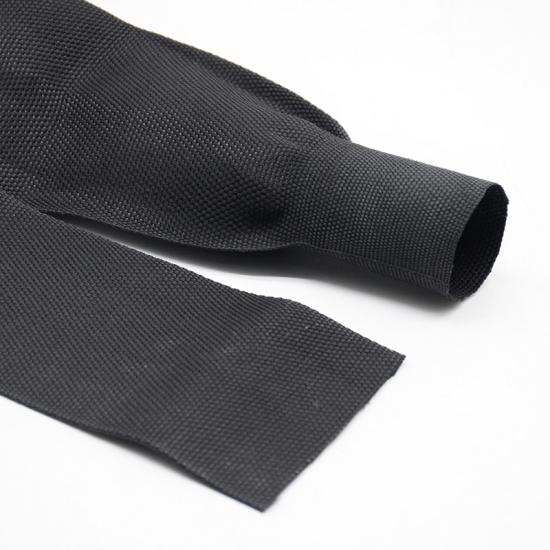

E-FLEX® Fabric Heat Shrink Tubing is constructed from a unique blend of braided polyester fabric and a heat-sensitive polymer coating. Upon heating (150-200°C), it shrinks tightly over cables, hoses, or irregular components. It preserves the high flexibility of textile materials while adding the secure positioning of heat shrink technology, providing a professional finish with enhanced mechanical strength.
What's Special about Heat Shrink Braided Sleeve?
- Meets GMW14327 Class 7 standards, enduring 100,000 cycles for unmatched durability.
- The soft fabric construction effectively eliminates rattles and dampens vibrations.
- Maintains stable performance in harsh environments from -40°C up to +150°C.
- 2:1 shrink ratio; compatible with heat guns or ovens; easily cut with standard scissors.
Physical Properties
Physical Properties
Details
Material
Polyolefin and polyester
Shrink Ratio
2:1
Working Temperature
-40℃ ~ +150℃
High Temperature Resistance
No Bursting after Test at 150℃ for 1000h
Abrasion Resistance
Conform to GMW14327 ＞ class 7（100000 times）
Low Temperature Resistance
No Brittleness at -40℃ for 4h
Storage Temperature
≤60℃
Fluid resistance
Refer to GMW14327
Shrinkage condition
150 ~ 200 ℃（tunnel/oven）
Standard Color
Black
Serviceable Tool
Heat Gun/Tunnel Furnace
Specification
| Part No | As Supplied Size | Fully Recovered Size (d) | Recommended Bundle Dia(mm) | Packing Length (m/spool) | |
| Flat Width | D (ID) | ||||
| HST-FB-010-BK | 18 +2/-2 | 10 | 5 | 5~8 | 100 |
| HST-FB-020-BK | 37 +3/-2 | 20 | 10 | 10~16 | 100 |
| HST-FB-025-BK | 45 +3/-2 | 25 | 12.5 | 13~21 | 100 |
| HST-FB-030-BK | 56 +3/-2 | 30 | 15 | 15~24 | 100 |
| HST-FB-034-BK | 57 +3/-2 | 34 | 17 | 17~27 | 100 |
| HST-FB-040-BK | 68 +3/-3 | 40 | 20 | 20~32 | 100 |
| HST-FB-050-BK | 83 +3/-3 | 50 | 25 | 25~40 | 100 |
| HST-FB-056-BK | 94 +3/-3 | 56 | 28 | 28~45 | 100 |
| HST-FB-060-BK | 97 +8/-5 | 60 | 30 | 30~48 | 100 |
| HST-FB-070-BK | 115 +8/-5 | 35 | 35 | 35~56 | 50 |
| HST-FB-080-BK | 130 +8/-5 | 40 | 40 | 40~64 | 50 |
| HST-FB-090-BK | 143 +8/-5 | 45 | 45 | 45~72 | 50 |
| HST-FB-100-BK | 160 +10/-5 | 100 | 50 | 50~80 | 50 |
Application

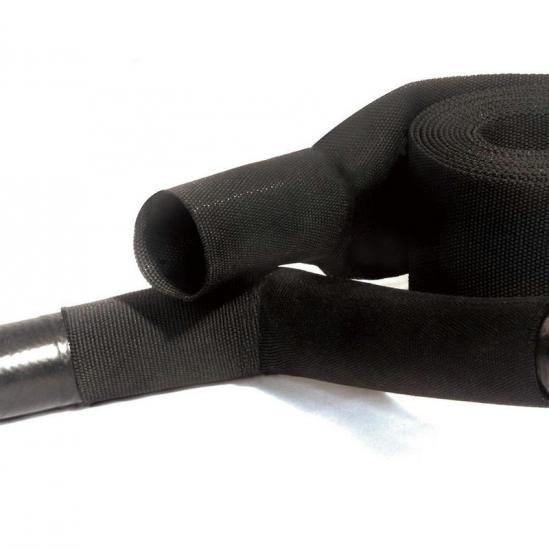

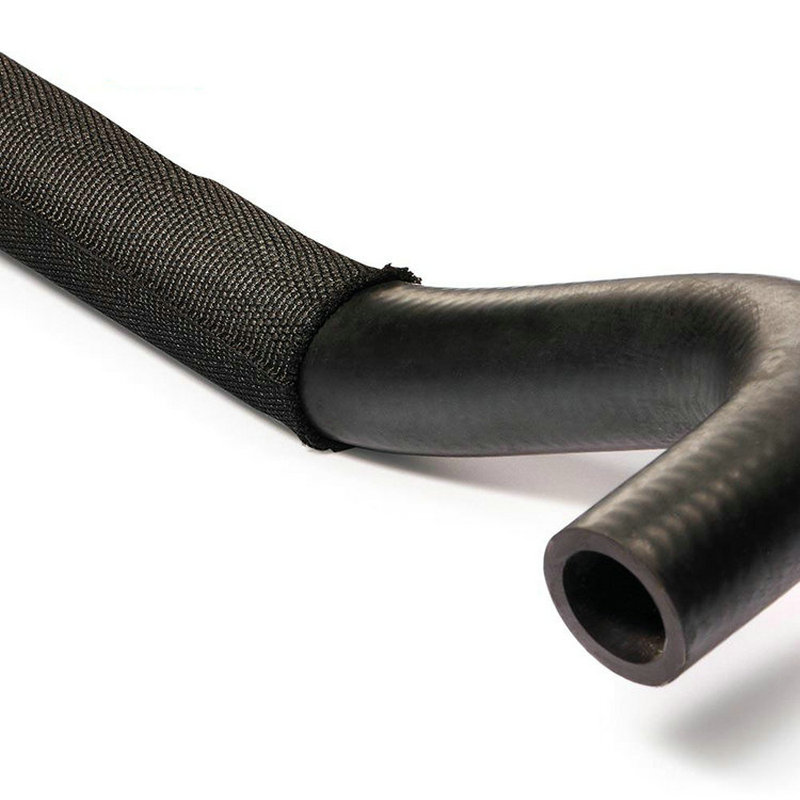

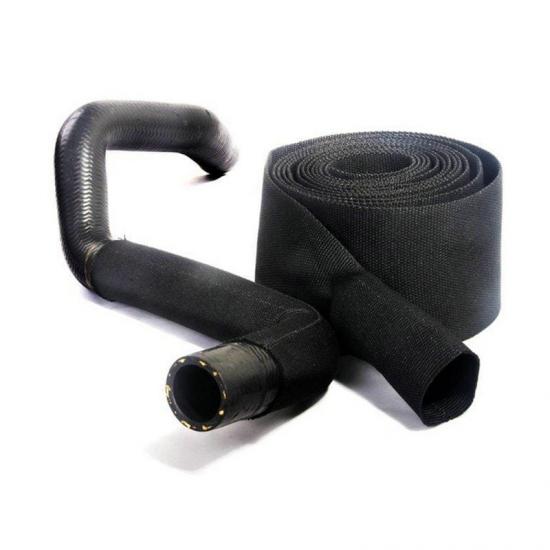

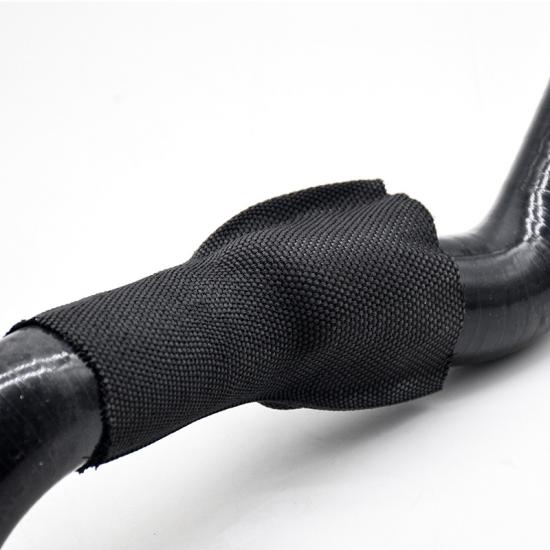

- Protects engine harnesses, rubber hoses, and AC pipes from friction and noise.
- Abrasion protection for cables and insulation for irregular joints in rail systems.
- Ideal for cables in high-vibration and moving parts of automated machinery.
