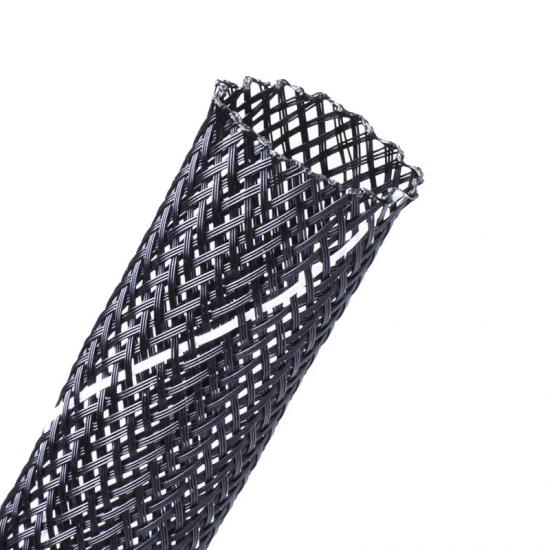

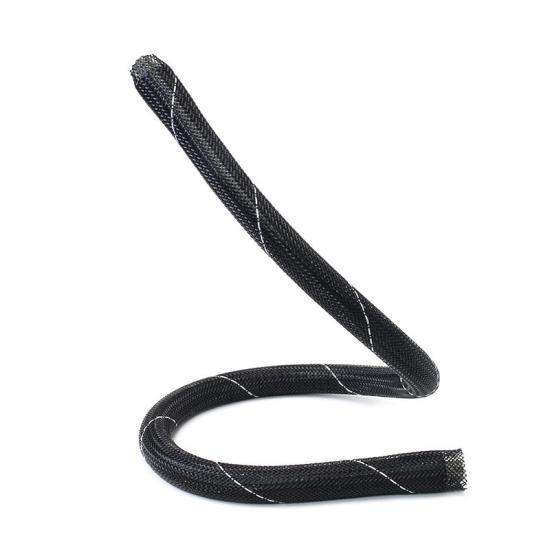

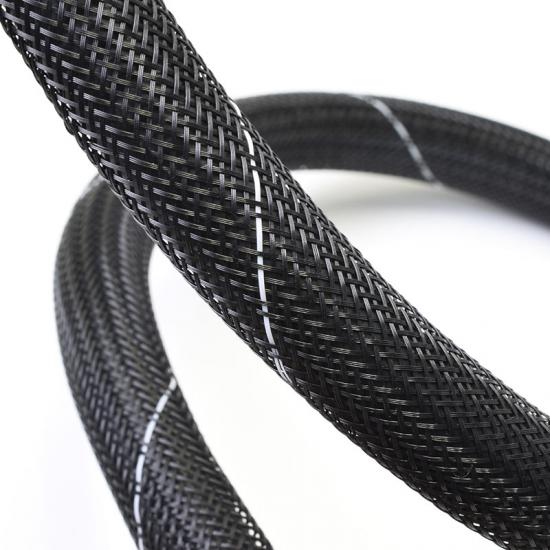

High Flame Retardant PET Expandable Braided Sleeving
Engineered for mission-critical applications, E-FLEX® FR Braided Cable Sleeving combines advanced material science with superior fire safety. Utilizing high-tenacity, flame-retardant PET monofilaments, this sleeving is specifically designed to meet the rigorous safety demands of modern transportation and high-tech industries. It offers a lightweight, highly flexible shield that excels in both thermal endurance and mechanical protection.
The high flame retardant PET expandable sleeving are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Certifications
Physical Properties
Physical Properties
Details
Material
PET Monofilament
Working Temperature
-40°C ~ +150°C
Melt Point
240(±10)°C
Low temperature resistance
No signs of embrittlement or degradation after test at -40°C for 4h
Heat aging resistance
No signs of embrittlement or degradation after test at 158°C for 168h
Flammability
UL94 V0,VW-1,EN45545-2
UL-File Number
E533019
Abrasion Resistance
Medium
Standard Color
Black
Certification
Rohs, Reach, Halogen Free, UL
Halogen Free
Yes
UV Resistant
Yes
Cutting Tool
Hot Knife
Performance Comparison
Feature
Standard PET Sleeve
High Flame-Retardant PET Sleeve
Flammability
VW-1,FMVSS302
UL94 V0,EN45545-2
Abrasion Resistance
✔✔✔
✔✔✔✔
Chemical Resistance
✔✔✔
✔✔✔✔
Ideal Use Cases
General wiring
High-risk fire zones
What's Special about High Flame Retardant PET Expandable Sleeving?
1.Dual-Certified Fire Safety (UL94 V-0 & EN45545-2)：Not just self-extinguishing, but compliant with the strictest European rail fire safety standards.
2.Extended Thermal Endurance (+150°C)：Outperforms standard PET sleeves with a 150°C continuous operating temperature—ideal for high-heat industrial zones.
3.LSZH Safety (Low Smoke Zero Halogen): Excellent abrasion, solvent, and oil resistanceZero halogen construction ensures no toxic outgassing and minimal smoke during combustion, protecting lives in confined spaces.
4.CHarsh Environment Resilience: Resistant to fuel, salt spray, cleaning agentsResistant to UV radiation, salt spray, fuels, and common solvents; maintains structural integrity under extreme mechanical stress.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-BK-FR | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 800 |
| BRS-PET-006-BK-FR | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-BK-FR | 5/16” | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-BK-FR | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-BK-FR | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 300 |
| BRS-PET-016-BK-FR | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-020-BK-FR | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-BK-FR | 1” | 25 | 18 | 33 | 0.65±0.05 | 200 |
| BRS-PET-032-BK-FR | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 150 |
| BRS-PET-038-BK-FR | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-BK-FR | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-BK-FR | 2” | 50 | 40 | 80 | 0.65±0.05 | 100 |
| BRS-PET-064-BK-FR | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-BK-FR | 3” | 76 | 64 | 120 | 0.65±0.05 | 100 |
Recommended Applications
UL94V0 fire retardant braided sleeving widely use in railway vehicles, machine tools, robotics and automatic equipment,electronic and high tech applications where flame retardance and durability are primary concerns.
- Railway and Metro Cables
- Industrial Automation Systems
- Automotive Wiring Harnesses
- High-Voltage Power Systems
- Telecom & Data Cabling
- Electrical Panels and Enclosures
FAQ
1. Do you provide free samples?
• Special cases may be approved by management
• Black standard samples: 1–2 meters free, freight collected
• Colored / ODM samples: extra cost depending on supplier
................................................................................................................................................................................................................................................
2. What is your minimum order quantity (MOQ)?
• Black standard products: MOQ = one roll (first 3 orders allowed)
• Standard colors: usually 2000 meters (depends on yarn inventory)
................................................................................................................................................................................................................................................
3.What is your typical lead time?
Regular lead time: around 10 days
Urgent orders: about 5 days
................................................................................................................................................................................................................................................
4. Do your products have UL certification?
Yes. Our PET braided sleeving, self-closing braided wrap, textile wrap, self-closing conduit, and full-elastic wrap are UL-certified.
................................................................................................................................................................................................................................................
5. Do you have ISO and other quality system certifications?
Yes. We are certified with:
• ISO 9001
• ISO 14001
• ISO 13485 (medical)
• IATF 16949 (automotive)
................................................................................................................................................................................................................................................
6. Can you customize packaging?
Yes, based on required quantity and product type.
