 175℃ Pvdf Heat Shrinkable Tube

175℃ Pvdf Heat Shrinkable Tube

PVDF Heat shrink tubing made of special irradiation cross-linked medical-grade fluoropolymer with outstanding chemical and solvent resistance and high-temperature performance.


It is especially suitable for medical applications requiring high-temperature performance and fluid resistance.

  • Item no.:

    MJ-HST-PVDF

  • Material:

    PVDF

  • Working Temperature:

    -55℃～175℃

  • Standard Color:

    Clear

  • Certification:

    ROHS

  • Cutting Tool:

    Scissor

  • Size:

    1.0mm~25.4mm
Inquire now
Product Details

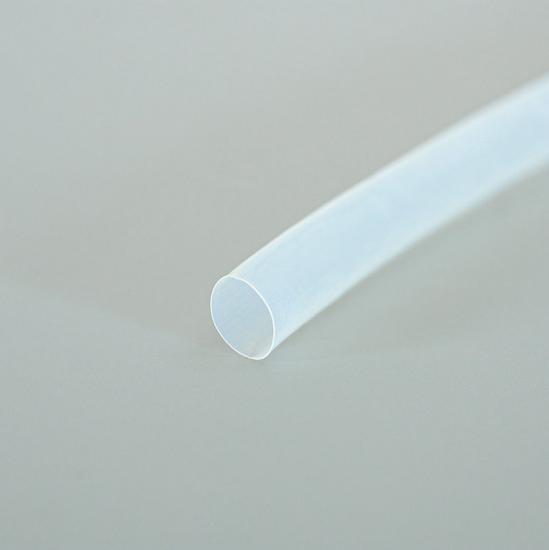

175℃ Pvdf Heat Shrinkable Tube


PVDF heat shrink tubing made of special irradiation cross-linked medical-grade polyvinylidene fluoride,with outstanding chemical and solvent resistance and high-temperature performance.


PVDF shrink tubing are semi-rigid, abrasion-resistant, non-flammable Fitcotube® heat-shrink tubing for reliable insulation and excellent mechanical protection of wires and components. Also suitable for high ambient temperatures and protection of soldered and crimped connections.


Pvdf Heat Shrink Tubing



Physical properties


Material Irradiated cross-linked semi-rigid flame-retardant PVDF
Shrink Ratio 2:1
Working temperature -55℃~ 175℃
Minimum shrink temperature
 155℃
Minimum fully recovery temperature
 175℃
Specific Gravity
 ≤1.80
Radial Shrinking Ratio
 ≥50%
Longitudinal Shrinking Ratio
 ≤5%
Tensile Strength
 ≥30 Mpa
Elongation Ratio
 ≥150%
Heat Shockz(300℃,4h)
No Cracking
Cold Bend(-55℃,4h)
 No Cracking
Aging in circulating-air oven
 （225±1.0）℃,7days
Elongation ratio(after aging)
 ≥75%
Volume resistivity(Ω·cm)
 ≥1014
Dielectric strength(kV/mm)
 ≥15.7
Concentricity
 ≥70%
Flammability Rating
 VW-1
Standard Color Clear
Colors Available
Certificated ROHS


Application

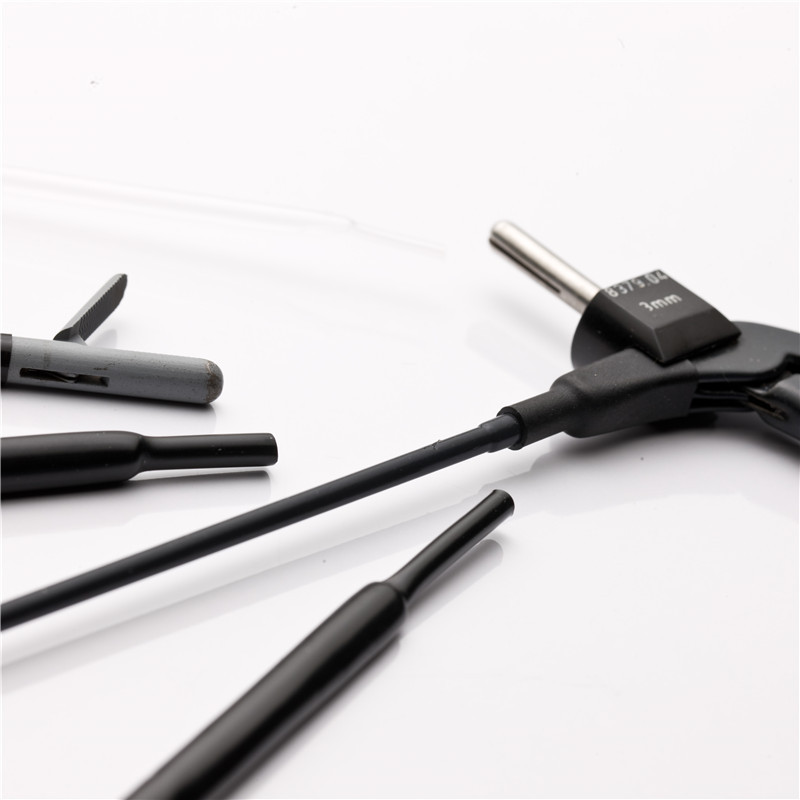

1.Insulation and protection of thermistors, resistors and capacitors

2.Protection for wire and devices which are used under high temperature or exposed to chemicals and oils

3.Mechanical protection for metal wire

4.Fixing and protection of cable markers

5.Insulation and protection of thermistors, resistors and capacitors

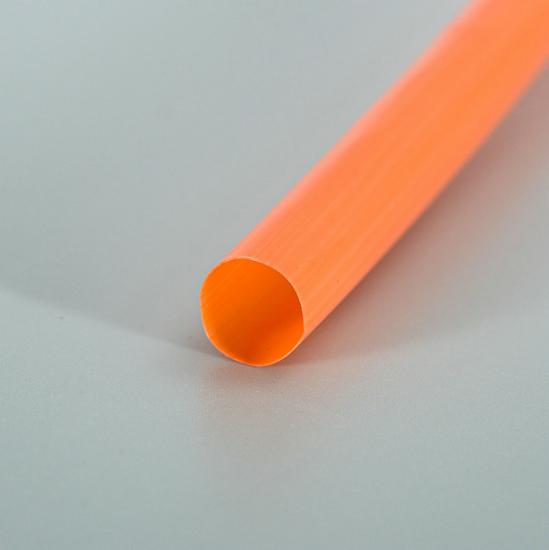

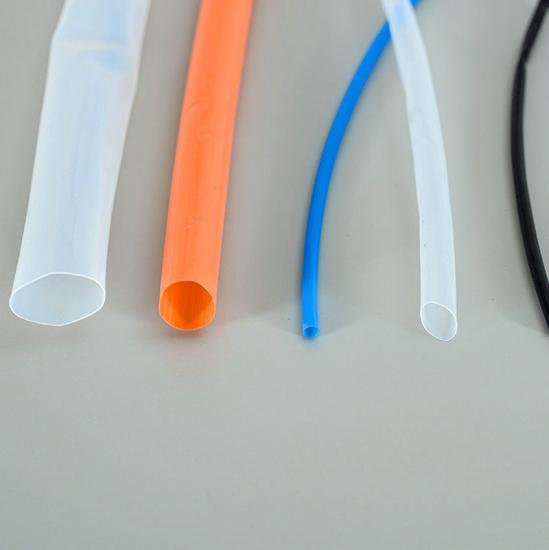

Colors


Black, Red, Green, Blue, White, Clear


Specification

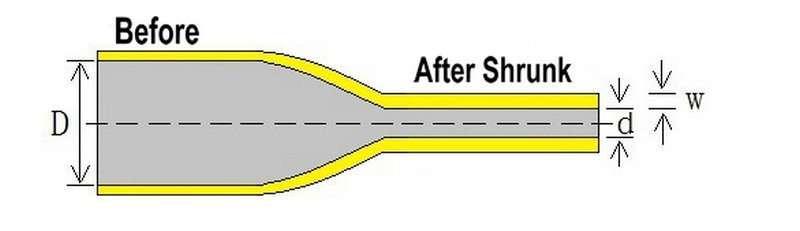

Part No Size(mm) As Superlied(mm) After Recovered(mm)
Innder Dia(D) Thickness(T) Inner Dia(d) Thickness(t)
MJ-HST-PVDF1.2 Φ1.2
 1.4+0.2/-0.1 0.12±0.05 ≤0.6
 0.25±0.05
MJ-HST-PVDF1.6
 Φ1.6
 1.8+0.2/-0.1
 0.12±0.05 ≤0.8
 0.25±0.05
MJ-HST-PVDF2.4
 Φ2.4
 2.7+0.3/-0.1
 0.13±0.05 ≤1.2
 0.25±0.05
MJ-HST-PVDF3.2
 Φ3.2
 3.5+0.3/-0.1
 0.13±0.05 ≤1.6
 0.25±0.05
MJ-HST-PVDF3.8
 Φ3.8
 4.0+0.3/-0.1
 0.13±0.05 ≤1.9
 0.25±0.05
MJ-HST-PVDF4.8
 Φ4.8
 5.1+0.3/-0.1
 0.13±0.05 ≤2.4
 0.25±0.05
MJ-HST-PVDF6.4
 Φ6.4
 6.7+0.3/-0.1
 0.16±0.05 ≤3.2
 0.33±0.05
MJ-HST-PVDF9.5
 Φ9.5
 9.7+0.3/-0.1
 0.16±0.05 ≤4.8
 0.33±0.05
MJ-HST-PVDF12.7
 Φ12.7
 12.8+0.3/-0.1
 0.16±0.05 ≤6.4
 0.33±0.05
MJ-HST-PVDF19.1
 Φ19.1
 19.9+0.5/-0.1
 0.22±0.05 ≤9.5
 0.43±0.08
MJ-HST-PVDF25.4
 Φ25.4
 25.7+0.5/-0.1
 0.22±0.05 ≤12.7
 0.43±0.08
