Hook and Loop Hydraulic Hose Protection Wrap

MJ hydraulic hose wrap velcro consist of polyester multifilament sleeve and nylon velcro,it design for organizing and controlling cables and hoses that are subject to constant exposure.

  • Item no.:

    VTW-PVT
  • Min order:

    500m
  • Material:

    Polyester multifilament sleeve+nylon hook and loop
  • Working Temperature:

    -40℃ to 125℃
  • Melt Point:

    240+(-)10℃
  • Standard Color:

    Black
  • Cutting Tool:

    NA
  • Size:

    13mm~64mm
Product Details

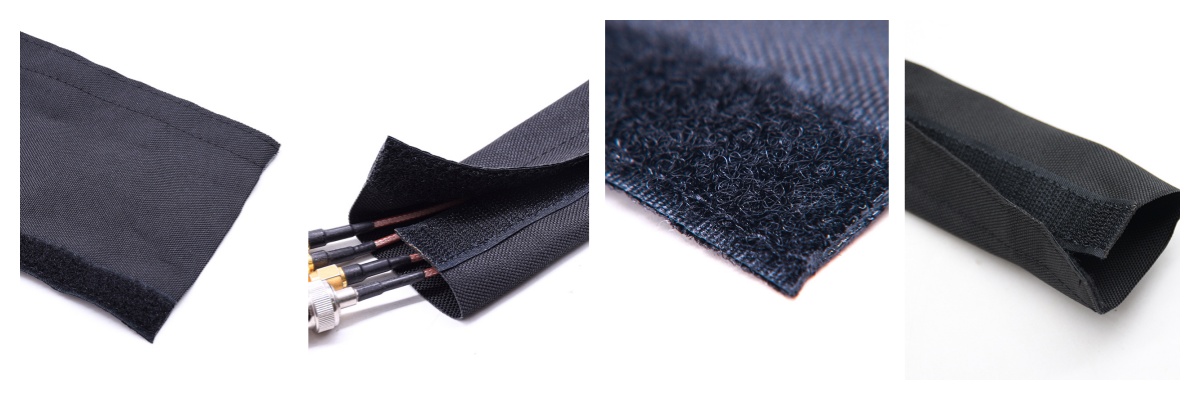

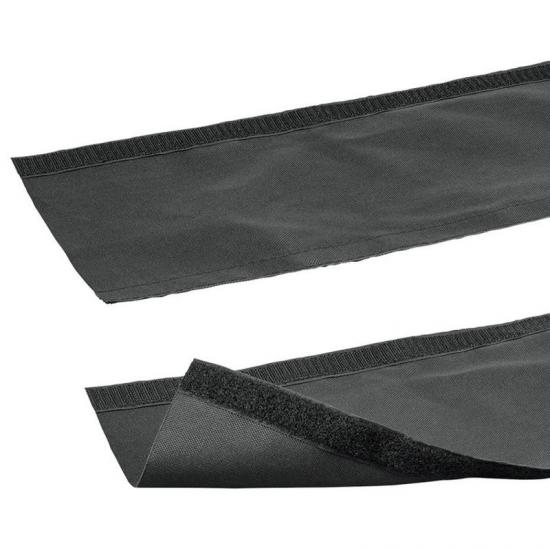

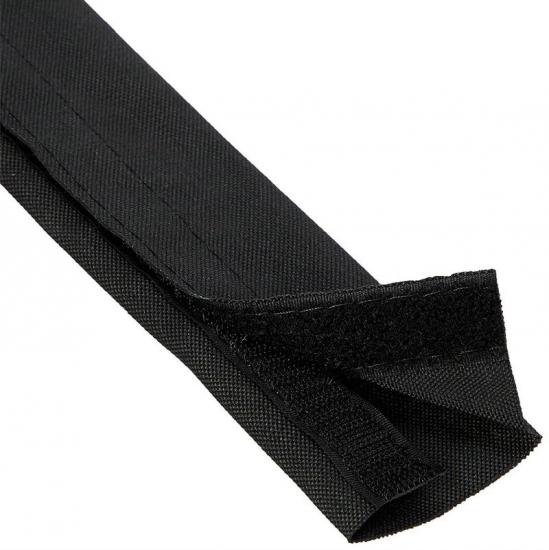

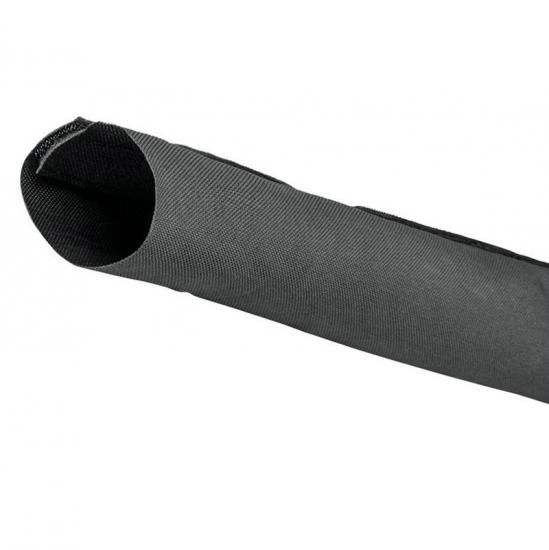

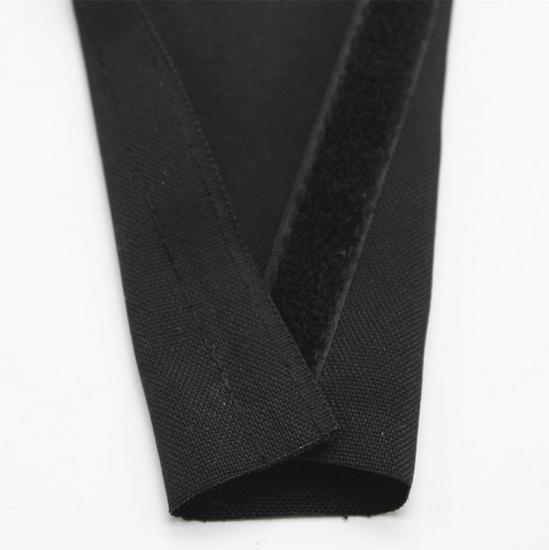

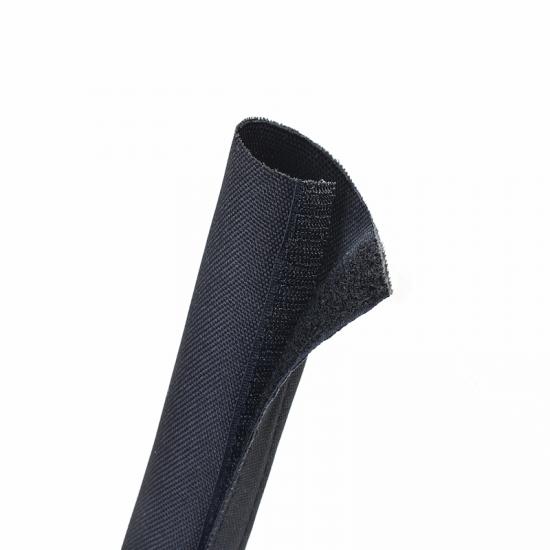

Hook and Loop Hydraulic Hose Protection Wrap


Hydraulic hose wrap made of heay duty polyester multifilament and sewing on a nylon hook and loop fastener. which can be protected cables and wires from damage caused by accidents, abrasions, or other safety hazards.

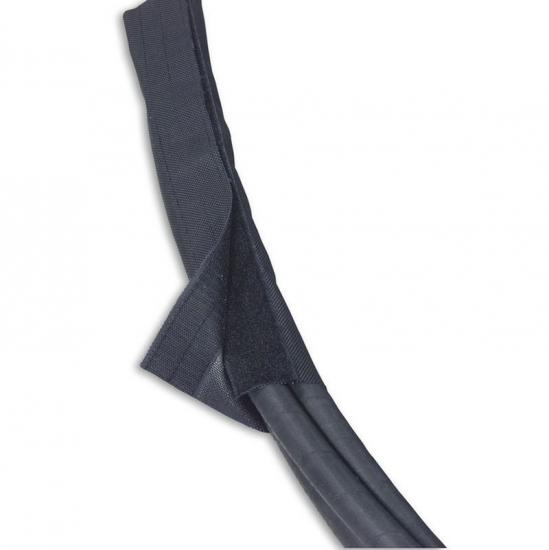

Hydraulic hose protection wrap easy to install over single or multiple hoses. The high strength and durability also help to protect operators or other personnel safe from high-pressure fluids that may be travelling in the hoses.


Velcro hose sleeve is used on wires to keep them together, on hoses and cables to prevent abrasion damage or on chains to keep them from ruining expensive finished surfaces.



What's special about hook and loop hose wrap?

1.Made of polyester multifilalment sleeve+nylon velcro

2.Lightweight & heavy duty

3.Extremely Abrasion and Cut Resistant

4.Hook and loop structure provide easy fastening

5.Quick and easy install or remove

6.Resists gasoline, chemicals & cleaning Solvents

7.Keep cables neat and tidy



Physical Properties


Material Polyester multifilament sleeve+nylon velcro
Working Temperature -40℃ to 125℃
Melt Point 240+(-)10℃
Flammability UL94V2
Standard Color Black
Certification ROHS,Reach

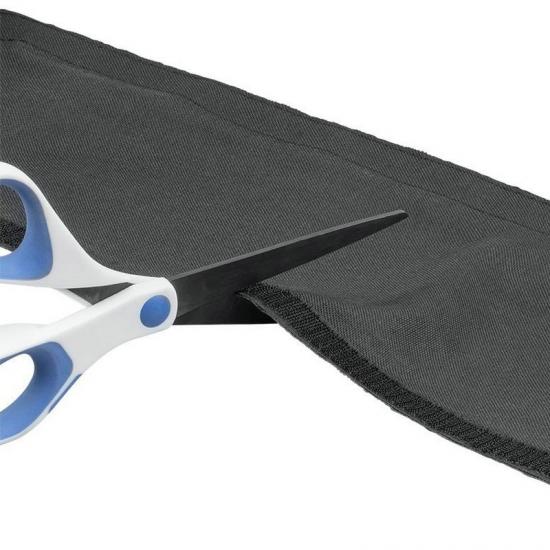

Cutting Tool Scissor,Hot Knife


Specification


Part No
ID
mm
Spread Width
(mm)
Width of
Hook and Loop
(mm)
Packing Length
(m/spool)
VTW-PVT-016-BK 16  70  20  50
VTW-PVT-020-BK 20  85  20  50
VTW-PVT-025-BK 25  100  20  50
VTW-PVT-030-BK 30  115  20  50
VTW-PVT-035-BK 35  130  20  50
VTW-PVT-040-BK 40  145  20  50
VTW-PVT-050-BK 50  177  20  50
VTW-PVT-060-BK 60  210  20  50
VTW-PVT-070-BK 70  240  20  50
VTW-PVT-080-BK 80  270  20  50
VTW-PVT-090-BK 90  305  20  50
VTW-PVT-100-BK 100  335  20  50
Note:other specifications can be customized according to customer


Application


Braided hose covers ideal for quick and easy cable management in homes, offices, and even

automotive, marine and other industry, it use for keeping wires or hoses together or covering chains and

hoses to protect the surfaces they run across.

Related products
Burst Guard Nylon Hose Sleeve
Black with Yellow Inner Liner Burst Guard Nylon Hose Double Sleeve
The double-layered Burst Guard Sleeve is made of nylon multi-filament. In line of sight operations, it is our heaviest performance sleeve and was made with superior abrasion protection, weather resistance, and hose burst management in mind.
Hydraulic Nylon Sleeve
1.2mm T Customizable Multi-size Hydraulic Nylon Sleeve
Hydraulic hose nylon protective sleeves can prevent damage that can stop your equipment in the field, further complicating repairs and slowing down production. Get a hydraulic hose protector that withstands harsh environments and doesn’t compromise flexibility.

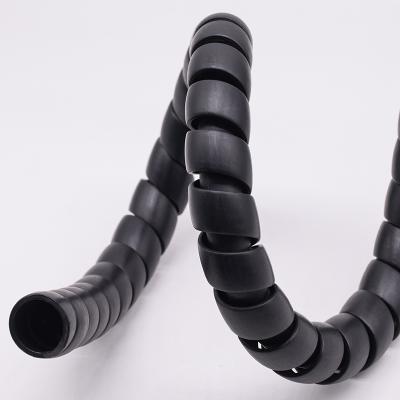

spiral guard hose protector
