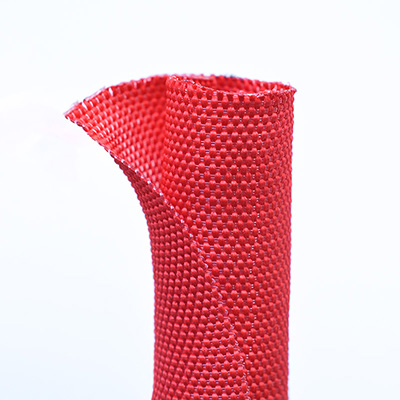

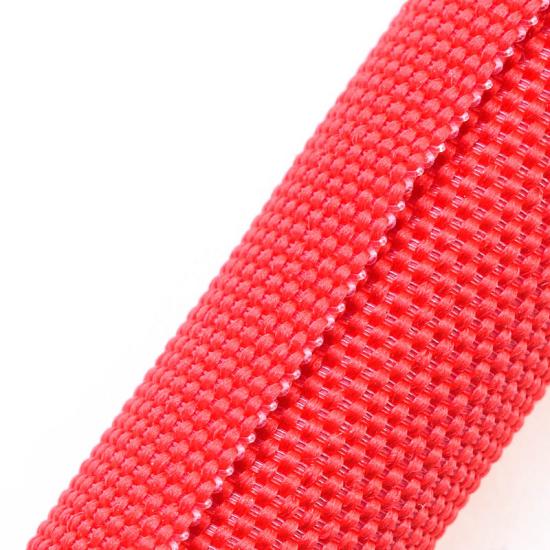

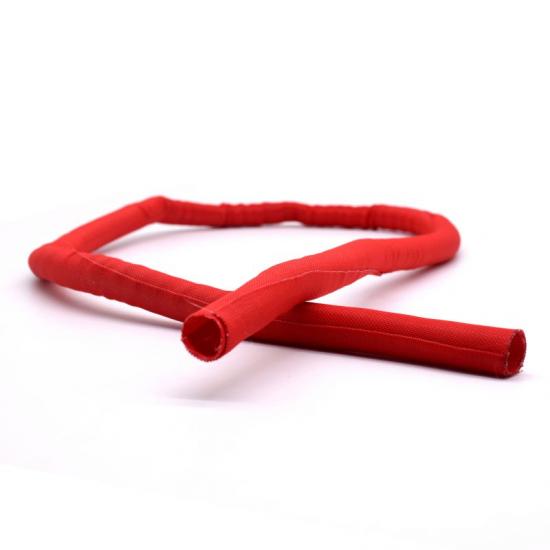

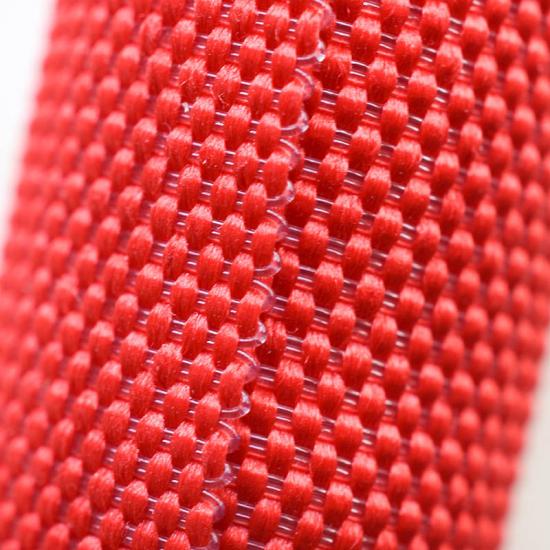

Red woven split wire loom made of PET multifilament and monofilament. It has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry. The special braid construction permits to be superior elastic flexibility with unbeatable coverage over any harness assembly.
The woven split loom is extremely lightweight, has high abrasion resistance, flame retardant, UV resistance, and resists most oils, common fuels, and solvents. It keeps high performance in a wide operating temperature range.
The split loom wire wrap is woven and popularly used in electronics, automotive, railway, marine, industrial wire harnessing, and home/office, cable management applications where cost efficiency and durability are critical.
Features

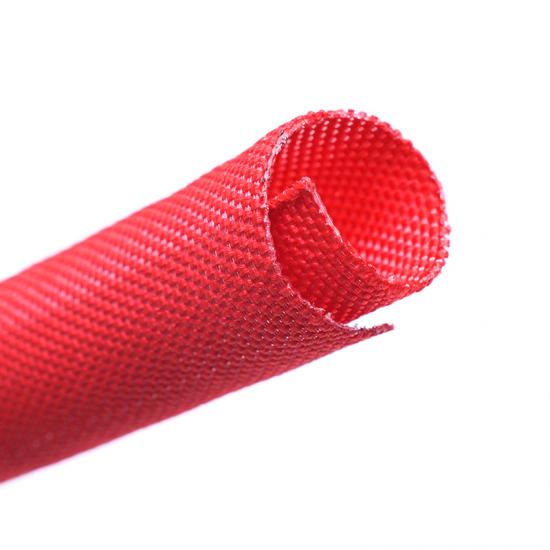

1. Full coverage, self-wrapping design.
2. 25% or 50% edge overlap.
3. Halogen free-Rohs compliant.
4. Complied to HL2 according to the railway standard DIN en45545-2.
5. UL94V0 flammability.
6. Resists common chemicals, solvents, and UV damage.
7. Split to allow breakouts and easy access.
Physical properties
Material: PET multifilament+monofilament
Working temperature: -40℃ to 150℃
Melt point:240±10℃
Flammability: UL94 V0
Standard color: Black
Certification: Rohs, Reach, Halogen-free, UL
Cutting tool: Hot knife
Application
Woven split black braided wire loom is widely used for industrial cable, electronic communication, power systems, A/V cable, HDMI cable, wire harness, pneumatic hoses, hydraulic lines, and highly polished or threaded machine parts, due to its open weave design with high abrasion resistance and high flame retardant.
DATASHEET |
|||||
PART NO |
NOMINAL SIZE |
OVERLAP |
MAX BUNDLE DIA |
PACKING |
|
INCH |
MM |
(M/SPOOL) |
|||
MJ-STHW003 |
1/8" |
3 |
25% |
4 |
100 |
MJ-STHW005 |
1/4" |
5 |
6 |
100 |
|
MJ-STHW008 |
5/16" |
8 |
9 |
100 |
|
MJ-STHW009 |
3/8" |
10 |
11 |
50 |
|
MJ-STHW013 |
1/2" |
13 |
14 |
50 |
|
MJ-STHW016 |
5/8" |
16 |
17 |
25 |
|
MJ-STHW019 |
3/4" |
19 |
20 |
25 |
|
MJ-STHW025 |
1" |
25 |
27 |
25 |
|
MJ-STHW029 |
1-1/8" |
29 |
31 |
25 |
|
MJ-STHW032 |
1-1/4" |
32 |
34 |
25 |
|
MJ-STHW038 |
1-1/2" |
38 |
40 |
25 |
|
MJ-STHW050 |
2" |
50 |
52 |
25 |
