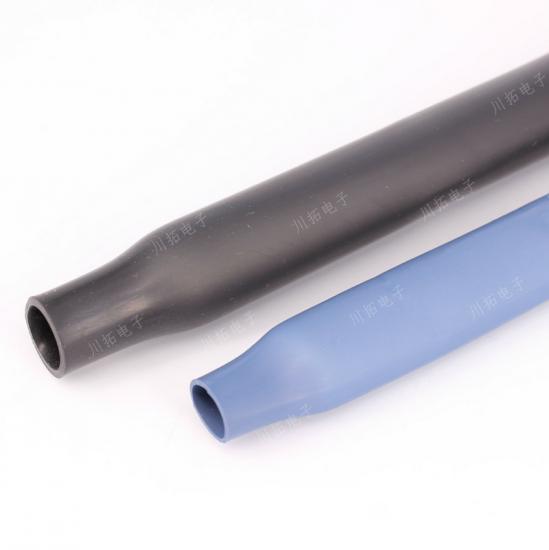

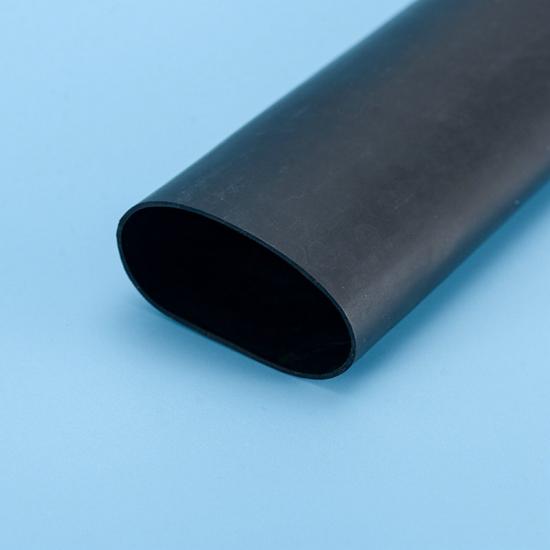

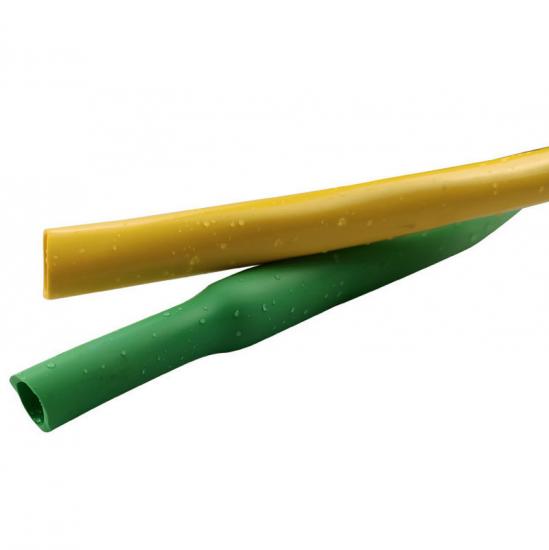

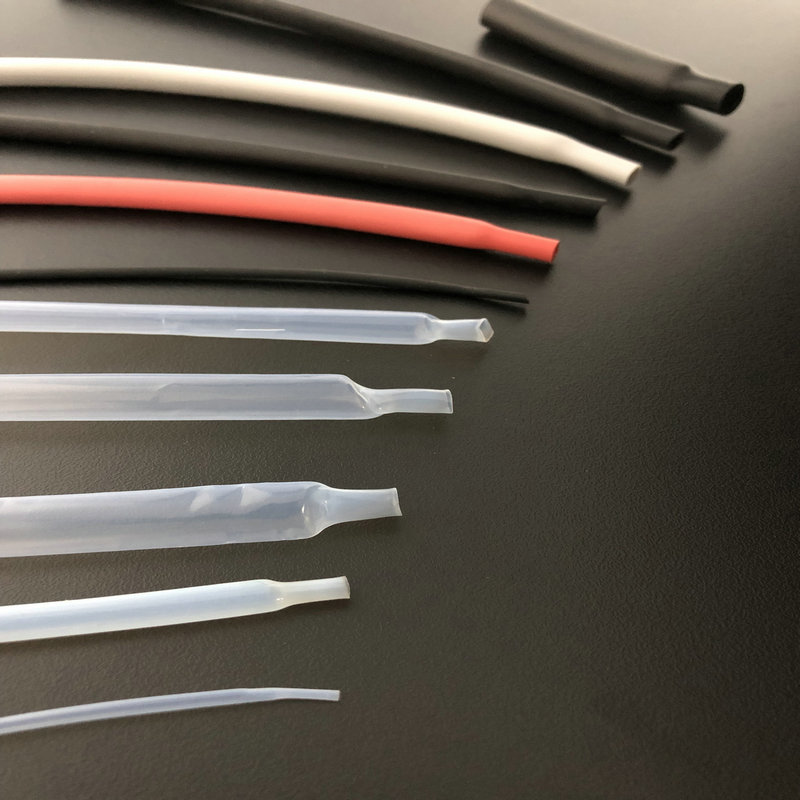

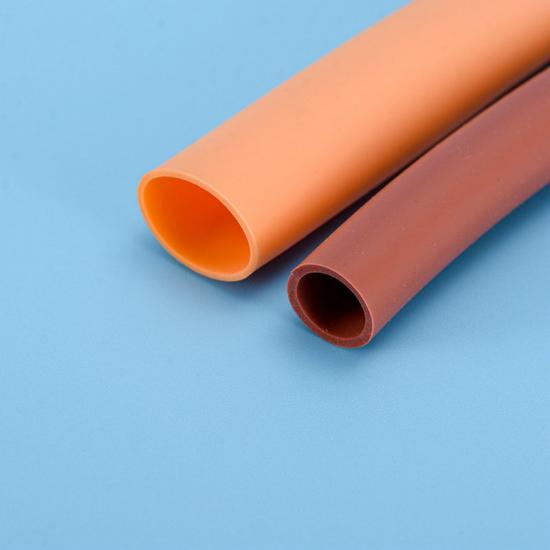

Silicone Rubber Heat Shrink Tubing
Silicone rubber heat shrink tubing have superior heat and cold resistance, flexibility, and electrical insulative properties. They typically maintain their performance characteristics over a wide temperature range, from -40°C to +200°C.
It with an excellent balance of physical and electrical properties. The tubing resists extreme heat shock and exhibits good thermal insulation
What's special about silicone heat shrink?
1.Cross-linked Silicone
2.Highly flame retardant
3.Thermal insulation & heat shock protection
4.High & low temperature resistance
5.Excellent flexibility
6.Shrink ratio 1.7:1
7.Voltage class: 1000 V
8.Acid and alkali resistance, corona resistance, mildew resistance
Physical Properties
| Material | Silicone rubber |
| Shrink Ratio | 1.7:1 |
| Working Temperature |
-40℃ to 200℃ |
|
Start Shrink Temperature |
90℃ |
|
Minimum Complete Shrink Temperature |
170℃ |
|
Longitudinal Shrinkage |
5% |
|
Flammability |
VW-1 |
| Standard Color | Black |
| Colored | Available |
| Certification | UL,ROHS,Reach,Halogen free |
| Shrinking Tool | Hot Gun,Oven |
| Cutting Tool | Scissor |
Specification
| Part No | Unshrink Size(mm) | Shrink Ratio |
After Shrunk Size(mm) |
Packing Length | ||
| Dia(D) | Thickness(T) | Dia(d) | Thickness(t) | |||
| MJ-HST-S-1.0 | 1.0 | 0.5±0.1 | 1.7:1 | ≦0.6 | 1.1±0.15 | 200m/spool |
| MJ-HST-S-2.0 | 2.0 |
0.5±0.1 |
1.7:1 | ≦1.2 | 1.1±0.15 | 200m/spool |
| MJ-HST-S-3.0 | 3.0 | 0.5±0.1 | 1.7:1 | ≦1.8 | 1.1±0.15 | 100m/spool |
| MJ-HST-S-4.0 | 4.0 | 0.5±0.1 | 1.7:1 | ≦2.5 | 1.1±0.15 | 100m/spool |
| MJ-HST-S-5.0 | 5.0 | 0.5±0.1 | 1.7:1 | ≦3.0 | 1.1±0.15 | 100m/spool |
| MJ-HST-S-6.0 | 6.0 | 0.5±0.1 | 1.7:1 | ≦3.8 | 1.1±0.15 | 100m/spool |
| MJ-HST-S-7.0 | 7.0 | 0.5±0.1 | 1.7:1 | ≦4.0 | 1.1±0.15 | 100m/spool |
| MJ-HST-S-8.0 | 8.0 | 0.5±0.1 | 1.7:1 | ≦4.8 | 1.1±0.15 | 50m/spool |
| MJ-HST-S-9.0 | 9.0 | 0.5±0.1 | 1.7:1 | ≦5.0 | 1.1±0.15 | 50m/spool |
| MJ-HST-S-10.0 | 10.0 | 1.0±0.1 | 1.7:1 | ≦6.5 | 2.5±0.15 | 50m/spool |
| MJ-HST-S-12.0 | 12.0 | 1.0±0.1 | 1.7:1 | ≦7.0 | 2.5±0.15 | 50m/spool |
| MJ-HST-S-15.0 | 15.0 | 1.0±0.1 | 1.7:1 | ≦9.0 | 2.5±0.15 | 50m/spool |
| MJ-HST-S-20.0 | 20.0 | 1.0±0.1 | 1.7:1 | ≦13.0 | 2.5±0.15 | 50m/spool |
| MJ-HST-S-25.0 | 25.0 | 1.0±0.1 | 1.7:1 | ≦15.0 | 2.5±0.15 | 25m/spool |
| MJ-HST-S-30.0 | 30.0 | 1.0±0.1 | 1.7:1 | ≦18.0 | 2.5±0.15 | 25m/spool |
| MJ-HST-S-35.0 | 35.0 | 1.0±0.1 | 1.7:1 | ≦20.0 | 2.5±0.15 | 25m/spool |
| MJ-HST-S-40.0 | 40.0 | 1.0±0.1 |
1.7:1 |
≦25.0 | 2.5±0.15 | 25m/spool |
| ********* |
|
|
|
|
|
|
Application
Silicone heat shrinkable tubing widely used in electronic components, instrumentation, lighting, electrical appliances, petroleum metallurgy and other industries,
1.Suitable for medical apparatus that require sterillization treatment
2.Heating element installation and electrical wiring terminal insulation
3.Fiber optic bundle sheathing
4.Aviation and rocketry support cable protection
