PET High Anti-abrasion Expandablr Braided Sleeving
Abrasion-resistant sleeve braided of 0.25mm,0.28mm or 0.30mm thick special high abrasion resistant pet monofilament.

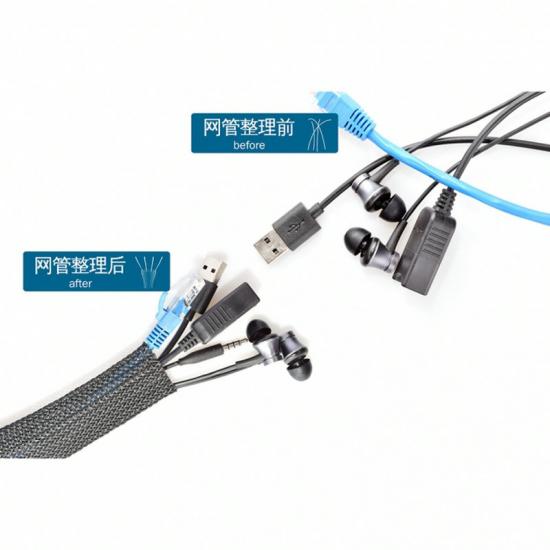

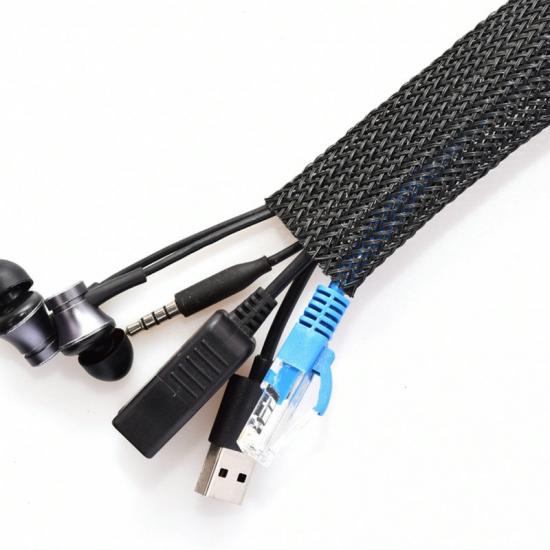

It has an abrasion resistance 300% more than standard polyester expandable sleeving. It provides exceptional mechanical protection with highly flexible and excellent abrasion resistance, it is easy to slip on a bundle of cables.
Feactures and benefits
1.Made of pet monofilament
2.Flame retardant
3.Extremely lightweight and flexible
4.UV resistant

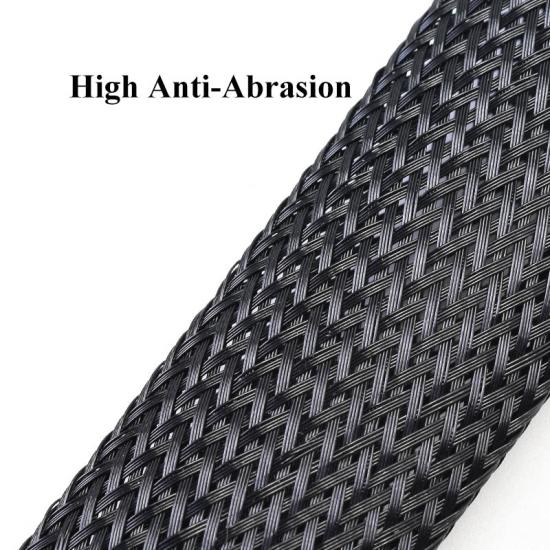

5.300% higher abrasion resistant than standard sleeve

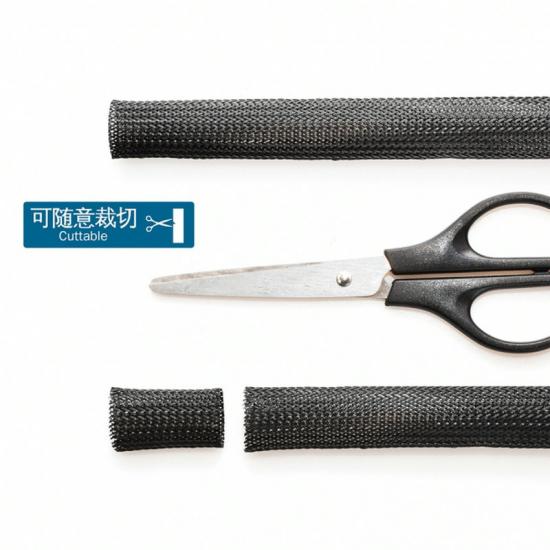

6.Economical & easy to install
7.Resists gasoline, chemicals & cleaning Solvents

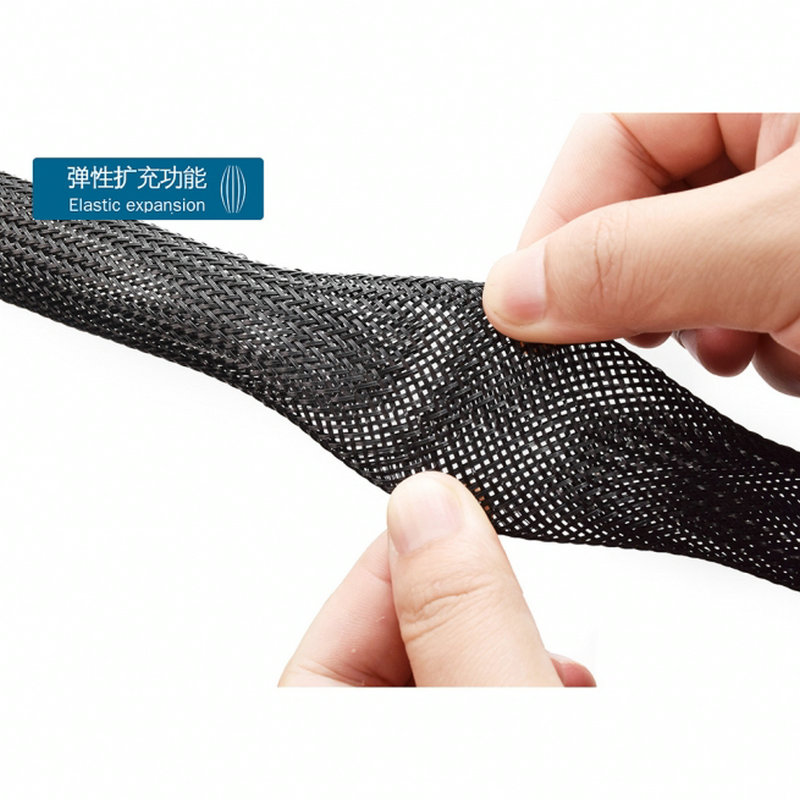

8.Expands Up to 150% of Initial Diameter
Certifications
Specfication
| Part No | Size(flat width) | Expansion Range | Packing | ||
| inch | mm | Min(I) | Max(O) | Length | |
| BRS-PET-003-BK-HA | 1/8" | 3 | 1 | 6 | 1000m/spool |
| BRS-PET-003-BK-HA | 1/4" | 6 | 3 | 9 | 500m/spool |
| BRS-PET-003-BK-HA | 5/16" | 8 | 5 | 12 | 350m/spool |
| BRS-PET-003-BK-HA | 3/8" | 10 | 7 | 17 | 350m/spool |
| BRS-PET-003-BK-HA | 1/2" | 12 | 8 | 20 | 300m/spool |
| BRS-PET-003-BK-HA | 5/8" | 16 | 10 | 27 | 250m/spool |
| BRS-PET-003-BK-HA | 3/4" | 19 | 14 | 30 | 200m/spool |
| BRS-PET-003-BK-HA | 1" | 25 | 18 | 33 | 200m/spool |
| BRS-PET-003-BK-HA | 1-1/4" | 32 | 20 | 50 | 150m/spool |
| BRS-PET-003-BK-HA | 1-1/2" | 38 | 30 | 60 | 100m/spool |
| BRS-PET-003-BK-HA | 1-3/4" | 45 | 35 | 75 | 100m/spool |
| BRS-PET-003-BK-HA | 2" | 50 | 40 | 80 | 100m/spool |
| BRS-PET-003-BK-HA | 2-1/2" | 64 | 45 | 105 | 100m/spool |
| BRS-PET-003-BK-HA | 3" | 76 | 64 | 120 | 100m/spool |
Application
PET anti-abrasion sleeve widely used for rubber hose, railway, underground, wire bundles, it can be used to protect lines on forklifts, welding machines, and hydraulic lines on heavy equipments also.
