Polyethylene Spiral Cable Zip Up Management Wrap
The E-FLEX® Zip up Spiral Wrap is a high-efficiency cable management system engineered for rapid bundling and long-term protection. Manufactured from premium, flexible Polyethylene (PE), this spiral-cut sleeve is designed for use with a specialized Manual Clip Tool (Insertion Tool). This system allows operators to encapsulate multiple cables in a single, continuous motion, significantly reducing assembly time while providing robust mechanical shielding and a professional, organized finish.
What's Special about Spiral Wire Wrap?

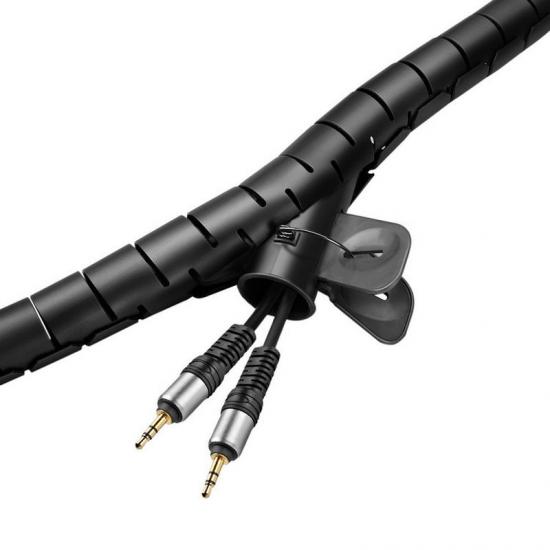

- Rapid Slide-On Installation: Using the provided insertion tool, the band can be applied instantly along the cable run. This eliminates the need for manual winding, cutting labor costs for large-scale installations.
- High Flexibility & Memory: Engineered from high-grade PE, the band maintains excellent elastic memory and tensile strength, ensuring a tight grip on bundles even in dynamic or high-vibration environments.
- Seamless Branching: The spiral split structure allows individual wires or sub-bundles to exit the main run at any point, offering total layout customization for complex wiring systems.
- Certified Safety & Compliance: Fully RoHS and REACH compliant. The halogen-free material is non-toxic, and the smooth-edge finish prevents friction damage to sensitive cable jackets.
- Reusable & Maintenance-Friendly: The band can be easily removed and re-applied for maintenance or system upgrades without losing its structural integrity or protective qualities.
Physical Properties
| Material |
PE |
| Working Temperature |
-40°C~80°C |
|

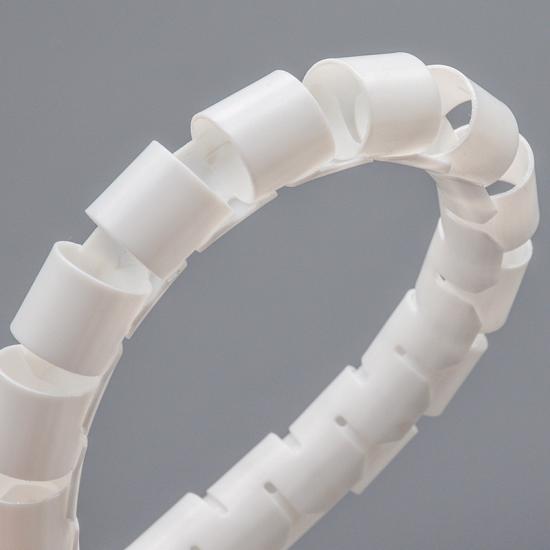

Structure |
Spiral Split Design |

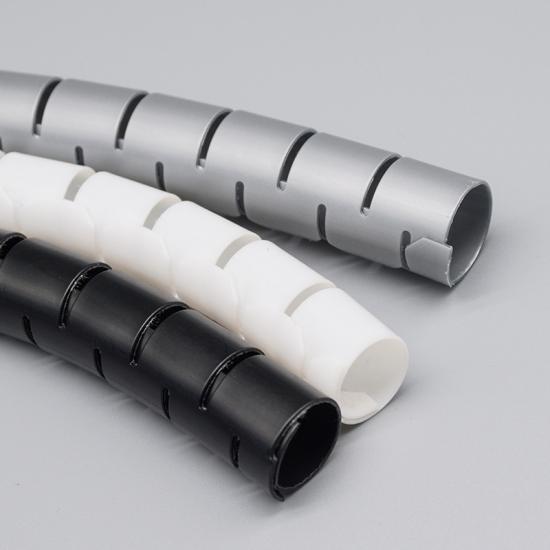

| Standard Color | Black,Grey,White |
| Rohs Compliant | Yes |
| Reach Compliant | Yes |

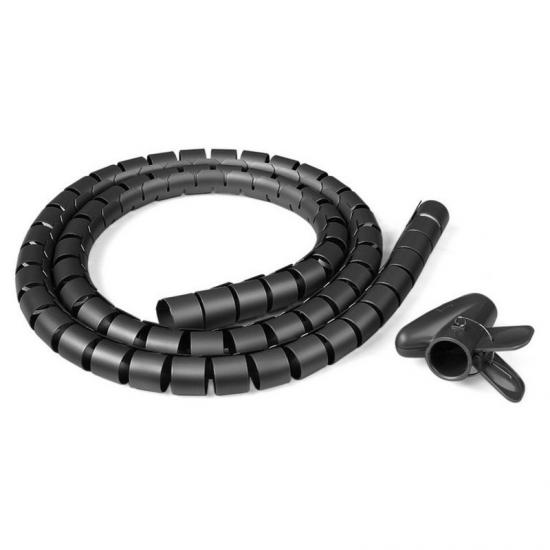

| Packing | Roll with Clip Tool |
Specification
Part No
Nominal Size D(mm)
Spread Width W(mm)
Bundle Dia Range(mm)
Packing Length (m/spool)
SW-PE-ZIP-008
8
29
7~9
100
SW-PE-ZIP-010
10
40
9~12
100
SW-PE-ZIP-016
16
51
13~16
100
SW-PE-ZIP-022
22
71
17~22
50
SW-PE-ZIP-028
28
88
23~28
50
SW-PE-ZIP-032
32
100
28~32
50
SW-PE-ZIP-042
42
129
36~42
20
Application

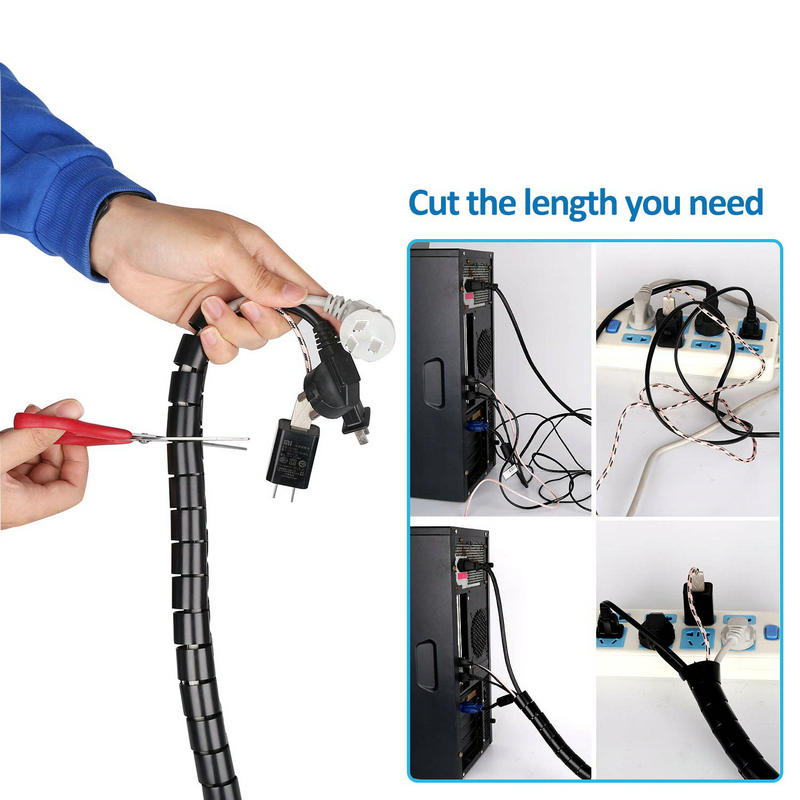

Spiral cable management wrap created easy, fast and effective cable management for your cables and wires,offer you a clean,neat and tidy surrounding,extend your cable life and profetct cable from damage.

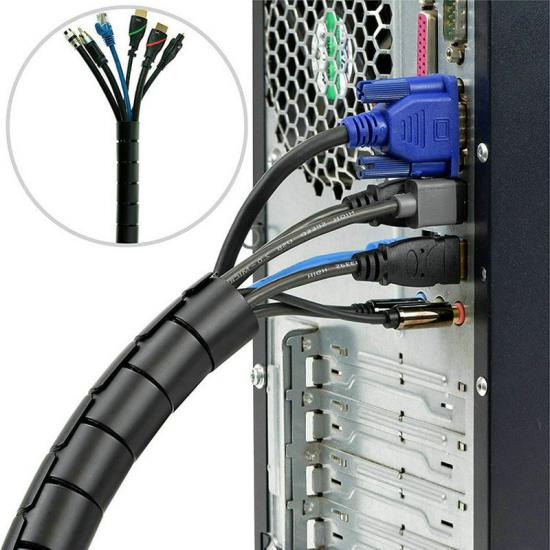

Spiral wire wrap ideal for managing computer cable,power cords,TV wires,USB cords,car cable,audio cables,or other mechanical equipment.
