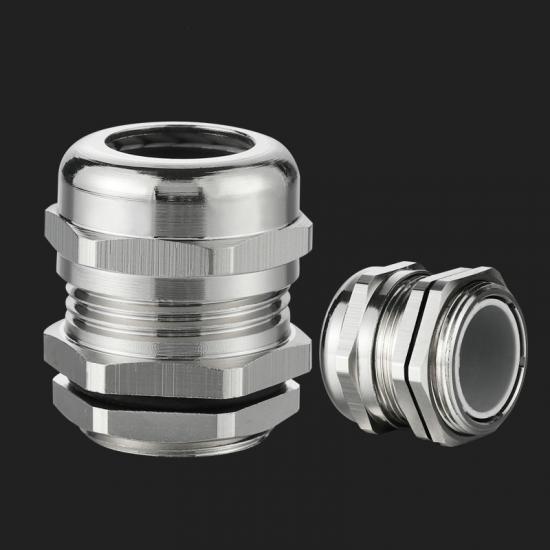

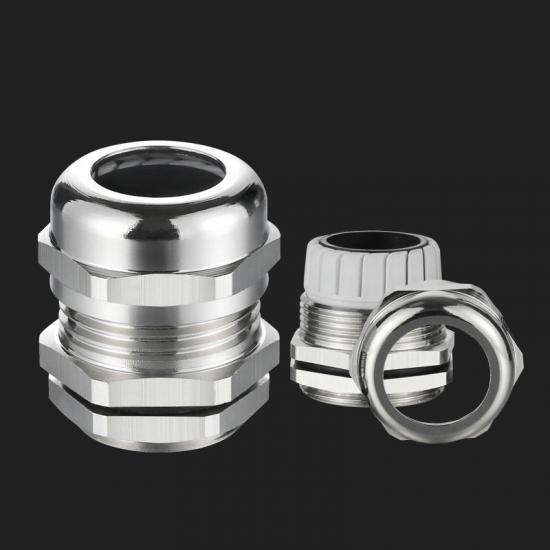

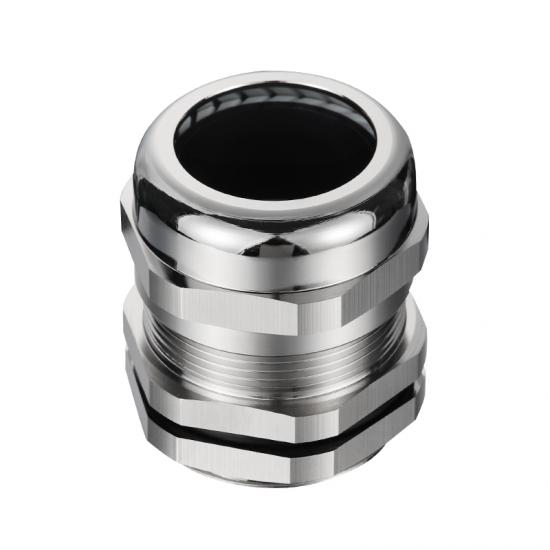

Flexible PG Nickel Plated Brass Cable Gland
Nickel plated brass cable gland special design of the clamping die and rubber part, wide clamping range, strong stretching resistance, no damage to cables and devices.

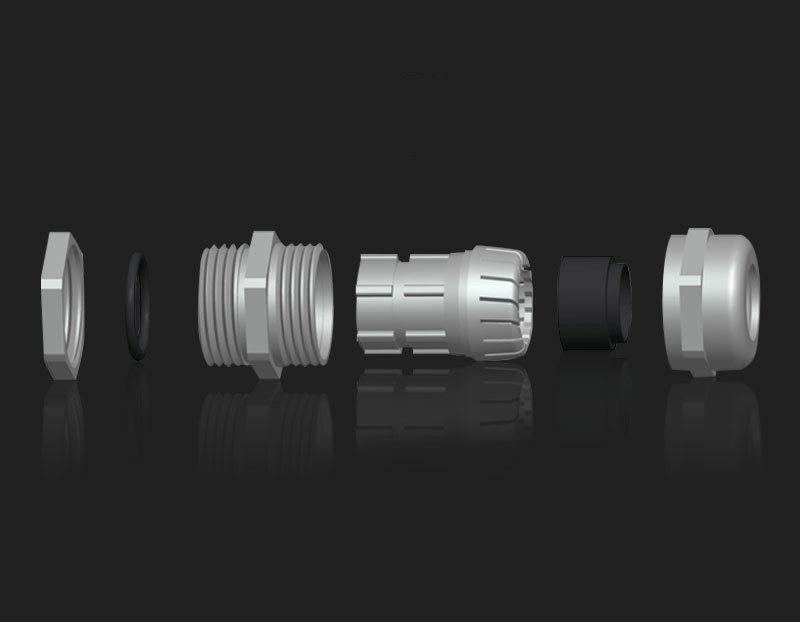

Lock nut, main body and sealing nut are made of durable brass nickel plated material ,seal and washer are made of nitrile butadiene rubber(NBR).

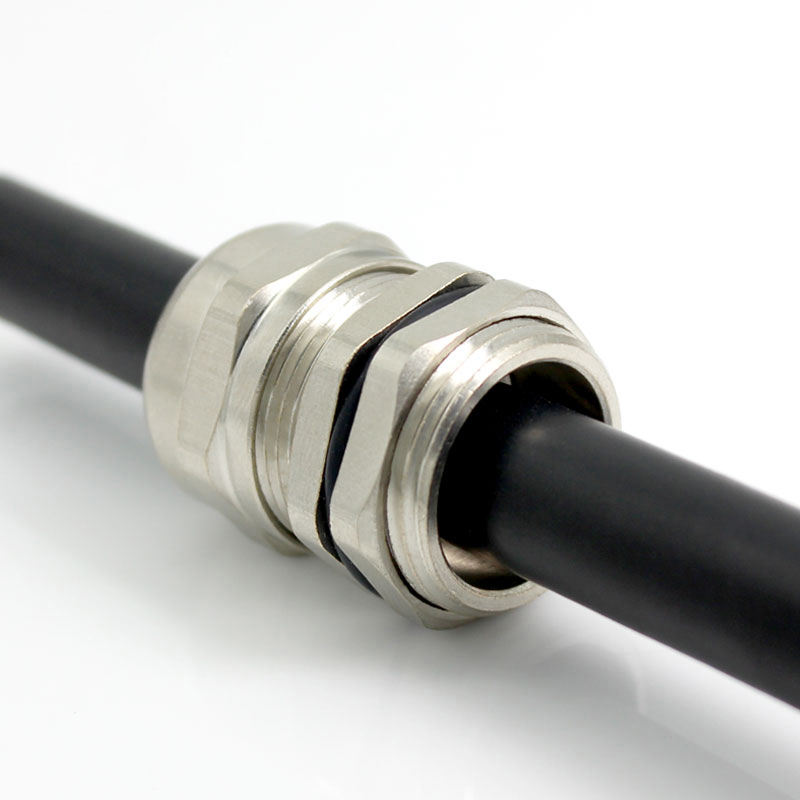

Metal cable gland without disassembly, cable can be inserted through directly then tighten easily and save time,it is used to secure cables and is waterproof in design,suitable for mechanical control box, distributor, electrical appliances, machinery and so on.
What's special about Brass Wire Joint Connectors?
1.Made of brass,nickel plated
2.IP68 waterproof rating
3.Flame retardant
4.Resistant against light acids and soft lyes
5.Resistant against seawater, benzine and mineral oil

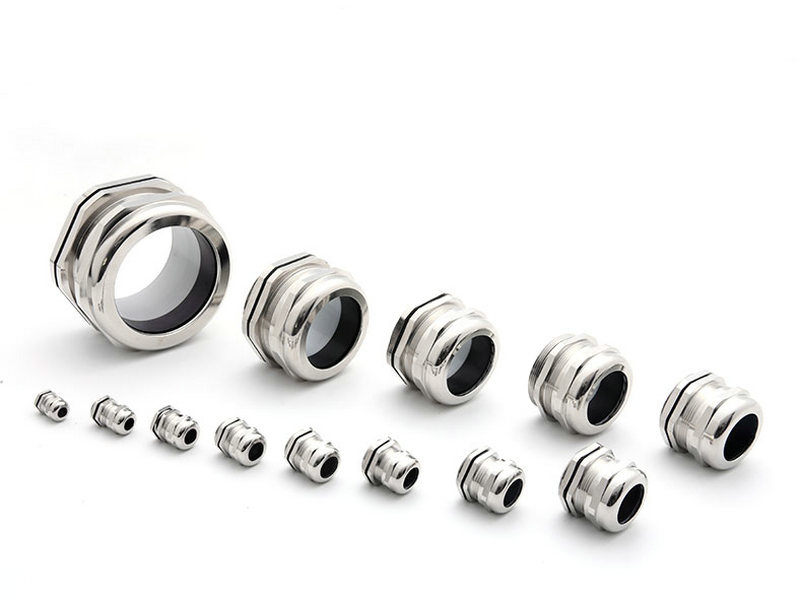

6.A variety of models to choose
Physical Properties
| Material | Brass nickel plated+NBR |
| Working Temperature |
-40℃~100℃ |
| Tread Style | PG Style |
| Available Model |
M Series, PG Series, NPT Series |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |
| Standard Color | Nickel plated |
| Certification | UL,ROHS,Reach |
Specification
| Model |
Thread |
Cable Range Φ(mm) |
Thread O.D AG(mm) |
Thread Length GL(mm) |
Spanner Size A&F(mm) |
| PG7-M | PG7 | 3~6.5 | 12.5 | 6 | 14 |
|
PG7-M |
PG7 | 2~5 | 12.5 | 6 | 14 |
| PG9-M | PG9 | 4~8 | 15.2 | 7 | 18 |
| PG9-M | PG9 | 2~6 | 15.2 | 7 | 18 |
| PG11-M | PG11 |
5~10 |
18.6 | 7 | 20 |
| PG11-M | PG11 |
3~7 |
18.6 | 7 | 20 |
| PG13.5-M | PG13.5 | 6~12 | 20.4 |
7.5 |
22 |
| PG13.5-M | PG13.5 |
5~9 |
20.4 |
7.5 |
22 |
| PG16-M | PG16 |
10~14 |
22.5 | 7.5 | 24 |
| PG16-M | PG16 |
6~12 |
22.5 | 7.5 | 24 |
| PG21-M | PG21 | 13~18 | 28.3 | 8 | 30 |
| PG21-M | PG21 | 9~16 | 29.3 | 8 | 30 |
| PG29-M |
PG29 |
18~25 |
37 | 9 | 40 |
| PG29-M |
PG29 |
13~20 | 37 | 9 | 40 |
| PG36-M |
PG36 |
22~33 |
47 | 9 | 50 |
|
PG36-M |
PG36 |
20~26 | 47 | 9 | 50 |
| PG42-M |
PG42 |
32~38 |
54 | 10 | 57 |
|
PG42-M |
PG42 |
25~31 |
54 | 10 | 57 |
| PG48-M |
PG48 |
37~44 | 59.3 | 11 | 64 |
|
PG48-M |
PG48 |
29~35 | 59.3 | 11 | 64 |
Application
Copper cable gland use for cable fixing, wiring, mechanical control box, switchboard, electrical appliances, etc.
