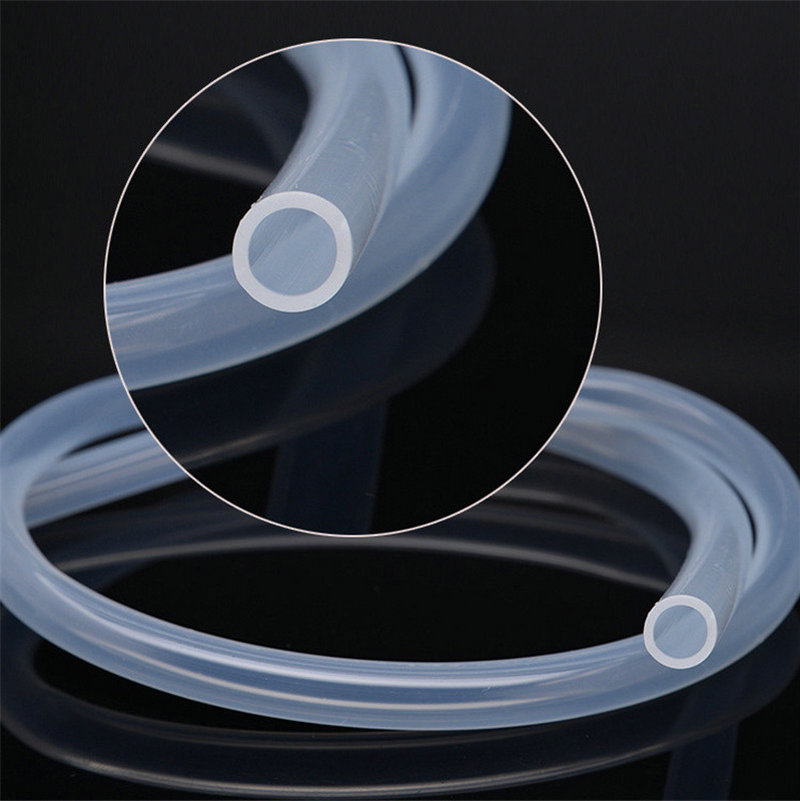

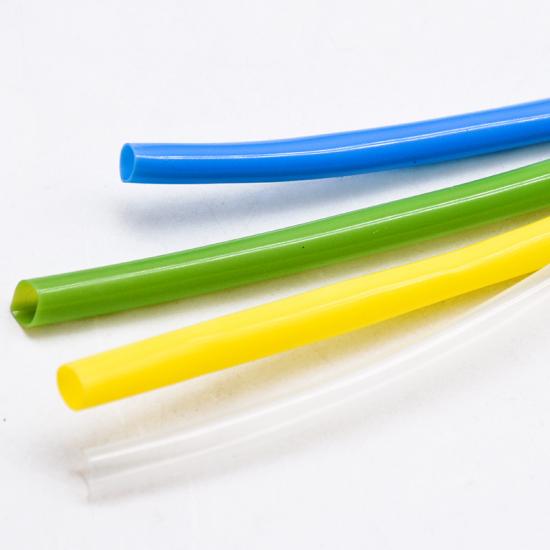

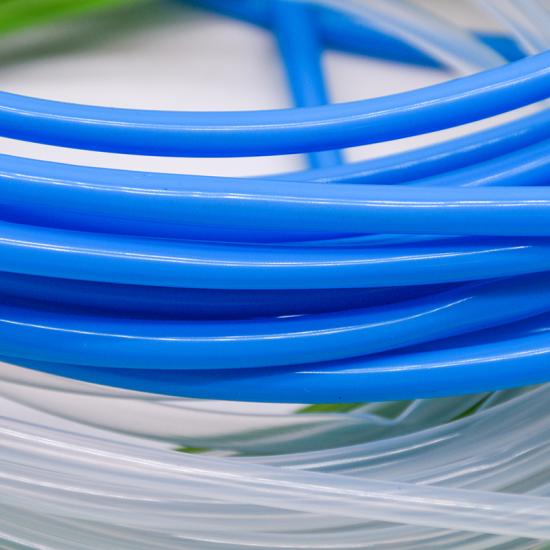

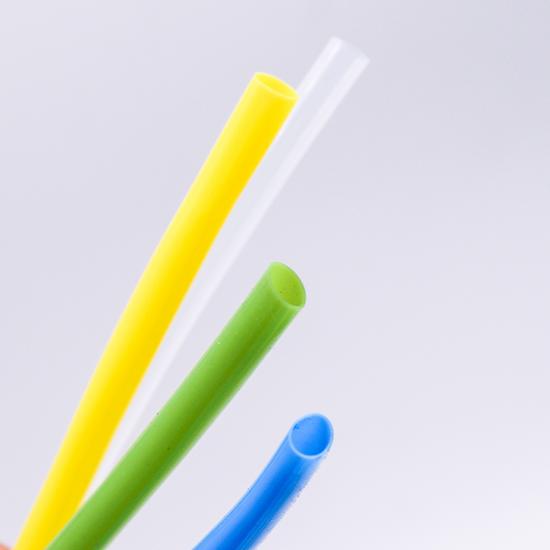

High Temperature Flexible Silicone Rubber Tubing
High temp silicone tubing made of environmentally non-toxic silicone material, which is lead free; food safe, medical safe. This extremely flexible, food grade silicone is suited for the conveyance of chemicals, liquids, gases, and solids.
It can be works from-40℃ to 200℃, and with steady performance under mashing, boil temps, boiling wort, hot water, etc.
Silicone tubing are UV resistant, gases and moisture resistant. Does not deteriorate outdoors. Extremely durable.

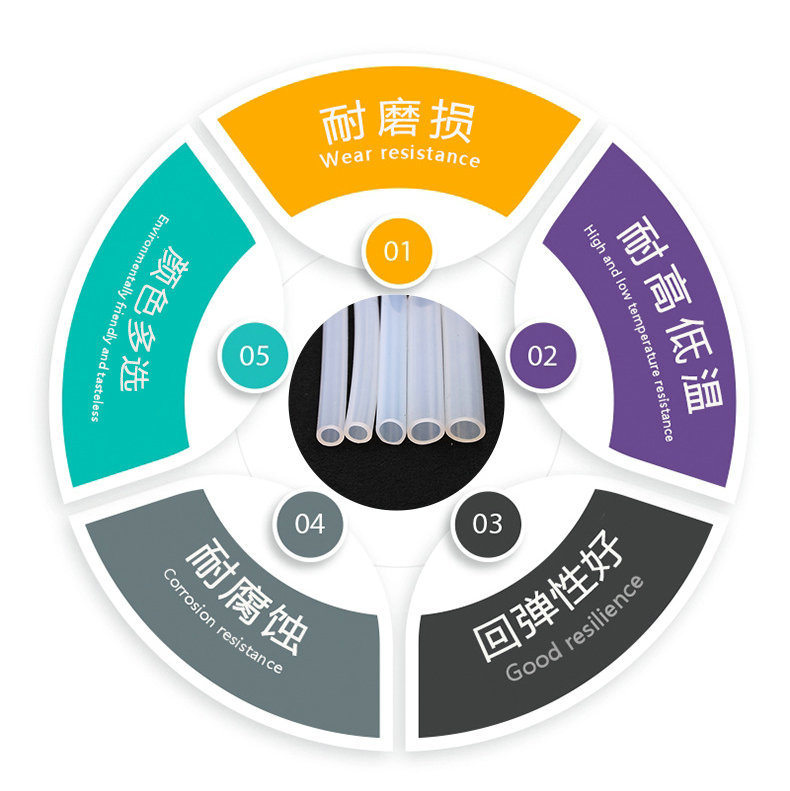

Feactures and benefits

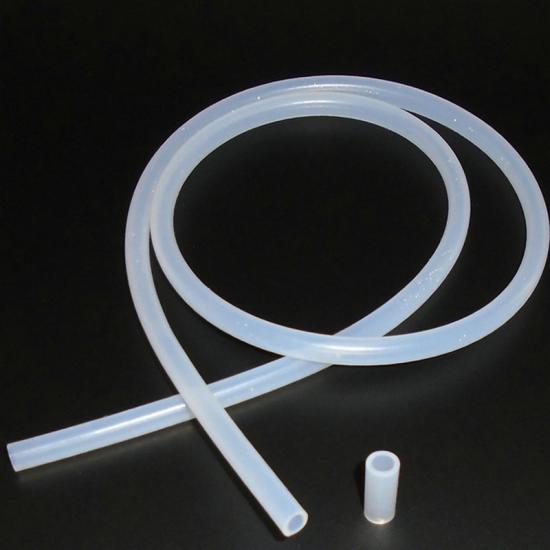

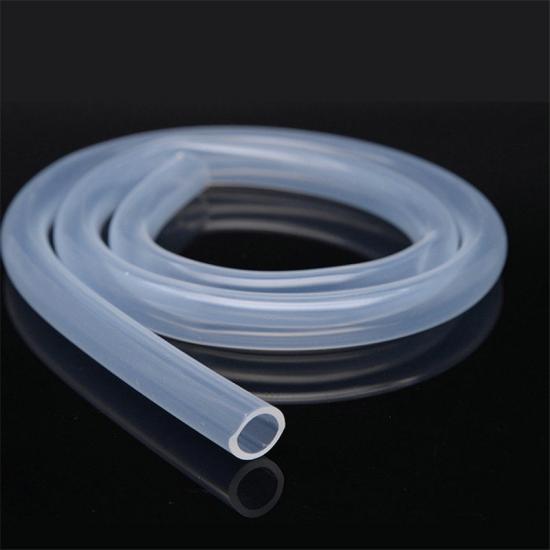

1) The clear silicone construction allows you to see through the flow of liquids inside.
2) Food Grade, lead free; food safe, medical safe.
3) Silicone is UV resistant; it does not age and deteriorate outdoors.
4) This tubing is notable for its resistance to temperature extremes.
5) Resistant to acids, alkalis and manysolvents.
Physical Properties
Material
Silicone rubber
Working temperature
-40℃ to 200℃
Voltage
2.5kv,4.0kv,6.0kv,7.0kv

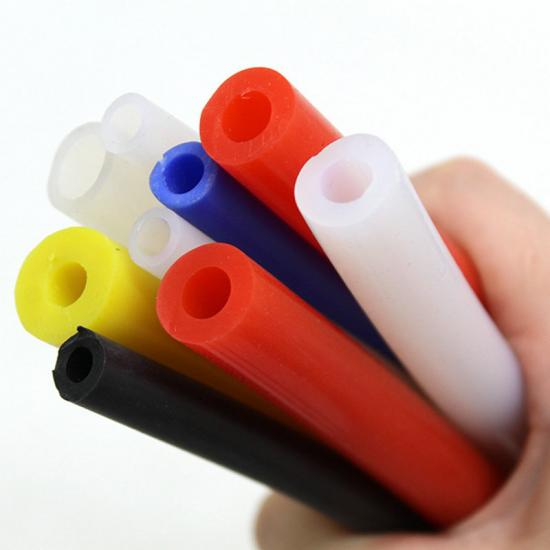

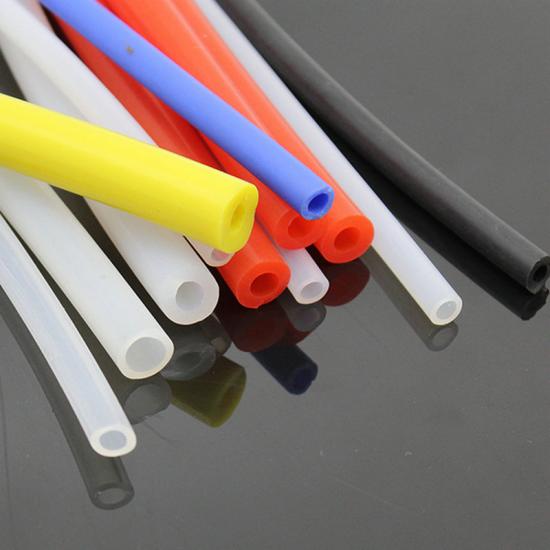

Standard color
Clear

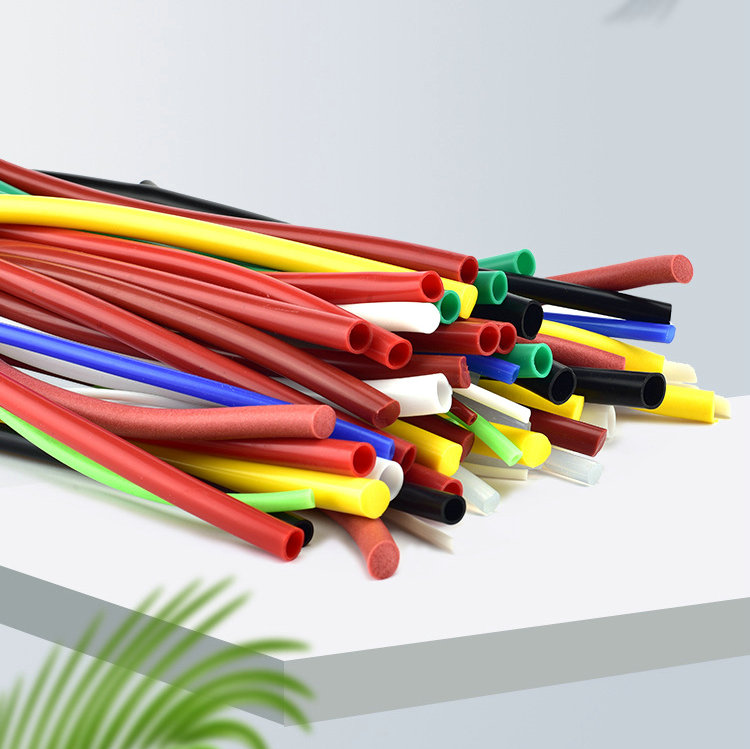

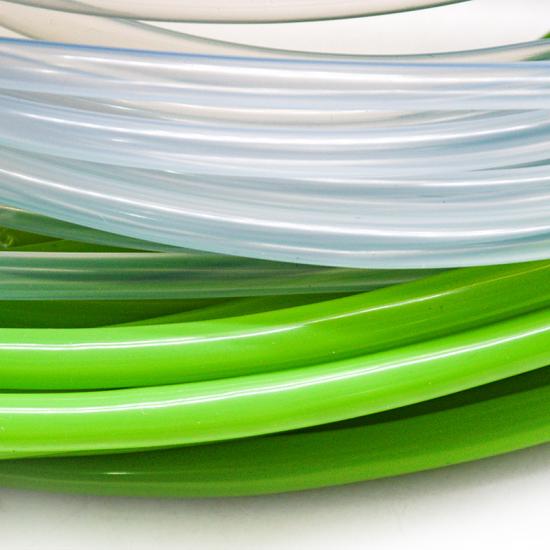

Colors
Available
Size range
0.8mm ID~20mm ID
Custom size
Available
Specification
Size(ID
(mm)
Part No
Thickness(mm)
Packing Length
2500V
4000V
6000V
7000V
MJ-SRT0.80
0.80
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT1.00
1.00
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT1.50
1.50
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT2.00
2.00
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT2.50
2.50
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT3.00
3.00
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT3.50
3.50
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT4.00
4.00
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT4.50
4.50
0.5
1.0
1.5
2.0
200m/spool
MJ-SRT5.00
5.00
0.5
1.0
1.5
2.0
50m/spool
MJ-SRT5.50
5.50
0.5
1.0
1.5
2.0
50m/spool
MJ-SRT6.00
6.00
0.5
1.0
1.5
2.0
50m/spool
MJ-SRT7.00
7.00
1.0
1.5
2.0
50m/spool
MJ-SRT8.00
8.00
1.0
1.5
2.0
50m/spool
MJ-SRT9.00
9.00
1.0
1.5
2.0
50m/spool
MJ-SRT10.0
10.0
1.0
1.5
2.0
50m/spool
MJ-SRT12.0
12.0
1.0
1.5
2.0
25m/spool
MJ-SRT14.0
14.0
1.5
2.0
25m/spool
MJ-SRT15.0
15.0
1.5
2.0
25m/spool
MJ-SRT20.0
20.0
2.0
10m/spool
Application
Food grade silicone tubing is suited for general low pressure industrial applications for the conveyance of chemicals, liquids, gases, and solids of suitable granular size, such as factory air lines automation machinery and pneumatic lines.
It popular used for pumps, shiphons, filters, AC and HVAC tubing, drain valve connections, filters, plumbing, drip irrigation, ponds and gardens, beer brewing, wine making, etc.
